Chiaravalli

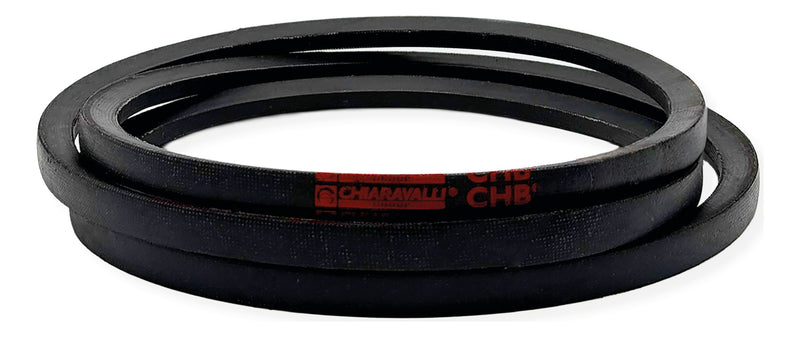

CHB® Wrapped Narrow Section V-Belt SPC
Wrapped narrow section CHB® V-belt — the strength of a wrapped construction with the compactness of a narrow section: more power in a given space than a classical belt, oil and heat resistant, recommended for high-speed drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.
- Section SPC: width W 22 mm × height H 18 mm
- Minimum datum pulley diameter: 224 mm
- Weight: 0,354 kg/m
- Maximum belt speed: 42 m/s
- Section standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
Product Configuration
Select a row to add it to your quote
Lp = datum length. Inside length Li = Lp − 83 mm, external length Le = Lp + 30 mm.
| Code | Type | Lp |
|---|---|---|
851802000 |
SPC 2000
|
2000 mm
|
851802120 |
SPC 2120
|
2120 mm
|
851802240 |
SPC 2240
|
2240 mm
|
851802360 |
SPC 2360
|
2360 mm
|
851802500 |
SPC 2500
|
2500 mm
|
851802600 |
SPC 2600
|
2600 mm
|
851802650 |
SPC 2650
|
2650 mm
|
851802800 |
SPC 2800
|
2800 mm
|
851803000 |
SPC 3000
|
3000 mm
|
851803150 |
SPC 3150
|
3150 mm
|
851803350 |
SPC 3350
|
3350 mm
|
851803550 |
SPC 3550
|
3550 mm
|
851803600 |
SPC 3600
|
3600 mm
|
851803750 |
SPC 3750
|
3750 mm
|
851804000 |
SPC 4000
|
4000 mm
|
851804250 |
SPC 4250
|
4250 mm
|
851804380 |
SPC 4380
|
4380 mm
|
851804500 |
SPC 4500
|
4500 mm
|
851804750 |
SPC 4750
|
4750 mm
|
851805000 |
SPC 5000
|
5000 mm
|
851805300 |
SPC 5300
|
5300 mm
|
851805600 |
SPC 5600
|
5600 mm
|
851805800 |
SPC 5800
|
5800 mm
|
851806000 |
SPC 6000
|
6000 mm
|
851806300 |
SPC 6300
|
6300 mm
|
851806700 |
SPC 6700
|
6700 mm
|
851807100 |
SPC 7100
|
7100 mm
|
851807500 |
SPC 7500
|
7500 mm
|
851808000 |
SPC 8000
|
8000 mm
|
851808500 |
SPC 8500
|
8500 mm
|
851809000 |
SPC 9000
|
9000 mm
|
851809500 |
SPC 9500
|
9500 mm
|
851810000 |
SPC 10000
|
10000 mm
|
851810600 |
SPC 10600
|
10600 mm
|
851811200 |
SPC 11200
|
11200 mm
|
851811800 |
SPC 11800
|
11800 mm
|
851812000 |
SPC 12000
|
12000 mm
|
851812250 |
SPC 12250
|
12250 mm
|
851812500 |
SPC 12500
|
12500 mm
|
No products match the selected filters.
Product Information
- Material
- Chloroprene rubber, polyester tensile cords, fabric cover
- Standard
ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
