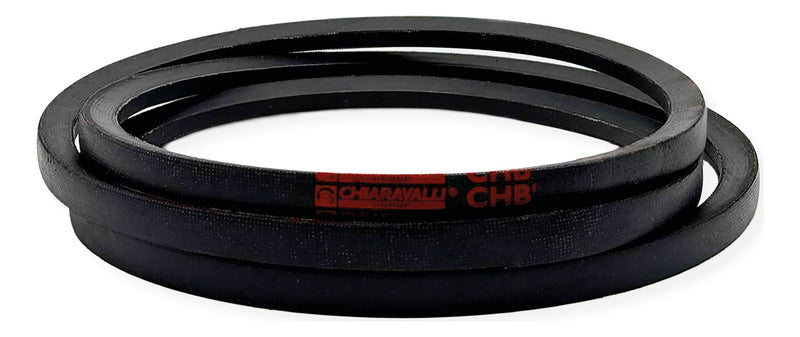

CHB® Wrapped Narrow Section V-Belt SPZ

Wrapped narrow section CHB® V-belt — the strength of a wrapped construction with the compactness of a narrow section: more power in a given space than a classical belt, oil and heat resistant, recommended for high-speed drives. Chloroprene rubber body, polyester tensile cords, oil-, heat- and dust-resistant fabric cover; static conductive (ISO 1813) for ATEX conditions; RoHS and REACH compliant.

Section SPZ: width W 9,7 mm × height H 8 mm
Minimum datum pulley diameter: 63 mm
Weight: 0,076 kg/m
Maximum belt speed: 42 m/s
Section standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22

Select a row to add it to your quote

Lp = datum length. Inside length Li = Lp − 37 mm, external length Le = Lp + 13 mm.

Code	Type	Lp
`851500562`	`SPZ 562`	`562` mm
`851500587`	`SPZ 587`	`587` mm
`851500600`	`SPZ 600`	`600` mm
`851500612`	`SPZ 612`	`612` mm
`851500630`	`SPZ 630`	`630` mm
`851500637`	`SPZ 637`	`637` mm
`851500662`	`SPZ 662`	`662` mm
`851500670`	`SPZ 670`	`670` mm
`851500687`	`SPZ 687`	`687` mm
`851500710`	`SPZ 710`	`710` mm
`851500722`	`SPZ 722`	`722` mm
`851500737`	`SPZ 737`	`737` mm
`851500750`	`SPZ 750`	`750` mm
`851500762`	`SPZ 762`	`762` mm
`851500772`	`SPZ 772`	`772` mm
`851500787`	`SPZ 787`	`787` mm
`851500800`	`SPZ 800`	`800` mm
`851500812`	`SPZ 812`	`812` mm
`851500825`	`SPZ 825`	`825` mm
`851500837`	`SPZ 837`	`837` mm
`851500850`	`SPZ 850`	`850` mm
`851500862`	`SPZ 862`	`862` mm
`851500875`	`SPZ 875`	`875` mm
`851500887`	`SPZ 887`	`887` mm
`851500900`	`SPZ 900`	`900` mm
`851500912`	`SPZ 912`	`912` mm
`851500925`	`SPZ 925`	`925` mm
`851500937`	`SPZ 937`	`937` mm
`851500950`	`SPZ 950`	`950` mm
`851500962`	`SPZ 962`	`962` mm
`851500975`	`SPZ 975`	`975` mm
`851500987`	`SPZ 987`	`987` mm
`851501000`	`SPZ 1000`	`1000` mm
`851501010`	`SPZ 1010`	`1010` mm
`851501012`	`SPZ 1012`	`1012` mm
`851501024`	`SPZ 1024`	`1024` mm
`851501030`	`SPZ 1030`	`1030` mm
`851501037`	`SPZ 1037`	`1037` mm
`851501047`	`SPZ 1047`	`1047` mm
`851501060`	`SPZ 1060`	`1060` mm
`851501077`	`SPZ 1077`	`1077` mm
`851501087`	`SPZ 1087`	`1087` mm
`851501112`	`SPZ 1112`	`1112` mm
`851501120`	`SPZ 1120`	`1120` mm
`851501137`	`SPZ 1137`	`1137` mm
`851501150`	`SPZ 1150`	`1150` mm
`851501162`	`SPZ 1162`	`1162` mm
`851501180`	`SPZ 1180`	`1180` mm
`851501187`	`SPZ 1187`	`1187` mm
`851501202`	`SPZ 1202`	`1202` mm
`851501212`	`SPZ 1212`	`1212` mm
`851501237`	`SPZ 1237`	`1237` mm
`851501250`	`SPZ 1250`	`1250` mm
`851501262`	`SPZ 1262`	`1262` mm
`851501270`	`SPZ 1270`	`1270` mm
`851501287`	`SPZ 1287`	`1287` mm
`851501300`	`SPZ 1300`	`1300` mm
`851501312`	`SPZ 1312`	`1312` mm
`851501320`	`SPZ 1320`	`1320` mm
`851501337`	`SPZ 1337`	`1337` mm
`851501347`	`SPZ 1347`	`1347` mm
`851501362`	`SPZ 1362`	`1362` mm
`851501387`	`SPZ 1387`	`1387` mm
`851501400`	`SPZ 1400`	`1400` mm
`851501412`	`SPZ 1412`	`1412` mm
`851501420`	`SPZ 1420`	`1420` mm
`851501437`	`SPZ 1437`	`1437` mm
`851501450`	`SPZ 1450`	`1450` mm
`851501462`	`SPZ 1462`	`1462` mm
`851501487`	`SPZ 1487`	`1487` mm
`851501500`	`SPZ 1500`	`1500` mm
`851501512`	`SPZ 1512`	`1512` mm
`851501520`	`SPZ 1520`	`1520` mm
`851501537`	`SPZ 1537`	`1537` mm
`851501550`	`SPZ 1550`	`1550` mm
`851501562`	`SPZ 1562`	`1562` mm
`851501587`	`SPZ 1587`	`1587` mm
`851501600`	`SPZ 1600`	`1600` mm
`851501612`	`SPZ 1612`	`1612` mm
`851501620`	`SPZ 1620`	`1620` mm
`851501637`	`SPZ 1637`	`1637` mm
`851501650`	`SPZ 1650`	`1650` mm
`851501662`	`SPZ 1662`	`1662` mm
`851501687`	`SPZ 1687`	`1687` mm
`851501700`	`SPZ 1700`	`1700` mm
`851501737`	`SPZ 1737`	`1737` mm
`851501750`	`SPZ 1750`	`1750` mm
`851501762`	`SPZ 1762`	`1762` mm
`851501787`	`SPZ 1787`	`1787` mm
`851501800`	`SPZ 1800`	`1800` mm
`851501812`	`SPZ 1812`	`1812` mm
`851501837`	`SPZ 1837`	`1837` mm
`851501850`	`SPZ 1850`	`1850` mm
`851501862`	`SPZ 1862`	`1862` mm
`851501887`	`SPZ 1887`	`1887` mm
`851501900`	`SPZ 1900`	`1900` mm
`851501937`	`SPZ 1937`	`1937` mm
`851501950`	`SPZ 1950`	`1950` mm
`851501987`	`SPZ 1987`	`1987` mm
`851502000`	`SPZ 2000`	`2000` mm
`851502030`	`SPZ 2030`	`2030` mm
`851502037`	`SPZ 2037`	`2037` mm
`851502060`	`SPZ 2060`	`2060` mm
`851502120`	`SPZ 2120`	`2120` mm
`851502137`	`SPZ 2137`	`2137` mm
`851502180`	`SPZ 2180`	`2180` mm
`851502187`	`SPZ 2187`	`2187` mm
`851502240`	`SPZ 2240`	`2240` mm
`851502287`	`SPZ 2287`	`2287` mm
`851502300`	`SPZ 2300`	`2300` mm
`851502360`	`SPZ 2360`	`2360` mm
`851502437`	`SPZ 2437`	`2437` mm
`851502500`	`SPZ 2500`	`2500` mm
`851502650`	`SPZ 2650`	`2650` mm
`851502800`	`SPZ 2800`	`2800` mm
`851503000`	`SPZ 3000`	`3000` mm
`851503150`	`SPZ 3150`	`3150` mm
`851503350`	`SPZ 3350`	`3350` mm
`851503550`	`SPZ 3550`	`3550` mm

Material: Chloroprene rubber, polyester tensile cords, fabric cover
Standard: ISO 4184, BS 3790, DIN 7753/1, RMA/MPTA IP-22
