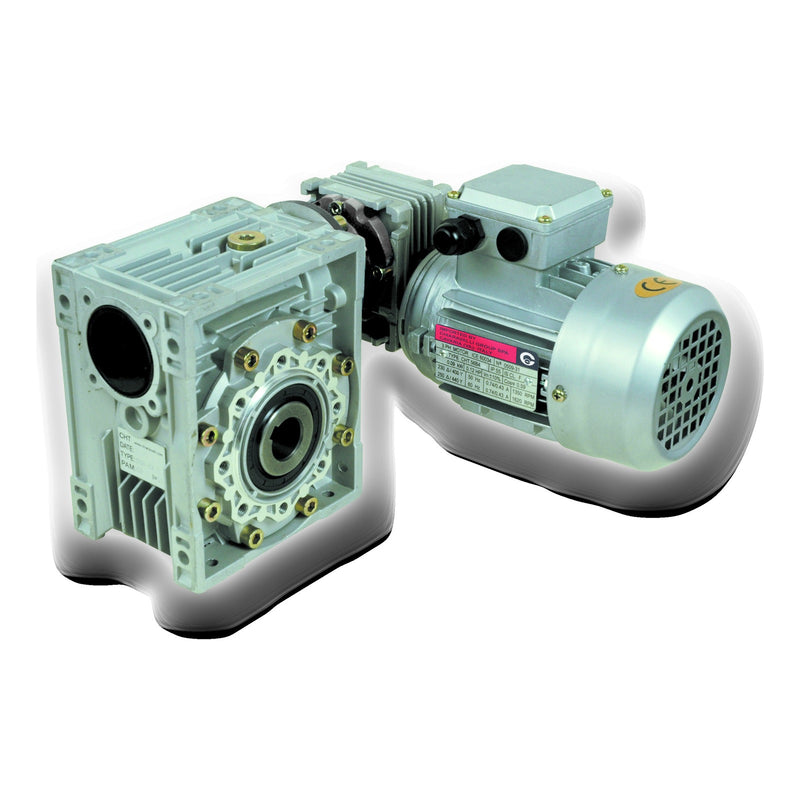

Chiaravalli CHM/CHM double worm gearbox with motor
Chiaravalli

CHM 030/063 Double Worm Gearbox (ratios 300–2400:1)

Worm Gearboxes

Two CHM worm gearboxes combined — a CHM 030 driving a CHM 063 — for total ratios 300–2400:1 and output speeds down to 0.6 r/min. Aluminium housings, hollow output shaft with 25 mm bore, keyed; optional output flanges as the CHM 063. The motor bolts to the CHM 030's IEC flange (IEC 56 or 63). The execution (OAD, OAS, OBD, OBS, VAD, VAS, VBD, VBS) sets where the first gear sits on the second — OBS unless you specify otherwise; the mounting position refers to the second gear. Supplied in the universal position — it can be mounted in any orientation. Filled for life with synthetic oil — no oil changes, no maintenance.

Supplied without motor. The first gear can also be ordered as a CHMR (input shaft) and the second as a CHME (free input shaft end) — ask us.

How to pick from the table: with a standard 4-pole motor (1400 r/min) the total ratio sets the output speed; P1 is the motor power the catalogue pairs with the row and the output torque is at that power. Where the printed power is more than the gear allows (row note), choose by torque. Other ratio combinations of the two single gears are possible on request.

Product Configuration

Select a row to add it to your quote

CHM 030/063: 4-pole motor at 1400 r/min on the CHM 030; execution OBS unless specified.

CodeRatioMotor flangeMotor P1Output speedOutput torque Weight
CHM-030/063 R.300 56F9 300:1 IEC 56 · 9 mm shaft 0.22 kW 4.7 r/min 210 Nm 7.8 kg
CHM-030/063 R.300 63F11 300:1 IEC 63 · 11 mm shaft 0.22 kW 4.7 r/min 210 Nm 7.8 kg
CHM-030/063 R.400 56F9 400:1 IEC 56 · 9 mm shaft 0.18 kW 3.5 r/min 222 Nm 7.8 kg
CHM-030/063 R.400 63F11 400:1 IEC 63 · 11 mm shaft 0.18 kW 3.5 r/min 222 Nm 7.8 kg
CHM-030/063 R.500 56F9 500:1 IEC 56 · 9 mm shaft 0.18 kW 2.8 r/min 205 Nm 7.8 kg
CHM-030/063 R.500 63F11 500:1 IEC 63 · 11 mm shaft 0.18 kW 2.8 r/min 205 Nm 7.8 kg
CHM-030/063 R.600 56F9 600:1 IEC 56 · 9 mm shaft 0.18 kW 2.3 r/min 208 Nm 7.8 kg
CHM-030/063 R.600 63F11 600:1 IEC 63 · 11 mm shaft 0.18 kW 2.3 r/min 208 Nm 7.8 kg
CHM-030/063 R.750 56F9 750:1 IEC 56 · 9 mm shaft 0.18 kW 1.9 r/min 216 Nm 7.8 kg
CHM-030/063 R.750 63F11 750:1 IEC 63 · 11 mm shaft 0.18 kW 1.9 r/min 216 Nm 7.8 kg
CHM-030/063 R.900 56F9 900:1 IEC 56 · 9 mm shaft 0.09 kW 1.6 r/min 200 Nm 7.8 kg
CHM-030/063 R.900 63F11 900:1 IEC 63 · 11 mm shaft 0.09 kW 1.6 r/min 200 Nm 7.8 kg
CHM-030/063 R.1200 56F9 1200:1 IEC 56 · 9 mm shaft 0.09 kW 1.2 r/min 236 Nm 7.8 kg
CHM-030/063 R.1200 63F11 1200:1 IEC 63 · 11 mm shaft 0.09 kW 1.2 r/min 236 Nm 7.8 kg
CHM-030/063 R.1500 56F9 1500:1 IEC 56 · 9 mm shaft 0.09 kW 0.9 r/min 204 Nm 7.8 kg
CHM-030/063 R.1500 63F11 1500:1 IEC 63 · 11 mm shaft 0.09 kW 0.9 r/min 204 Nm 7.8 kg
CHM-030/063 R.1800 56F9 1800:1 IEC 56 · 9 mm shaft 0.09 kW 0.8 r/min 202 Nm 7.8 kg
CHM-030/063 R.1800 63F11 1800:1 IEC 63 · 11 mm shaft 0.09 kW 0.8 r/min 202 Nm 7.8 kg
CHM-030/063 R.2400 56F9 2400:1 IEC 56 · 9 mm shaft 0.09 kW 0.6 r/min 220 Nm 7.8 kg
CHM-030/063 R.2400 63F11 2400:1 IEC 63 · 11 mm shaft 0.09 kW 0.6 r/min 220 Nm 7.8 kg

Product Information

Motor pole count

All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.

Reading the table

Each row is one total ratio: output speed at 1400 r/min in, the catalogue's motor power P1 and the output torque at that power. The ratios listed are the most frequently requested; multiple other combinations of the two single gears' ratios can be made.
