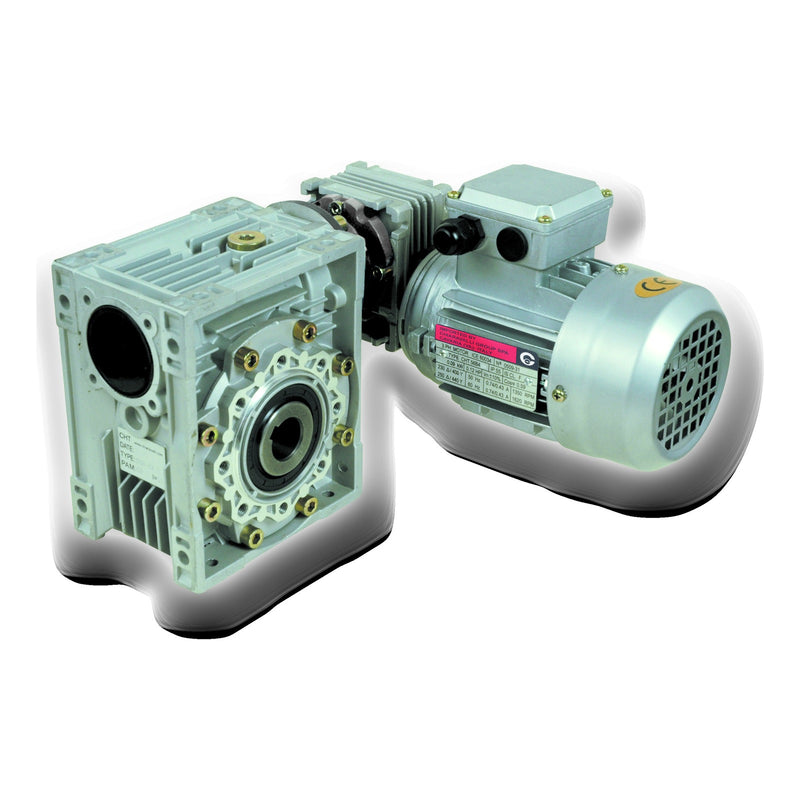

CHM 040/090 Double Worm Gearbox (ratios 300–2400:1)
Two CHM worm gearboxes combined — a CHM 040 driving a CHM 090 — for total ratios 300–2400:1 and output speeds down to 0.6 r/min. Aluminium housings, hollow output shaft with 35 mm bore, keyed; optional output flanges as the CHM 090. The motor bolts to the CHM 040's IEC flange (IEC 56 or 63 or 71). The execution (OAD, OAS, OBD, OBS, VAD, VAS, VBD, VBS) sets where the first gear sits on the second — OBS unless you specify otherwise; the mounting position refers to the second gear. Supplied for the B3 mounting position — tell us if you need a different orientation (see the mounting-position drawing). Filled for life with synthetic oil — no oil changes, no maintenance.
Supplied without motor. The first gear can also be ordered as a CHMR (input shaft) and the second as a CHME (free input shaft end) — ask us.
How to pick from the table: with a standard 4-pole motor (1400 r/min) the total ratio sets the output speed; P1 is the motor power the catalogue pairs with the row and the output torque is at that power. Where the printed power is more than the gear allows (row note), choose by torque. Other ratio combinations of the two single gears are possible on request.
Product Configuration
Select a row to add it to your quote
CHM 040/090: 4-pole motor at 1400 r/min on the CHM 040; execution OBS unless specified.
| Code | Ratio | Motor flange | Motor P1 | Output speed | Output torque | Weight |
|---|---|---|---|---|---|---|
CHM-040/090 R.300 56F9 |
300:1
|
IEC 56 · 9 mm shaft
|
0.37 kW
|
4.7 r/min
|
405 Nm
|
15.0 kg
|
CHM-040/090 R.300 63F11 |
300:1
|
IEC 63 · 11 mm shaft
|
0.37 kW
|
4.7 r/min
|
405 Nm
|
15.0 kg
|
CHM-040/090 R.300 71F14 |
300:1
|
IEC 71 · 14 mm shaft
|
0.37 kW
|
4.7 r/min
|
405 Nm
|
15.0 kg
|
CHM-040/090 R.400 56F9 |
400:1
|
IEC 56 · 9 mm shaft
|
0.37 kW
|
3.5 r/min
|
523 Nm
|
15.0 kg
|
CHM-040/090 R.400 63F11 |
400:1
|
IEC 63 · 11 mm shaft
|
0.37 kW
|
3.5 r/min
|
523 Nm
|
15.0 kg
|
CHM-040/090 R.400 71F14 |
400:1
|
IEC 71 · 14 mm shaft
|
0.37 kW
|
3.5 r/min
|
523 Nm
|
15.0 kg
|
CHM-040/090 R.500 56F9 |
500:1
|
IEC 56 · 9 mm shaft
|
0.37 kW
|
2.8 r/min
|
550 Nm
|
15.0 kg
|
CHM-040/090 R.500 63F11 |
500:1
|
IEC 63 · 11 mm shaft
|
0.37 kW
|
2.8 r/min
|
550 Nm
|
15.0 kg
|
CHM-040/090 R.500 71F14 |
500:1
|
IEC 71 · 14 mm shaft
|
0.37 kW
|
2.8 r/min
|
550 Nm
|
15.0 kg
|
CHM-040/090 R.600 56F9 |
600:1
|
IEC 56 · 9 mm shaft
|
0.37 kW
|
2.3 r/min
|
605 Nm
|
15.0 kg
|
CHM-040/090 R.600 63F11 |
600:1
|
IEC 63 · 11 mm shaft
|
0.37 kW
|
2.3 r/min
|
605 Nm
|
15.0 kg
|
CHM-040/090 R.600 71F14 |
600:1
|
IEC 71 · 14 mm shaft
|
0.37 kW
|
2.3 r/min
|
605 Nm
|
15.0 kg
|
CHM-040/090 R.750 56F9 |
750:1
|
IEC 56 · 9 mm shaft
|
0.25 kW
|
1.9 r/min
|
538 Nm
|
15.0 kg
|
CHM-040/090 R.750 63F11 |
750:1
|
IEC 63 · 11 mm shaft
|
0.25 kW
|
1.9 r/min
|
538 Nm
|
15.0 kg
|
CHM-040/090 R.750 71F14 |
750:1
|
IEC 71 · 14 mm shaft
|
0.25 kW
|
1.9 r/min
|
538 Nm
|
15.0 kg
|
CHM-040/090 R.900 56F9 |
900:1
|
IEC 56 · 9 mm shaft
|
0.25 kW
|
1.6 r/min
|
533 Nm
|
15.0 kg
|
CHM-040/090 R.900 63F11 |
900:1
|
IEC 63 · 11 mm shaft
|
0.25 kW
|
1.6 r/min
|
533 Nm
|
15.0 kg
|
CHM-040/090 R.900 71F14 |
900:1
|
IEC 71 · 14 mm shaft
|
0.25 kW
|
1.6 r/min
|
533 Nm
|
15.0 kg
|
CHM-040/090 R.1200 56F9 |
1200:1
|
IEC 56 · 9 mm shaft
|
0.18 kW
|
1.2 r/min
|
629 Nm
|
15.0 kg
|
CHM-040/090 R.1200 63F11 |
1200:1
|
IEC 63 · 11 mm shaft
|
0.18 kW
|
1.2 r/min
|
629 Nm
|
15.0 kg
|
CHM-040/090 R.1200 71F14 |
1200:1
|
IEC 71 · 14 mm shaft
|
0.18 kW
|
1.2 r/min
|
629 Nm
|
15.0 kg
|
CHM-040/090 R.1500 56F9 |
1500:1
|
IEC 56 · 9 mm shaft
|
0.18 kW
|
0.9 r/min
|
588 Nm
|
15.0 kg
|
CHM-040/090 R.1500 63F11 |
1500:1
|
IEC 63 · 11 mm shaft
|
0.18 kW
|
0.9 r/min
|
588 Nm
|
15.0 kg
|
CHM-040/090 R.1500 71F14 |
1500:1
|
IEC 71 · 14 mm shaft
|
0.18 kW
|
0.9 r/min
|
588 Nm
|
15.0 kg
|
CHM-040/090 R.1800 56F9 |
1800:1
|
IEC 56 · 9 mm shaft
|
0.18 kW
|
0.8 r/min
|
492 Nm
|
15.0 kg
|
CHM-040/090 R.1800 63F11 |
1800:1
|
IEC 63 · 11 mm shaft
|
0.18 kW
|
0.8 r/min
|
492 Nm
|
15.0 kg
|
CHM-040/090 R.1800 71F14 |
1800:1
|
IEC 71 · 14 mm shaft
|
0.18 kW
|
0.8 r/min
|
492 Nm
|
15.0 kg
|
CHM-040/090 R.2400 56F9 |
2400:1
|
IEC 56 · 9 mm shaft
|
0.18 kW
|
0.6 r/min
|
625 Nm
|
15.0 kg
|
CHM-040/090 R.2400 63F11 |
2400:1
|
IEC 63 · 11 mm shaft
|
0.18 kW
|
0.6 r/min
|
625 Nm
|
15.0 kg
|
CHM-040/090 R.2400 71F14 |
2400:1
|
IEC 71 · 14 mm shaft
|
0.18 kW
|
0.6 r/min
|
625 Nm
|
15.0 kg
|
No products match the selected filters.
Product Information
Motor pole count
All table figures assume a 4-pole motor (1400 r/min input) — the standard choice for most applications. A 2-pole motor (2800 r/min) doubles the output speed and a 6-pole motor (900 r/min) reduces it, and the power and torque ratings change with them — if you're running anything other than 4-pole, contact us and we'll size it for you.
Reading the table
Each row is one total ratio: output speed at 1400 r/min in, the catalogue's motor power P1 and the output torque at that power. The ratios listed are the most frequently requested; multiple other combinations of the two single gears' ratios can be made.
- Material
- Aluminium housings
