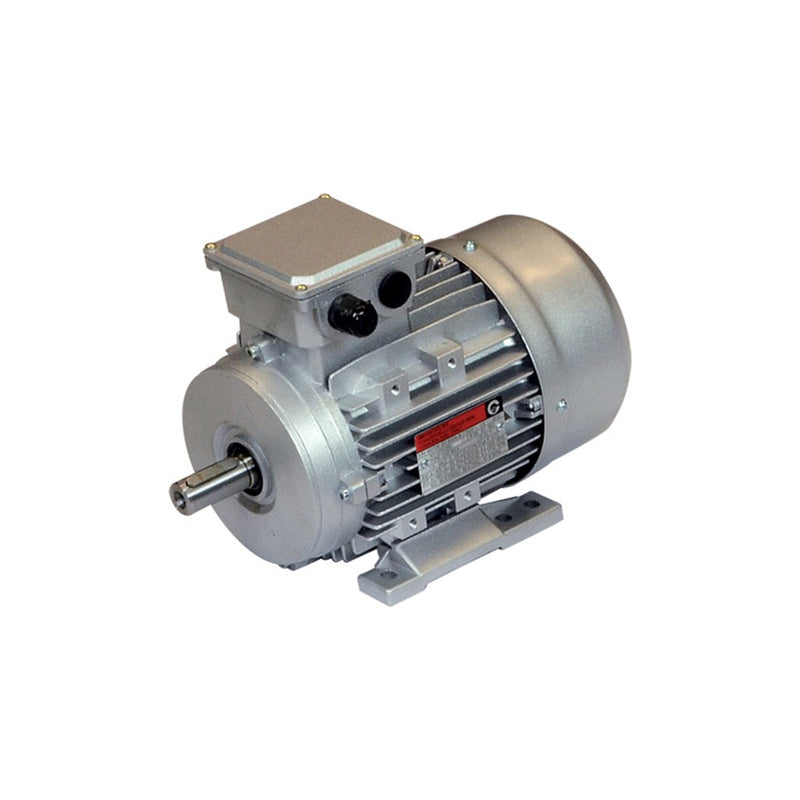

CHT 100 Single-Phase Aluminium Motor (2.2–3 kW)
CHT 100 single-phase aluminium motor — IEC frame 100, 2 / 4-pole, 2.2–3 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B3, B5 or B14 — the dimension sheet gives the frame 100 mounting dimensions.
How to pick from the table: choose the pole count for the speed you need, then the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Poles | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 100 LA 4P 1PH |
LA4
|
4
|
2.2 kW
|
1400 r/min
|
15 Nm
|
13 A
|
75.1 %
|
0.99
|
80 µF
|
0.5
|
2
|
4.1
|
0.01 kg m²
|
26.0 kg
|
CHT 100 LA 2P 1PH |
LA2
|
2
|
3 kW
|
2850 r/min
|
10.1 Nm
|
17.6 A
|
77.9 %
|
0.99
|
80 µF
|
0.5
|
2.1
|
4.8
|
0.0055 kg m²
|
25.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, poles, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — B3, B5 and B14 mounting dimensions are on the dimension sheet.
- Material
- Aluminium casing
