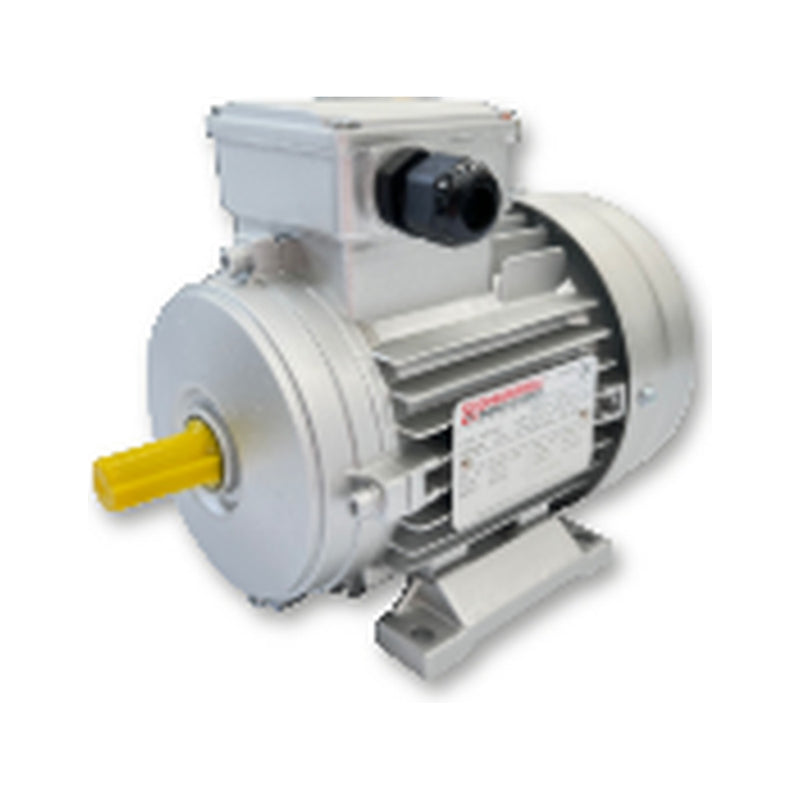

CHT 100 Single-Phase Motor 4-Pole (2.2 kW)
CHT 100 single-phase motor, 4-pole (about 1500 r/min at 50 Hz) — IEC frame 100, 2.2 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B14 (face flange — our most common fit on gearboxes), B5 or B3: pick it in the table's Mounting filter; the dimension sheet gives the frame 100 mounting dimensions.
How to pick from the table: choose the power and the mounting; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1. The table opens on the B14 mounting — switch the filter for B5 or B3.
| Code | Mounting | Type | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 100 LA4 1PH B14 |
B14
|
LA
|
2.2 kW
|
1400 r/min
|
15 Nm
|
13 A
|
75.1 %
|
0.99
|
80 µF
|
0.5
|
2
|
4.1
|
0.01 kg m²
|
26.0 kg
|
CHT 100 LA4 1PH B5 |
B5
|
LA
|
2.2 kW
|
1400 r/min
|
15 Nm
|
13 A
|
75.1 %
|
0.99
|
80 µF
|
0.5
|
2
|
4.1
|
0.01 kg m²
|
26.0 kg
|
CHT 100 LA4 1PH B3 |
B3
|
LA
|
2.2 kW
|
1400 r/min
|
15 Nm
|
13 A
|
75.1 %
|
0.99
|
80 µF
|
0.5
|
2
|
4.1
|
0.01 kg m²
|
26.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the mounting, type, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Mounting
The table opens on B14 (face flange) — our most common fit on gearboxes. Switch the Mounting filter to B5 or B3 (foot) for those versions; the mounting dimensions are on the dimension sheet.
