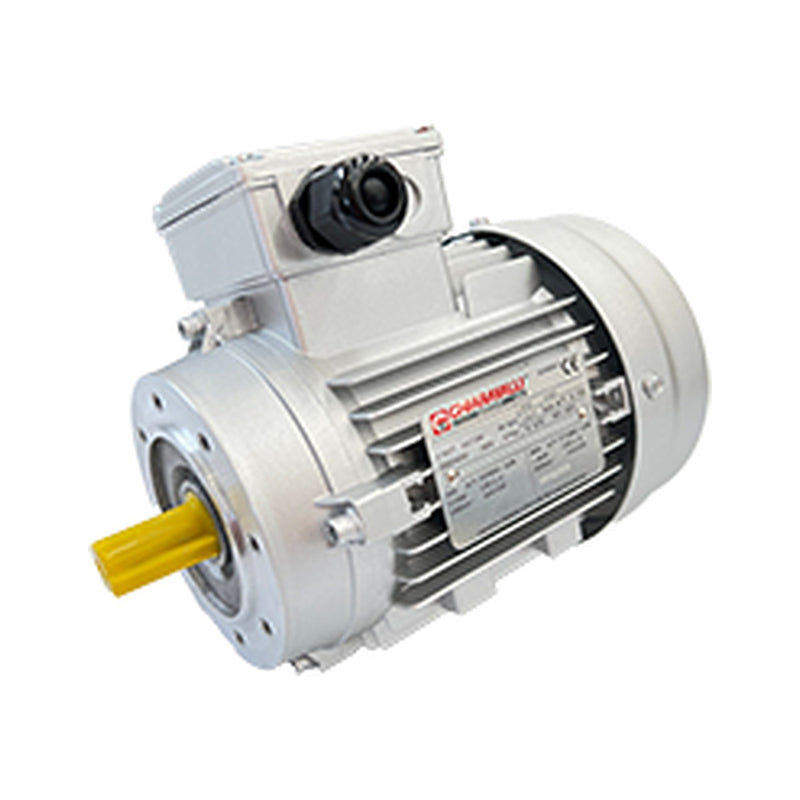

CHT 100 Single-Phase Motor 4-Pole B14 (2.2 kW)
CHT 100 single-phase motor, 4-pole (about 1500 r/min at 50 Hz), B14 face-flange mounting (our most common fit on gearboxes) — IEC frame 100, 2.2 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. The dimension sheet gives the frame 100 B14 mounting dimensions; the other mountings are the sibling cards one level up.
How to pick from the table: choose the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, B14 mounting, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Power | Speed | Torque | Current at 230 V | Running capacitor | Weight |
|---|---|---|---|---|---|---|---|
CHT 100 LA4 1PH B14 |
LA
|
2.2 kW
|
1400 r/min
|
15 Nm
|
13 A
|
80 µF
|
26.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, rated power, speed, torque, current and the capacitor rating, with the weight last. Pick the power you need.
Mounting
This page is one mounting — B14 (face flange, our most common fit on gearboxes), B5 or B3 (foot); the mounting dimensions are on the dimension sheet. The other mountings are the sibling cards one level up.
- Material
- Aluminium casing
