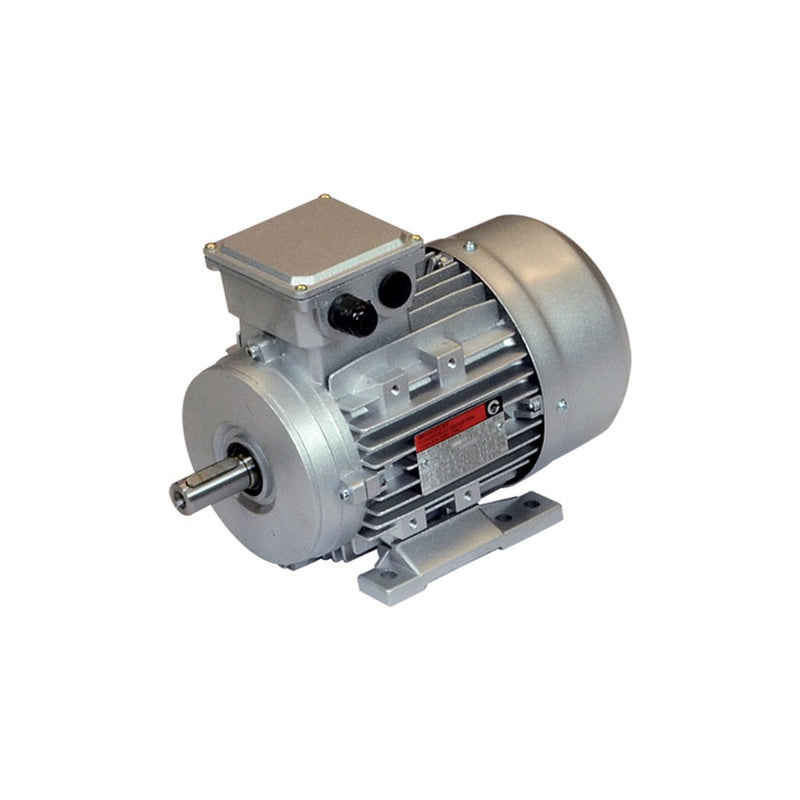

CHT 160 Three-Phase Aluminium Motor (7.5–18.5 kW)
CHT 160 three-phase aluminium motor — Chiaravalli's IEC frame 160 motors in the IE3 efficiency class, 2 / 4 / 6-pole, 7.5–18.5 kW. Aluminium casing, IP55, class F insulation, IC411 fan cooling, 230/400 V 50 Hz (Δ 400 V from frame 132). Mounting B3, B5 or B14 — the dimension sheets give the frame 160 mounting dimensions.
How to pick from the table: choose the pole count for the speed you need, then the power; the efficiency class is IE3 from 0.75 kW up (IE1 below that) — we supply IE3 and above only from 0.75 kW. The type letter is the motor's length designation within the frame. Voltage 400/690 V standard from frame 160 (other sizes on request); brake motors and Siemens motors available on request.
Product Configuration
Select a row to add it to your quote
Three-phase Δ/Y 230/400 V (≤112) · Δ 400 V (≥132), 50 Hz; IP55, insulation class F, IC411 cooling; efficiency to IEC 60034-30 / 60034-2-1.
| Code | Type | Efficiency class | Poles | Power | Speed | Torque | Current at 400 V | Efficiency | cos φ | Efficiency at 75 % | Efficiency at 50 % | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 160 M6 IE3 |
M6
|
IE3
|
6
|
7.5 kW
|
970 r/min
|
73.8 Nm
|
15.8 A
|
89.1 %
|
0.77
|
89.3 %
|
89 %
|
2.1
|
2.1
|
6.7
|
0.107 kg m²
|
111.0 kg
|
CHT 160 M2 IE3 |
M2
|
IE3
|
2
|
11 kW
|
2940 r/min
|
35.7 Nm
|
19.6 A
|
91.2 %
|
0.89
|
91.4 %
|
90.1 %
|
2.2
|
2.3
|
7.9
|
0.063 kg m²
|
108.0 kg
|
CHT 160 M4 IE3 |
M4
|
IE3
|
4
|
11 kW
|
1460 r/min
|
72 Nm
|
20.7 A
|
91.4 %
|
0.84
|
91.5 %
|
91.5 %
|
2.2
|
2.3
|
7.5
|
0.096 kg m²
|
111.0 kg
|
CHT 160 L2 IE3 |
L2
|
IE3
|
2
|
15 kW
|
2935 r/min
|
48.8 Nm
|
26.5 A
|
91.9 %
|
0.89
|
92.2 %
|
91.7 %
|
2.2
|
2.3
|
8
|
0.073 kg m²
|
119.0 kg
|
CHT 160 L4 IE3 |
L4
|
IE3
|
4
|
15 kW
|
1460 r/min
|
98.1 Nm
|
27.7 A
|
92.1 %
|
0.85
|
92.3 %
|
92.1 %
|
2.2
|
2.3
|
7.5
|
0.133 kg m²
|
132.0 kg
|
CHT 160 L6 IE3 |
L6
|
IE3
|
6
|
15 kW
|
970 r/min
|
108.3 Nm
|
22.5 A
|
90.3 %
|
0.78
|
90.4 %
|
90 %
|
2.1
|
2.1
|
7.2
|
0.146 kg m²
|
132.0 kg
|
CHT 160 LB2 IE3 |
LB2
|
IE3
|
2
|
18.5 kW
|
2940 r/min
|
60.1 Nm
|
32.4 A
|
92.5 %
|
0.89
|
92.9 %
|
92.3 %
|
2.2
|
2.3
|
8.1
|
0.084 kg m²
|
134.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Each row is one motor of this frame size: the type letter and pole count (a 4-pole motor runs at about 1500 r/min on 50 Hz, 2-pole about 3000, 6-pole about 1000), the efficiency class, rated power, speed, rated torque, current at 400 V, efficiency and power factor. "Show starting and part-load data" adds the starting torque and current ratios (Ms/Mn, Mmax/Mn, Is/In), the rotor inertia J0 and, for IE3 / IE4 motors, the efficiency at 75 % and 50 % load.
Efficiency classes
From January 2017 the EU regulation (CE) 640/2009 requires motors of 0.75 to 375 kW with 2, 4 or 6 poles sold in the European market to be at least IE3. Nusaf supplies IE3 and above only from 0.75 kW up — IE1 motors are listed below 0.75 kW only. Efficiency figures follow IEC 60034-30 / 60034-2-1.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — a gearbox listed for "IEC 80" takes a frame 80 motor in B5 or B14. Mounting B3 (foot), B5 (flange) and B14 (face flange) dimensions are on the dimension sheets.
