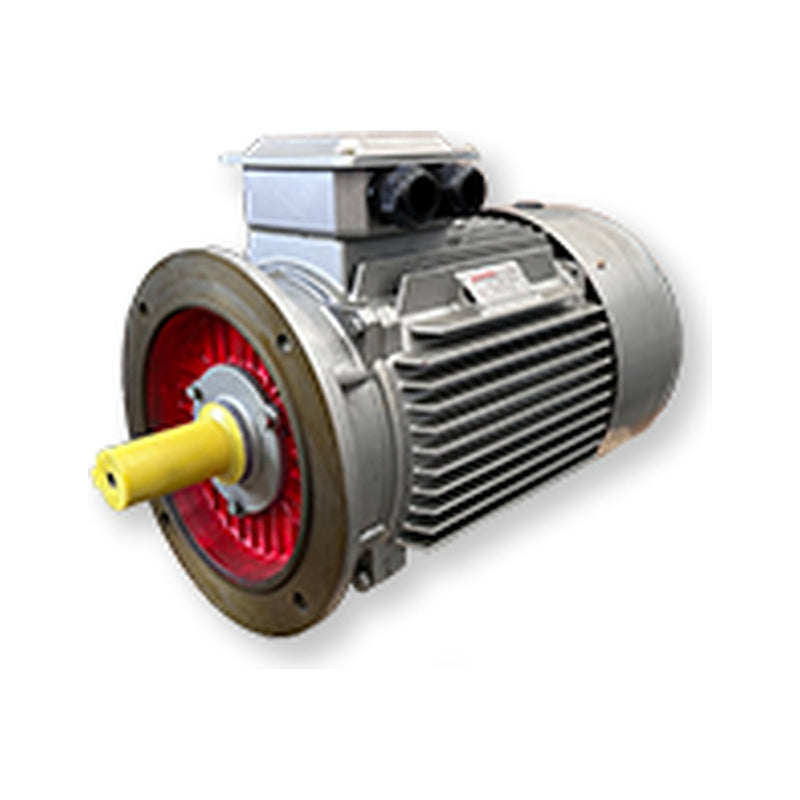

CHT 200 Cast Iron Three-Phase Motor 6-Pole B5 (18.5–22 kW)
CHT 200 cast iron three-phase motor, 6-pole (about 1000 r/min at 50 Hz), B5 flange mounting — Chiaravalli's IEC frame 200 cast iron motors in the IE3 / IE4 efficiency classes, 18.5–22 kW. Cast iron casing, IP54, class F insulation, IC411 fan cooling, Δ/Y 400/690 V 50 Hz. The dimension sheets give the frame 200 B5 mounting dimensions per efficiency class; the other mountings are the sibling cards one level up.
How to pick from the table: choose the power and the efficiency class — IE3 or IE4 (we supply IE3 and above only from 0.75 kW up; IE4 where the energy saving pays). The type letter is the motor's length designation within the frame. Forced-cooling fan kits for inverter duty are available for every frame (catalogue p8).
Product Configuration
Select a row to add it to your quote
Three-phase Δ/Y 400/690 V 50 Hz, B5 mounting; IP54, insulation class F, IC411 cooling.
| Code | Type | Efficiency class | Power | Speed | Torque | Current at 400 V | Weight |
|---|---|---|---|---|---|---|---|
CHT 200 LA6 IE3 B5 |
LA
|
IE3
|
18.5 kW
|
970 r/min
|
182.1 Nm
|
36.4 A
|
216.0 kg
|
CHT 200 LA6 IE4 B5 |
LA
|
IE4
|
18.5 kW
|
975 r/min
|
181.3 Nm
|
35.7 A
|
240.0 kg
|
CHT 200 LB6 IE3 B5 |
LB
|
IE3
|
22 kW
|
970 r/min
|
216.6 Nm
|
42.5 A
|
233.0 kg
|
CHT 200 LB6 IE4 B5 |
LB
|
IE4
|
22 kW
|
975 r/min
|
215.6 Nm
|
41.8 A
|
264.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Every row is one motor of this frame, pole count and mounting: the type letter (the catalogue's length code), the efficiency class, rated power, speed, rated torque and current at 400 V, with the weight last. Pick the power you need, then the efficiency class.
Mounting
This page is one mounting — B3 (foot), B5 (flange) or B35 (foot and flange). The electrical data is the same across the three; the mounting dimensions are on the dimension sheets per efficiency class. The other mountings are the sibling cards one level up.
Efficiency classes
IE is the international efficiency grading for electric motors (IEC 60034-30-1). The higher the number, the less of the electricity you pay for is lost as heat for the same shaft power — so a lower running cost over the years the motor is in service. IE1 is standard efficiency, IE2 high efficiency, IE3 premium efficiency and IE4 super premium efficiency. Nusaf supplies IE3 and above only from 0.75 kW up — IE1 motors are listed below 0.75 kW only. The exact efficiency figure for each motor is in the Chiaravalli catalogue.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — a gearbox listed for "IEC 80" takes a frame 80 motor in B5 or B14.
- Material
- Cast iron casing
