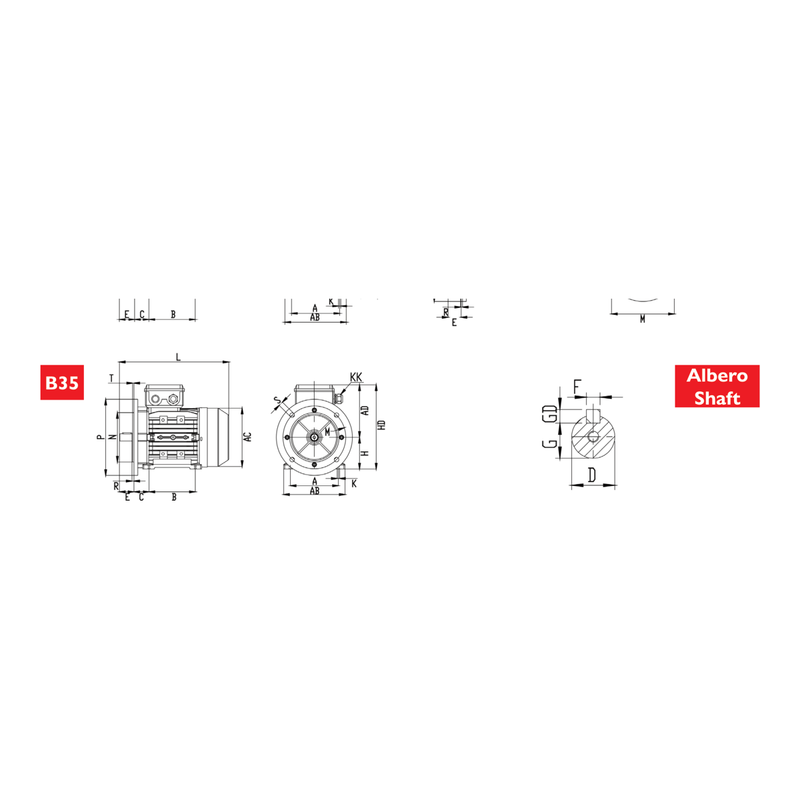

Chiaravalli CHT 200 cast iron motor — B3 / B5 / B35 outline (Cast Iron Motors catalogue)
Chiaravalli

CHT 200 Three-Phase Cast Iron Motor (18.5–37 kW)

Electric Motors — cast iron

CHT 200 three-phase cast iron motor — Chiaravalli's IEC frame 200 cast iron motors in the IE3 / IE4 efficiency classes, 2 / 4 / 6-pole, 18.5–37 kW. Cast iron casing, IP54, class F insulation, IC411 fan cooling, Δ/Y 400/690 V 50 Hz. Mounting B3, B5 or B35 — the dimension sheets give the frame 200 mounting dimensions per efficiency class.

How to pick from the table: choose the pole count for the speed you need, then the power and the efficiency class — IE3 or IE4 (we supply IE3 and above only from 0.75 kW up; IE4 where the energy saving pays). The type letter is the motor's length designation within the frame. Forced-cooling fan kits for inverter duty are available for every frame (catalogue p8).

Product Configuration

Select a row to add it to your quote

Three-phase Δ/Y 400/690 V 50 Hz; IP54, insulation class F, IC411 cooling; efficiency to IEC 60034-30 / 60034-2-1.

CodeTypeEfficiency classPolesPowerSpeedTorqueCurrent at 400 VEfficiencycos φEfficiency at 75 %Efficiency at 50 %Ms / MnMmax / MnIs / InJ0 Weight
CHT 200 LA6 IE3 LA6 IE3 6 18.5 kW 970 r/min 182.1 Nm 36.4 A 91.7 % 0.8 92.3 % 90.6 % 2.5 2.8 9.5 0.3835 kg m² 216.0 kg
CHT 200 LA6 IE4 LA6 IE4 6 18.5 kW 975 r/min 181.3 Nm 35.7 A 93.4 % 0.8 93.6 % 93.3 % 2 2.1 8.5 0.4674 kg m² 240.0 kg
CHT 200 LB6 IE3 LB6 IE3 6 22 kW 970 r/min 216.6 Nm 42.5 A 92.2 % 0.81 93 % 91.3 % 2.5 2.8 8.3 0.4494 kg m² 233.0 kg
CHT 200 LB6 IE4 LB6 IE4 6 22 kW 975 r/min 215.6 Nm 41.8 A 93.7 % 0.81 93.9 % 93.6 % 2 2.1 8.5 0.5682 kg m² 264.0 kg
CHT 200 LA2 IE3 LA2 IE3 2 30 kW 2945 r/min 97.3 Nm 52.1 A 93.3 % 0.89 93.8 % 93.2 % 2.5 2.5 8.5 0.1735 kg m² 226.0 kg
CHT 200 LA2 IE4 LA2 IE4 2 30 kW 2970 r/min 96.5 Nm 51.5 A 94.5 % 0.89 94.7 % 94.3 % 2 2.3 9 0.2669 kg m² 246.0 kg
CHT 200 L4 IE3 L4 IE3 4 30 kW 1470 r/min 194.9 Nm 57.1 A 93.6 % 0.81 93.7 % 93.2 % 2.5 2.8 8.7 0.2944 kg m² 240.0 kg
CHT 200 L4 IE4 L4 IE4 4 30 kW 1480 r/min 193.67 Nm 53.7 A 94.9 % 0.85 95.2 % 94 % 2 2.3 9 0.5657 kg m² 268.0 kg
CHT 200 LB2 IE3 LB2 IE3 2 37 kW 2945 r/min 120 Nm 64 A 93.7 % 0.89 94.4 % 94.2 % 2.5 2.5 8.5 0.2001 kg m² 244.0 kg
CHT 200 LB2 IE4 LB2 IE4 2 37 kW 2970 r/min 119 Nm 63.3 A 94.8 % 0.89 95 % 94.7 % 2 2.3 9 0.3031 kg m² 270.0 kg

Product Information

Reading the table

Each row is one motor of this frame size: the type letter and pole count (a 4-pole motor runs at about 1500 r/min on 50 Hz, 2-pole about 3000, 6-pole about 1000), the efficiency class, rated power, speed, rated torque, current at 400 V, efficiency and power factor. "Show starting and part-load data" adds the starting torque and current ratios (Ms/Mn, Mmax/Mn, Is/In), the rotor inertia J0 and, for IE3 / IE4 motors, the efficiency at 75 % and 50 % load.

Efficiency classes

From January 2017 the EU regulation (CE) 640/2009 requires motors of 0.75 to 375 kW with 2, 4 or 6 poles sold in the European market to be at least IE3. Nusaf supplies IE3 and above only from 0.75 kW up — IE1 motors are listed below 0.75 kW only. Efficiency figures follow IEC 60034-30 / 60034-2-1.

Fitting to a gearbox

The frame size is the IEC size the gearbox flange is specified by — a gearbox listed for "IEC 80" takes a frame 80 motor in B5 or B14. Mounting B3 (foot), B5 (flange) and B14 (face flange) dimensions are on the dimension sheets.
