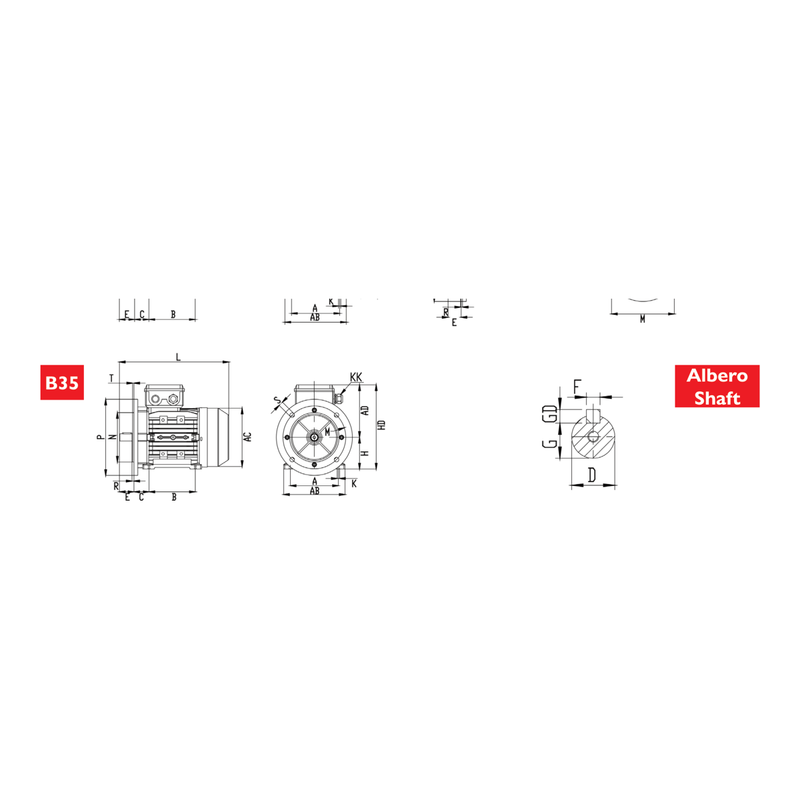

Chiaravalli CHT 280 cast iron motor — B3 / B5 / B35 outline (Cast Iron Motors catalogue)
Chiaravalli

CHT 280 Three-Phase Cast Iron Motor (45–90 kW)

Electric Motors — cast iron

CHT 280 three-phase cast iron motor — Chiaravalli's IEC frame 280 cast iron motors in the IE3 / IE4 efficiency classes, 2 / 4 / 6-pole, 45–90 kW. Cast iron casing, IP54, class F insulation, IC411 fan cooling, Δ/Y 400/690 V 50 Hz. Mounting B3, B5 or B35 — the dimension sheets give the frame 280 mounting dimensions per efficiency class.

How to pick from the table: choose the pole count for the speed you need, then the power and the efficiency class — IE3 or IE4 (we supply IE3 and above only from 0.75 kW up; IE4 where the energy saving pays). The type letter is the motor's length designation within the frame. Forced-cooling fan kits for inverter duty are available for every frame (catalogue p8).

Product Configuration

Select a row to add it to your quote

Three-phase Δ/Y 400/690 V 50 Hz; IP54, insulation class F, IC411 cooling; efficiency to IEC 60034-30 / 60034-2-1.

CodeTypeEfficiency classPolesPowerSpeedTorqueCurrent at 400 VEfficiencycos φEfficiency at 75 %Efficiency at 50 %Ms / MnMmax / MnIs / InJ0 Weight
CHT 280 S6 IE3 S6 IE3 6 45 kW 980 r/min 438.5 Nm 83.5 A 93.7 % 0.83 94.6 % 92.7 % 2.5 2.8 8.9 2.2027 kg m² 478.0 kg
CHT 280 S6 IE4 S6 IE4 6 45 kW 985 r/min 436.5 Nm 82.5 A 94.8 % 0.83 95 % 94.7 % 2 2 8.5 2.3357 kg m² 503.0 kg
CHT 280 M6 IE3 M6 IE3 6 55 kW 980 r/min 536 Nm 99.3 A 94.1 % 0.85 95 % 93.4 % 2.5 2.8 9.2 2.573 kg m² 543.0 kg
CHT 280 M6 IE4 M6 IE4 6 55 kW 985 r/min 533.5 Nm 99.4 A 95.1 % 0.84 95.3 % 95 % 2 2 8.5 2.7027 kg m² 572.0 kg
CHT 280 S2 IE3 S2 IE3 2 75 kW 2960 r/min 242 Nm 125.6 A 94.7 % 0.91 94.9 % 93.7 % 2.5 2.6 8.8 0.8291 kg m² 531.0 kg
CHT 280 S2 IE4 S2 IE4 2 75 kW 2980 r/min 240.46 Nm 127.2 A 95.6 % 0.89 95.8 % 95 % 1.8 2.3 8.5 1.267 kg m² 551.0 kg
CHT 280 S4 IE3 S4 IE3 4 75 kW 1480 r/min 484 Nm 131 A 95 % 0.87 95.1 % 94.8 % 2.5 2.8 9.3 1.996 kg m² 528.0 kg
CHT 280 S4 IE4 S4 IE4 4 75 kW 1485 r/min 482.5 Nm 129.6 A 96 % 0.87 96.1 % 95.4 % 2 2.3 8.5 2.149 kg m² 576.0 kg
CHT 280 M2 IE3 M2 IE3 2 90 kW 2960 r/min 290.4 Nm 150.3 A 95 % 0.91 95.2 % 94.3 % 2.5 2.6 8.9 0.9817 kg m² 604.0 kg
CHT 280 M2 IE4 M2 IE4 2 90 kW 2980 r/min 288.55 Nm 152.4 A 95.8 % 0.89 95.9 % 95.2 % 1.8 2.3 8.5 1.4947 kg m² 658.0 kg
CHT 280 M4 IE3 M4 IE3 4 90 kW 1480 r/min 580.7 Nm 160.5 A 95.2 % 0.85 95.1 % 95 % 2.5 2.8 9.2 2.1835 kg m² 605.0 kg
CHT 280 M4 IE4 M4 IE4 4 90 kW 1485 r/min 579 Nm 153.6 A 96.1 % 0.88 96.1 % 95.8 % 2 2.3 8.5 2.3775 kg m² 671.0 kg

Product Information

Reading the table

Each row is one motor of this frame size: the type letter and pole count (a 4-pole motor runs at about 1500 r/min on 50 Hz, 2-pole about 3000, 6-pole about 1000), the efficiency class, rated power, speed, rated torque, current at 400 V, efficiency and power factor. "Show starting and part-load data" adds the starting torque and current ratios (Ms/Mn, Mmax/Mn, Is/In), the rotor inertia J0 and, for IE3 / IE4 motors, the efficiency at 75 % and 50 % load.

Efficiency classes

From January 2017 the EU regulation (CE) 640/2009 requires motors of 0.75 to 375 kW with 2, 4 or 6 poles sold in the European market to be at least IE3. Nusaf supplies IE3 and above only from 0.75 kW up — IE1 motors are listed below 0.75 kW only. Efficiency figures follow IEC 60034-30 / 60034-2-1.

Fitting to a gearbox

The frame size is the IEC size the gearbox flange is specified by — a gearbox listed for "IEC 80" takes a frame 80 motor in B5 or B14. Mounting B3 (foot), B5 (flange) and B14 (face flange) dimensions are on the dimension sheets.
