CHT 315 Three-Phase Cast Iron Motor (75–200 kW)

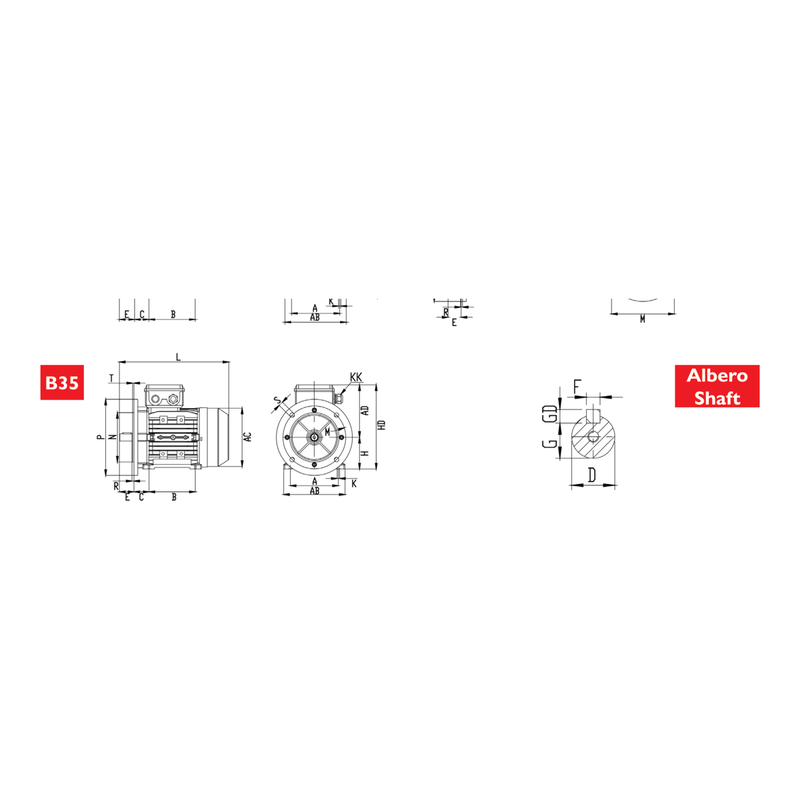

CHT 315 three-phase cast iron motor — Chiaravalli's IEC frame 315 cast iron motors in the IE3 / IE4 efficiency classes, 2 / 4 / 6-pole, 75–200 kW. Cast iron casing, IP54, class F insulation, IC411 fan cooling, Δ/Y 400/690 V 50 Hz. Mounting B3, B5 or B35 — the dimension sheets give the frame 315 mounting dimensions per efficiency class.
How to pick from the table: choose the pole count for the speed you need, then the power and the efficiency class — IE3 or IE4 (we supply IE3 and above only from 0.75 kW up; IE4 where the energy saving pays). The type letter is the motor's length designation within the frame. Forced-cooling fan kits for inverter duty are available for every frame (catalogue p8).
Product Configuration
Select a row to add it to your quote
Three-phase Δ/Y 400/690 V 50 Hz; IP54, insulation class F, IC411 cooling; efficiency to IEC 60034-30 / 60034-2-1.
| Code | Type | Efficiency class | Poles | Power | Speed | Torque | Current at 400 V | Efficiency | cos φ | Efficiency at 75 % | Efficiency at 50 % | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 315 S6 IE3 |
S6
|
IE3
|
6
|
75 kW
|
980 r/min
|
730.9 Nm
|
139.6 A
|
94.6 %
|
0.82
|
94.8 %
|
93.2 %
|
2
|
2.3
|
7.5
|
3.8032 kg m²
|
775.0 kg
|
CHT 315 S6 IE4 |
S6
|
IE4
|
6
|
75 kW
|
990 r/min
|
723.8 Nm
|
135.1 A
|
95.4 %
|
0.84
|
95.6 %
|
95.3 %
|
1.6
|
2
|
8
|
4.4143 kg m²
|
803.0 kg
|
CHT 315 M6 IE3 |
M6
|
IE3
|
6
|
90 kW
|
980 r/min
|
877 Nm
|
166.9 A
|
94.9 %
|
0.82
|
95 %
|
93.4 %
|
2
|
2.3
|
7.5
|
4.4527 kg m²
|
873.0 kg
|
CHT 315 M6 IE4 |
M6
|
IE4
|
6
|
90 kW
|
990 r/min
|
868.6 Nm
|
159.9 A
|
95.6 %
|
0.85
|
95.8 %
|
95.4 %
|
1.6
|
2
|
8
|
5.2574 kg m²
|
922.0 kg
|
CHT 315 S2 IE3 |
S2
|
IE3
|
2
|
110 kW
|
2960 r/min
|
354.9 Nm
|
185.3 A
|
95.2 %
|
0.9
|
95.5 %
|
94.6 %
|
2
|
2.3
|
8.5
|
1.7035 kg m²
|
833.0 kg
|
CHT 315 S2 IE4 |
S2
|
IE4
|
2
|
110 kW
|
2980 r/min
|
352.67 Nm
|
185.8 A
|
96 %
|
0.89
|
96.1 %
|
95.6 %
|
1.8
|
2.3
|
8.5
|
2.0358 kg m²
|
904.0 kg
|
CHT 315 S4 IE3 |
S4
|
IE3
|
4
|
110 kW
|
1480 r/min
|
709.8 Nm
|
189.1 A
|
95.4 %
|
0.88
|
95.7 %
|
94.6 %
|
2.2
|
2.6
|
9
|
3.7181 kg m²
|
835.0 kg
|
CHT 315 S4 IE4 |
S4
|
IE4
|
4
|
110 kW
|
1485 r/min
|
707.7 Nm
|
185.2 A
|
96.3 %
|
0.89
|
96.3 %
|
95.9 %
|
1.8
|
2.2
|
8.5
|
3.9426 kg m²
|
883.0 kg
|
CHT 315 LA6 IE3 |
LA6
|
IE3
|
6
|
110 kW
|
980 r/min
|
1071.9 Nm
|
203.6 A
|
95.1 %
|
0.82
|
95.4 %
|
94 %
|
2
|
2.3
|
7.5
|
5.5396 kg m²
|
964.0 kg
|
CHT 315 LA6 IE4 |
LA6
|
IE4
|
6
|
110 kW
|
990 r/min
|
1061.6 Nm
|
195 A
|
95.8 %
|
0.85
|
96 %
|
95.6 %
|
1.6
|
2
|
8
|
6.309 kg m²
|
992.0 kg
|
CHT 315 M2 IE3 |
M2
|
IE3
|
2
|
132 kW
|
2960 r/min
|
425.9 Nm
|
221.9 A
|
95.4 %
|
0.9
|
95.5 %
|
94.7 %
|
2
|
2.3
|
8.5
|
1.9386 kg m²
|
976.0 kg
|
CHT 315 M2 IE4 |
M2
|
IE4
|
2
|
132 kW
|
2980 r/min
|
423.2 Nm
|
222.5 A
|
96.2 %
|
0.89
|
96.2 %
|
95.7 %
|
1.8
|
2.3
|
8.5
|
2.352 kg m²
|
1007.0 kg
|
CHT 315 M4 IE3 |
M4
|
IE3
|
4
|
132 kW
|
1480 r/min
|
851.8 Nm
|
226.5 A
|
95.6 %
|
0.88
|
95.8 %
|
95 %
|
2.2
|
2.6
|
7.5
|
4.2967 kg m²
|
932.0 kg
|
CHT 315 M4 IE4 |
M4
|
IE4
|
4
|
132 kW
|
1485 r/min
|
849.3 Nm
|
222.1 A
|
96.4 %
|
0.89
|
96.4 %
|
96.2 %
|
1.8
|
2.2
|
8.5
|
4.4713 kg m²
|
992.0 kg
|
CHT 315 LB6 IE3 |
LB6
|
IE3
|
6
|
132 kW
|
980 r/min
|
1286.3 Nm
|
243.6 A
|
95.4 %
|
0.82
|
95.7 %
|
94.2 %
|
2
|
2.3
|
7.5
|
6.6264 kg m²
|
1063.0 kg
|
CHT 315 LB6 IE4 |
LB6
|
IE4
|
6
|
132 kW
|
990 r/min
|
1273.9 Nm
|
230.8 A
|
96 %
|
0.86
|
96.2 %
|
95.9 %
|
1.6
|
2
|
8
|
7.5109 kg m²
|
1078.0 kg
|
CHT 315 LA2 IE3 |
LA2
|
IE3
|
2
|
160 kW
|
2960 r/min
|
516.2 Nm
|
268.4 A
|
95.6 %
|
0.9
|
95.8 %
|
94.5 %
|
2
|
2.3
|
8.5
|
2.1976 kg m²
|
1045.0 kg
|
CHT 315 LA2 IE4 |
LA2
|
IE4
|
2
|
160 kW
|
2980 r/min
|
513 Nm
|
269.5 A
|
96.3 %
|
0.89
|
96.3 %
|
95.8 %
|
1.8
|
2.2
|
8.5
|
2.7202 kg m²
|
1075.0 kg
|
CHT 315 LA4 IE3 |
LA4
|
IE3
|
4
|
160 kW
|
1480 r/min
|
1032.4 Nm
|
273.9 A
|
95.8 %
|
0.88
|
96 %
|
95.1 %
|
2.2
|
2.6
|
9
|
5.1099 kg m²
|
1061.0 kg
|
CHT 315 LA4 IE4 |
LA4
|
IE4
|
4
|
160 kW
|
1485 r/min
|
1029.4 Nm
|
265.6 A
|
96.6 %
|
0.9
|
96.6 %
|
96.3 %
|
1.8
|
2.2
|
8.5
|
5.2674 kg m²
|
1113.0 kg
|
CHT 315 LB2 IE3 |
LB2
|
IE3
|
2
|
200 kW
|
2960 r/min
|
645.3 Nm
|
334.8 A
|
95.8 %
|
0.9
|
96 %
|
94.7 %
|
2
|
2.3
|
8.5
|
2.5537 kg m²
|
1138.0 kg
|
CHT 315 LB2 IE4 |
LB2
|
IE4
|
2
|
200 kW
|
2980 r/min
|
641.2 Nm
|
336.1 A
|
96.5 %
|
0.89
|
96.5 %
|
96 %
|
1.8
|
2.2
|
8.5
|
3.2726 kg m²
|
1228.0 kg
|
CHT 315 LB4 IE3 |
LB4
|
IE3
|
4
|
200 kW
|
1480 r/min
|
1290.5 Nm
|
337.9 A
|
96 %
|
0.89
|
96.2 %
|
95.3 %
|
2.2
|
2.6
|
9
|
6.1733 kg m²
|
1164.0 kg
|
CHT 315 LB4 IE4 |
LB4
|
IE4
|
4
|
200 kW
|
1485 r/min
|
1286.8 Nm
|
331.7 A
|
96.7 %
|
0.9
|
96.7 %
|
96.3 %
|
1.8
|
2.2
|
8.5
|
6.291 kg m²
|
1246.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Each row is one motor of this frame size: the type letter and pole count (a 4-pole motor runs at about 1500 r/min on 50 Hz, 2-pole about 3000, 6-pole about 1000), the efficiency class, rated power, speed, rated torque, current at 400 V, efficiency and power factor. "Show starting and part-load data" adds the starting torque and current ratios (Ms/Mn, Mmax/Mn, Is/In), the rotor inertia J0 and, for IE3 / IE4 motors, the efficiency at 75 % and 50 % load.
Efficiency classes
From January 2017 the EU regulation (CE) 640/2009 requires motors of 0.75 to 375 kW with 2, 4 or 6 poles sold in the European market to be at least IE3. Nusaf supplies IE3 and above only from 0.75 kW up — IE1 motors are listed below 0.75 kW only. Efficiency figures follow IEC 60034-30 / 60034-2-1.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — a gearbox listed for "IEC 80" takes a frame 80 motor in B5 or B14. Mounting B3 (foot), B5 (flange) and B14 (face flange) dimensions are on the dimension sheets.
- Material
- Cast iron casing
