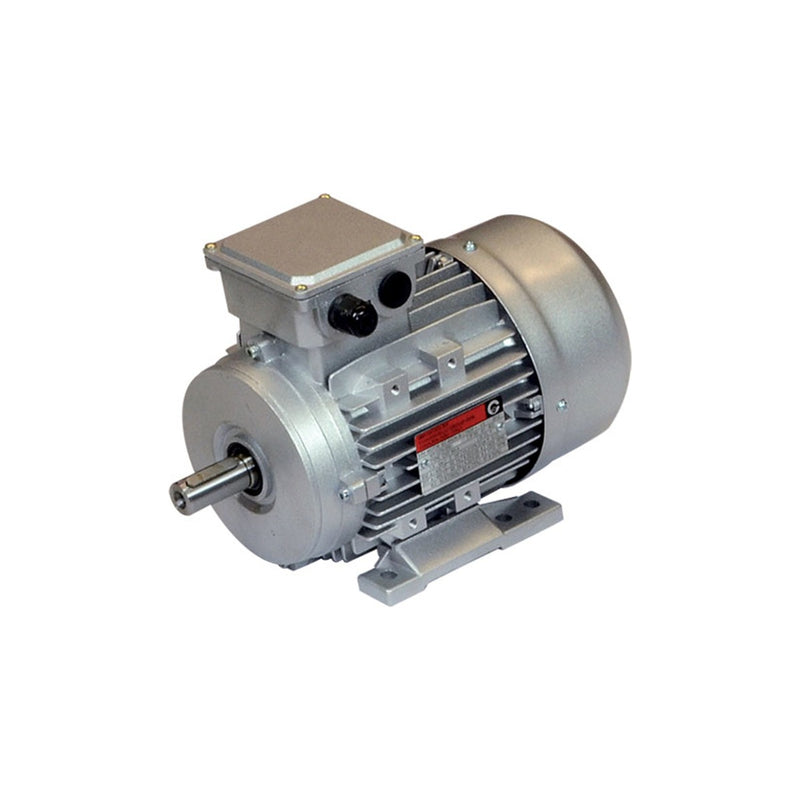

CHT 71 Single-Phase Aluminium Motor (0.25–0.55 kW)
CHT 71 single-phase aluminium motor — IEC frame 71, 2 / 4-pole, 0.25–0.55 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B3, B5 or B14 — the dimension sheet gives the frame 71 mounting dimensions.
How to pick from the table: choose the pole count for the speed you need, then the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Poles | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 71 A 4P 1PH |
A4
|
4
|
0.25 kW
|
1320 r/min
|
1.8 Nm
|
2 A
|
56.6 %
|
0.98
|
16 µF
|
0.8
|
2
|
2.1
|
0.0008 kg m²
|
6.2 kg
|
CHT 71 A 2P 1PH |
A2
|
2
|
0.37 kW
|
2650 r/min
|
1.3 Nm
|
2.6 A
|
62.7 %
|
0.98
|
16 µF
|
0.8
|
1.7
|
2.6
|
0.0004 kg m²
|
6.8 kg
|
CHT 71 B 4P 1PH |
B4
|
4
|
0.37 kW
|
1320 r/min
|
2.7 Nm
|
3 A
|
58.9 %
|
0.98
|
20 µF
|
0.8
|
2
|
2.1
|
0.001 kg m²
|
6.7 kg
|
CHT 71 B 2P 1PH |
B2
|
2
|
0.55 kW
|
2700 r/min
|
1.9 Nm
|
3.5 A
|
65.9 %
|
0.98
|
20 µF
|
0.8
|
1.7
|
2.7
|
0.0005 kg m²
|
7.5 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, poles, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — B3, B5 and B14 mounting dimensions are on the dimension sheet.
