CHT 80 Single-Phase Aluminium Motor (0.55–1.1 kW)

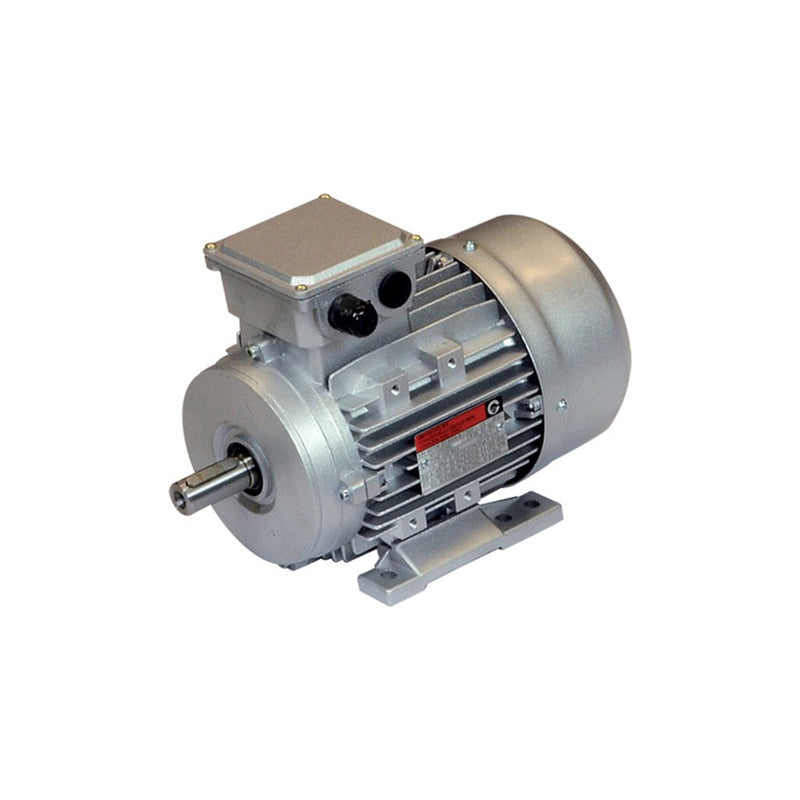

CHT 80 single-phase aluminium motor — IEC frame 80, 2 / 4-pole, 0.55–1.1 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B3, B5 or B14 — the dimension sheet gives the frame 80 mounting dimensions.
How to pick from the table: choose the pole count for the speed you need, then the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Poles | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 80 A 4P 1PH |
A4
|
4
|
0.55 kW
|
1350 r/min
|
3.9 Nm
|
3.7 A
|
64.2 %
|
0.98
|
25 µF
|
0.7
|
1.8
|
2.7
|
0.0017 kg m²
|
11.0 kg
|
CHT 80 A 2P 1PH |
A2
|
2
|
0.75 kW
|
2700 r/min
|
2.7 Nm
|
4.9 A
|
67.8 %
|
0.98
|
30 µF
|
0.8
|
1.8
|
2.6
|
0.001 kg m²
|
10.0 kg
|
CHT 80 B 4P 1PH |
B4
|
4
|
0.75 kW
|
1350 r/min
|
5.3 Nm
|
5.1 A
|
65.1 %
|
0.99
|
35 µF
|
0.7
|
1.7
|
2.7
|
0.0022 kg m²
|
12.0 kg
|
CHT 80 B 2P 1PH |
B2
|
2
|
1.1 kW
|
2700 r/min
|
3.9 Nm
|
6.8 A
|
71.6 %
|
0.98
|
40 µF
|
0.7
|
1.7
|
2.8
|
0.0012 kg m²
|
11.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, poles, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — B3, B5 and B14 mounting dimensions are on the dimension sheet.
- Material
- Aluminium casing
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
