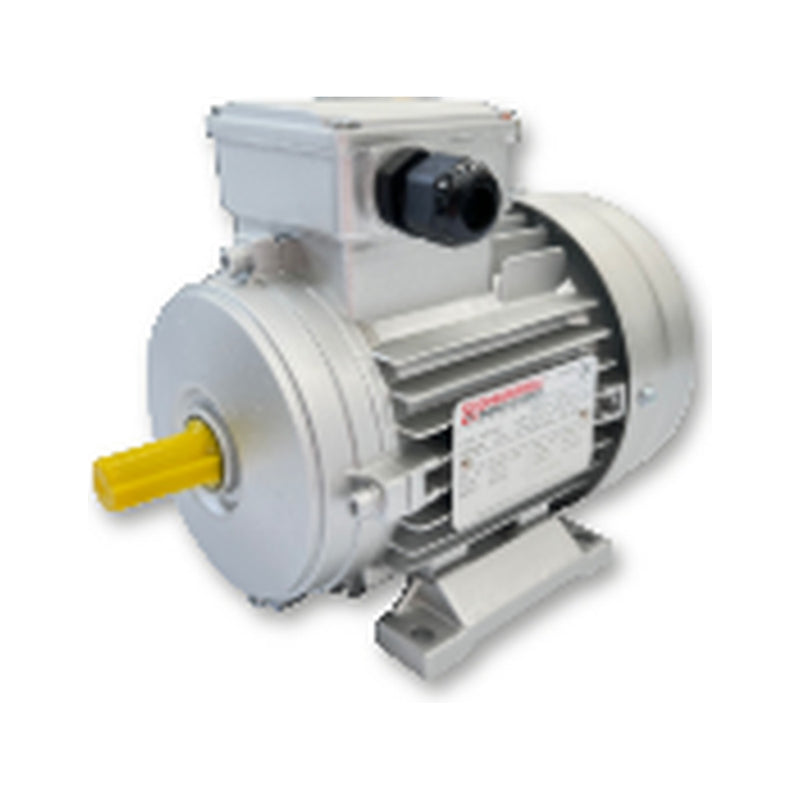

CHT 80 Single-Phase Motor 2-Pole B3 (0.75–1.1 kW)
CHT 80 single-phase motor, 2-pole (about 3000 r/min at 50 Hz), B3 foot mounting — IEC frame 80, 0.75–1.1 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. The dimension sheet gives the frame 80 B3 mounting dimensions; the other mountings are the sibling cards one level up.
How to pick from the table: choose the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, B3 mounting, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Power | Speed | Torque | Current at 230 V | Running capacitor | Weight |
|---|---|---|---|---|---|---|---|
CHT 80 A2 1PH B3 |
A
|
0.75 kW
|
2700 r/min
|
2.7 Nm
|
4.9 A
|
30 µF
|
10.0 kg
|
CHT 80 B2 1PH B3 |
B
|
1.1 kW
|
2700 r/min
|
3.9 Nm
|
6.8 A
|
40 µF
|
11.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, rated power, speed, torque, current and the capacitor rating, with the weight last. Pick the power you need.
Mounting
This page is one mounting — B14 (face flange, our most common fit on gearboxes), B5 or B3 (foot); the mounting dimensions are on the dimension sheet. The other mountings are the sibling cards one level up.
- Material
- Aluminium casing
