CHT 90 Single-Phase Aluminium Motor (1.1–2.2 kW)

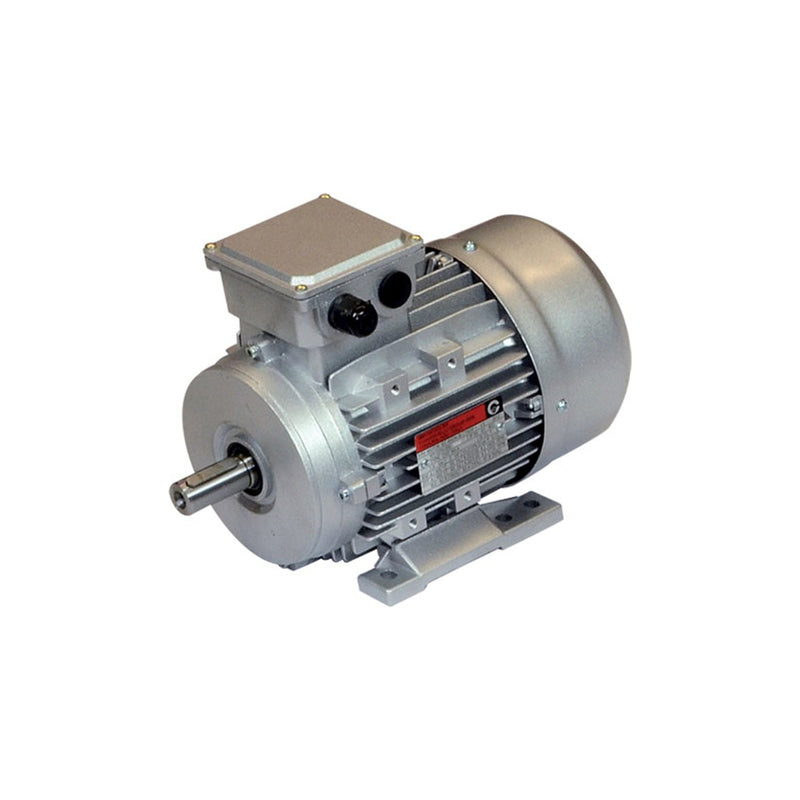

CHT 90 single-phase aluminium motor — IEC frame 90, 2 / 4-pole, 1.1–2.2 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B3, B5 or B14 — the dimension sheet gives the frame 90 mounting dimensions.
How to pick from the table: choose the pole count for the speed you need, then the power; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1.
| Code | Type | Poles | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 90 S 4P 1PH |
S4
|
4
|
1.1 kW
|
1350 r/min
|
7.8 Nm
|
7 A
|
68.5 %
|
0.99
|
50 µF
|
0.6
|
1.7
|
2.7
|
0.0031 kg m²
|
15.0 kg
|
CHT 90 S 2P 1PH |
S2
|
2
|
1.5 kW
|
2800 r/min
|
5.1 Nm
|
8.7 A
|
75.4 %
|
0.99
|
60 µF
|
0.7
|
1.9
|
3.6
|
0.0019 kg m²
|
15.0 kg
|
CHT 90 L 4P 1PH |
L4
|
4
|
1.5 kW
|
1350 r/min
|
10.6 Nm
|
9.2 A
|
71.3 %
|
0.99
|
65 µF
|
0.6
|
1.7
|
2.9
|
0.0045 kg m²
|
18.0 kg
|
CHT 90 L 2P 1PH |
L2
|
2
|
2.2 kW
|
2800 r/min
|
7.5 Nm
|
13.1 A
|
77.1 %
|
0.99
|
80 µF
|
0.7
|
2
|
3.7
|
0.0026 kg m²
|
18.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the type, poles, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Fitting to a gearbox
The frame size is the IEC size the gearbox flange is specified by — B3, B5 and B14 mounting dimensions are on the dimension sheet.
