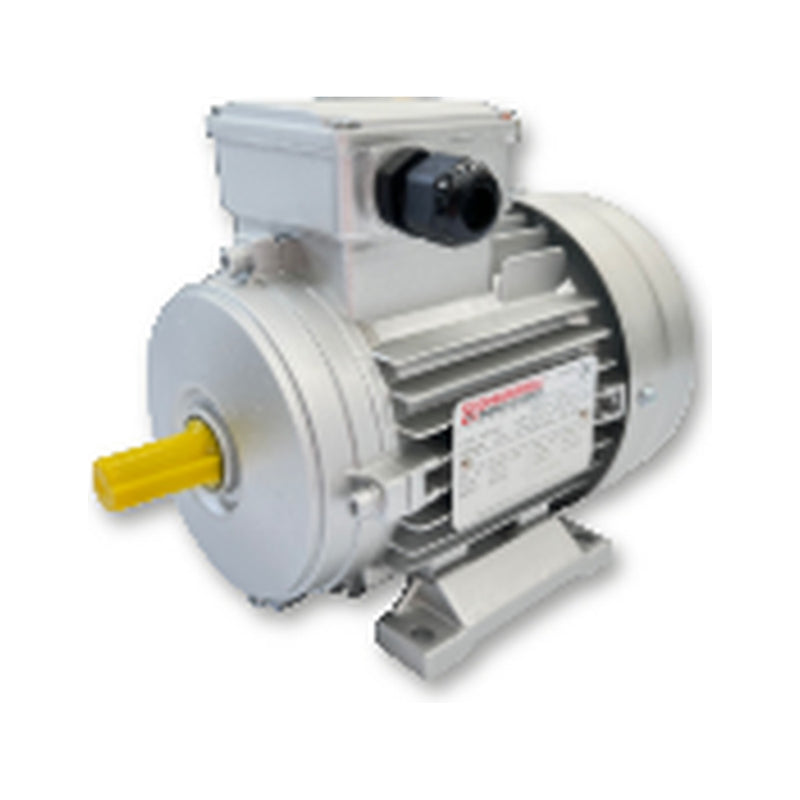

CHT 90 Single-Phase Motor 4-Pole (1.1–1.5 kW)
CHT 90 single-phase motor, 4-pole (about 1500 r/min at 50 Hz) — IEC frame 90, 1.1–1.5 kW, 230 V 50 Hz with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Aluminium casing, IP55, class F insulation, IC411 fan cooling, duty S1. Mounting B14 (face flange — our most common fit on gearboxes), B5 or B3: pick it in the table's Mounting filter; the dimension sheet gives the frame 90 mounting dimensions.
How to pick from the table: choose the power and the mounting; the capacitor column is the running capacitor fitted. The type letter is the motor's length designation within the frame.
Product Configuration
Select a row to add it to your quote
Single-phase 230 V 50 Hz, running capacitor (double capacitors for high starting torque); IP55, insulation class F, IC411; duty S1. The table opens on the B14 mounting — switch the filter for B5 or B3.
| Code | Mounting | Type | Power | Speed | Torque | Current at 230 V | Efficiency | cos φ | Running capacitor | Ms / Mn | Mmax / Mn | Is / In | J0 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CHT 90 S4 1PH B14 |
B14
|
S
|
1.1 kW
|
1350 r/min
|
7.8 Nm
|
7 A
|
68.5 %
|
0.99
|
50 µF
|
0.6
|
1.7
|
2.7
|
0.0031 kg m²
|
15.0 kg
|
CHT 90 L4 1PH B14 |
B14
|
L
|
1.5 kW
|
1350 r/min
|
10.6 Nm
|
9.2 A
|
71.3 %
|
0.99
|
65 µF
|
0.6
|
1.7
|
2.9
|
0.0045 kg m²
|
18.0 kg
|
CHT 90 S4 1PH B5 |
B5
|
S
|
1.1 kW
|
1350 r/min
|
7.8 Nm
|
7 A
|
68.5 %
|
0.99
|
50 µF
|
0.6
|
1.7
|
2.7
|
0.0031 kg m²
|
15.0 kg
|
CHT 90 L4 1PH B5 |
B5
|
L
|
1.5 kW
|
1350 r/min
|
10.6 Nm
|
9.2 A
|
71.3 %
|
0.99
|
65 µF
|
0.6
|
1.7
|
2.9
|
0.0045 kg m²
|
18.0 kg
|
CHT 90 S4 1PH B3 |
B3
|
S
|
1.1 kW
|
1350 r/min
|
7.8 Nm
|
7 A
|
68.5 %
|
0.99
|
50 µF
|
0.6
|
1.7
|
2.7
|
0.0031 kg m²
|
15.0 kg
|
CHT 90 L4 1PH B3 |
B3
|
L
|
1.5 kW
|
1350 r/min
|
10.6 Nm
|
9.2 A
|
71.3 %
|
0.99
|
65 µF
|
0.6
|
1.7
|
2.9
|
0.0045 kg m²
|
18.0 kg
|
No products match the selected filters.
Product Information
Reading the table
Single-phase 230 V 50 Hz motors with a running capacitor (double capacitors, main and auxiliary, for high starting torque). Each row gives the mounting, type, rated power, speed, torque, current, efficiency, power factor and the capacitor rating; "Show starting and part-load data" adds the starting ratios and the rotor inertia.
Mounting
The table opens on B14 (face flange) — our most common fit on gearboxes. Switch the Mounting filter to B5 or B3 (foot) for those versions; the mounting dimensions are on the dimension sheet.
