CHT® Belt Tensioner CHT-TRU

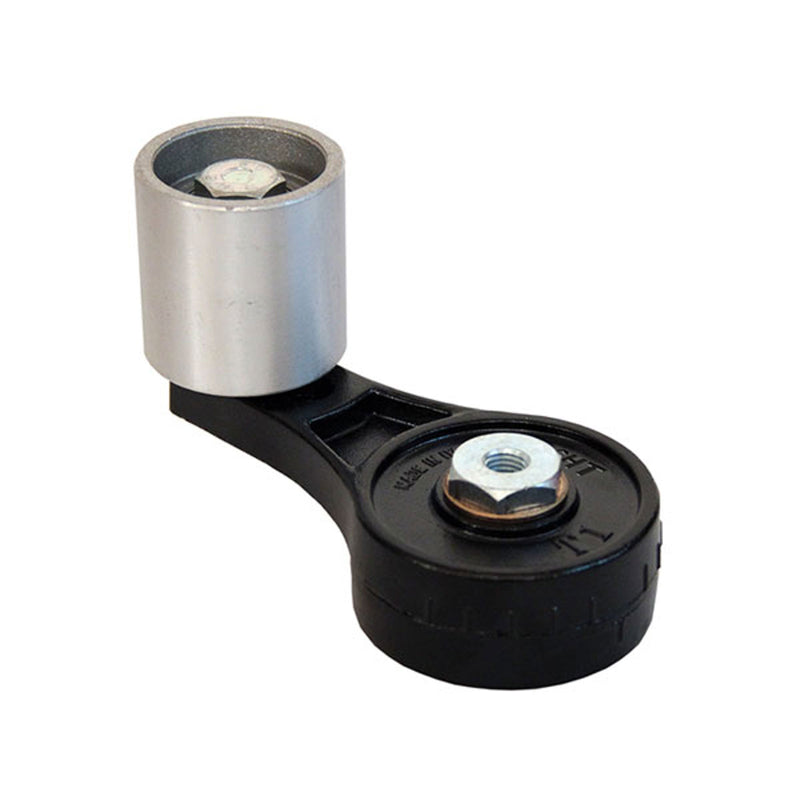

Belt Tensioner CHT-TRU — Chiaravalli CHT® tensioner (catalogue page 27).

belt tensioner CHT-TRU. T with belt tensioner roller RU. sintered bronze self-lubricating bushes. version with Stainless Steel pin and available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Select a row to add it to your quote

Code	Type	Roller	Newton H1	Newton H2	P	Q Ø	R	Weight
`94031235`	`TRU1 - 3035`	`Stainless steel`	`180`	`250`	`53` mm	`30` mm	`35` mm	`0.51` kg
`94031135`	`TRU1 - 3035`	`Polyamide`	`180`	`250`	`53` mm	`30` mm	`35` mm	`0.43` kg
`94031035`	`TRU1 - 3035`	`Aluminium`	`180`	`250`	`53` mm	`30` mm	`35` mm	`0.45` kg
`94031245`	`TRU1 - 4045`	`Stainless steel`	`180`	`250`	`66` mm	`40` mm	`45` mm	`0.7` kg
`94031145`	`TRU1 - 4045`	`Polyamide`	`180`	`250`	`66` mm	`40` mm	`45` mm	`0.53` kg
`94031045`	`TRU1 - 4045`	`Aluminium`	`180`	`250`	`66` mm	`40` mm	`45` mm	`0.57` kg
`94031250`	`TRU1 - 5050`	`Stainless steel`	`180`	`250`	`67` mm	`50` mm	`50` mm	`0.97` kg
`94031150`	`TRU1 - 5050`	`Polyamide`	`180`	`250`	`67` mm	`50` mm	`50` mm	`0.59` kg
`94031050`	`TRU1 - 5050`	`Aluminium`	`180`	`250`	`67` mm	`50` mm	`50` mm	`0.65` kg
`94032250`	`TRU2 - 5050`	`Stainless steel`	`340`	`440`	`70` mm	`50` mm	`50` mm	`1.22` kg
`94032150`	`TRU2 - 5050`	`Polyamide`	`340`	`440`	`70` mm	`50` mm	`50` mm	`0.84` kg
`94032050`	`TRU2 - 5050`	`Aluminium`	`340`	`440`	`70` mm	`50` mm	`50` mm	`0.9` kg
`94032260`	`TRU2 - 6060`	`Stainless steel`	`340`	`440`	`80` mm	`60` mm	`60` mm	`1.69` kg
`94032160`	`TRU2 - 6060`	`Polyamide`	`340`	`440`	`80` mm	`60` mm	`60` mm	`0.94` kg
`94032060`	`TRU2 - 6060`	`Aluminium`	`340`	`440`	`80` mm	`60` mm	`60` mm	`1.06` kg

CAD / datasheet for selected variant
