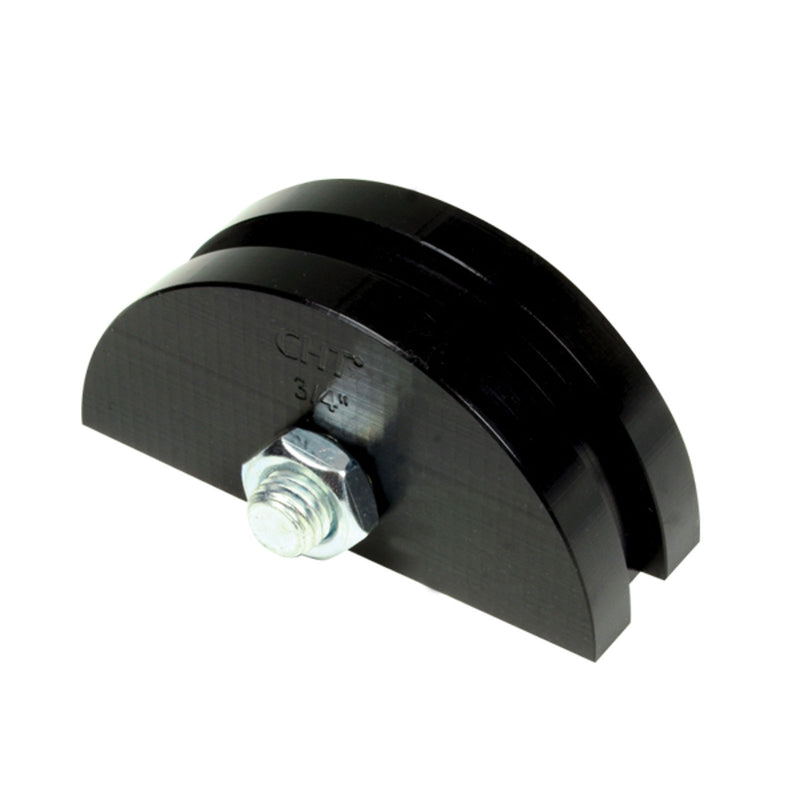

Chiaravalli CHT® Chain Slider CHT-GA / GE / GO — product photo
Chiaravalli

CHT® Chain Slider CHT-GA / GE / GO

Chain Slider Type CHT-GA - GE - GO — Chiaravalli CHT® tensioner (catalogue page 40).

  • High-density (1.000.000) UHMW polyethylene chain sliding block
  • Provided with a bushing kit that allows free movement of the sliding block, only for GE

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchB1B2B3LMHR Weight CAD
94090901 GE - 3/8” Single 3/8 x 7/32” 20 mm 20 mm — 34 mm M8 70 +2/-0 mm 42 mm 0.1 kg
94090902 GE - 3/8” Double 3/8 x 7/32” 20 mm 20 mm — 34 mm M8 70 +2/-0 mm 42 mm 0.1 kg
94090903 GE - 3/8” Triple 3/8 x 7/32” — — 25 mm 34 mm M10 70 +2/-0 mm 42 mm 0.1 kg
94091201 GE - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 42 mm 0.11 kg
94091203 GE - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 42 mm 0.11 kg
94091202 GE - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 42 mm 0.11 kg
94091501 GE - 5/8” Single 5/8” x 3/8” 20 mm 25 mm — 44 mm M10 90 +2/-0 mm 54 mm 0.17 kg
94091502 GE - 5/8” Double 5/8” x 3/8” 20 mm 25 mm — 44 mm M10 90 +2/-0 mm 54 mm 0.17 kg
94091503 GE - 5/8” Triple 5/8” x 3/8” — — 40 mm 44 mm M12 90 +2/-0 mm 54 mm 0.17 kg
94093401 GE - 3/4” M10 Single 3/4” x 7/16” 20 mm 30 mm — 44 mm M10 90 +2/-0 mm 54 mm 0.19 kg
94093402 GE - 3/4” M10 Double 3/4” x 7/16” 20 mm 30 mm — 44 mm M10 90 +2/-0 mm 54 mm 0.19 kg
94091901 GE - 3/4” M12 Single 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 54 mm 0.19 kg
94091903 GE - 3/4” M12 Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 54 mm 0.19 kg
94091902 GE - 3/4” M12 Double 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 54 mm 0.19 kg
94092501 GE - 1” M12 Single 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 110 +2/-0 mm 66 mm 0.28 kg
94092503 GE - 1” M12 Triple 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 110 +2/-0 mm 66 mm 0.28 kg
94092502 GE - 1” M12 Double 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 110 +2/-0 mm 66 mm 0.28 kg
94092603 GE - 1” M20 Triple 1” x 17 mm — 45 mm 78 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94092602 GE - 1” M20 Double 1” x 17 mm — 45 mm 78 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093101 GE - 1” 1/4 Single 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093103 GE - 1” 1/4 Triple 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093102 GE - 1” 1/4 Double 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093801 GE - 1” 1/2 Single 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093803* GE - 1” 1/2 Triple 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94093802 GE - 1” 1/2 Double 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 66 mm 0.28 kg
94110901 GO - 3/8” Single 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm M8 70 +2/-0 mm 35 mm 0.1 kg
94110903 GO - 3/8” Triple 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm M8 70 +2/-0 mm 35 mm 0.1 kg
94110902 GO - 3/8” Double 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm M8 70 +2/-0 mm 35 mm 0.1 kg
94111201 GO - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 35 mm 0.11 kg
94111203 GO - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 35 mm 0.11 kg
94111202 GO - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm M10 70 +2/-0 mm 35 mm 0.11 kg
94111501 GO - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm M10 90 +2/-0 mm 45 mm 0.17 kg
94111503 GO - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm M10 90 +2/-0 mm 45 mm 0.17 kg
94111502 GO - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm M10 90 +2/-0 mm 45 mm 0.17 kg
94111901 GO - 3/4” Single 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 45 mm 0.19 kg
94111903 GO - 3/4” Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 45 mm 0.19 kg
94111902 GO - 3/4” Double 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm M12 90 +2/-0 mm 45 mm 0.19 kg
94112501 GO - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 90 +2/-0 mm 55 mm 0.28 kg
94112503 GO - 1” Triple 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 90 +2/-0 mm 55 mm 0.28 kg
94112502 GO - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 54 mm M12 90 +2/-0 mm 55 mm 0.28 kg
94113101 GO - 1” 1/4 Single 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94113103 GO - 1” 1/4 Triple 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94113102 GO - 1” 1/4 Double 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94113801 GO - 1” 1/2 Single 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94113803* GO - 1” 1/2 Triple 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94113802 GO - 1” 1/2 Double 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm M20 110 +2/-0 mm 55 mm 0.28 kg
94080901 GA - 3/8” Single 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm M8 140 +2/-0 mm 120 mm 0.16 kg
94080903 GA - 3/8” Triple 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm M8 140 +2/-0 mm 120 mm 0.16 kg
94080902 GA - 3/8” Double 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm M8 140 +2/-0 mm 120 mm 0.16 kg
94081201 GA - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm M10 140 +2/-0 mm 120 mm 0.16 kg
94081203 GA - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm M10 140 +2/-0 mm 120 mm 0.16 kg
94081202 GA - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm M10 140 +2/-0 mm 120 mm 0.16 kg
94081501 GA - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm M10 140 +2/-0 mm 140 mm 0.23 kg
94081503 GA - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm M10 140 +2/-0 mm 140 mm 0.23 kg
94081502 GA - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm M10 140 +2/-0 mm 140 mm 0.23 kg
94081901 GA - 3/4” Single 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm M12 140 +2/-0 mm 140 mm 0.23 kg
94081903 GA - 3/4” Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm M12 140 +2/-0 mm 140 mm 0.23 kg
94081902 GA - 3/4” Double 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm M12 140 +2/-0 mm 140 mm 0.23 kg
94082501 GA - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 39 mm M12 140 +2/-0 mm 160 mm 0.3 kg
94082503 GA - 1” Triple 1” x 17 mm 25 mm 45 mm 78 mm 39 mm M12 140 +2/-0 mm 160 mm 0.3 kg
94082502 GA - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 39 mm M12 140 +2/-0 mm 160 mm 0.3 kg
