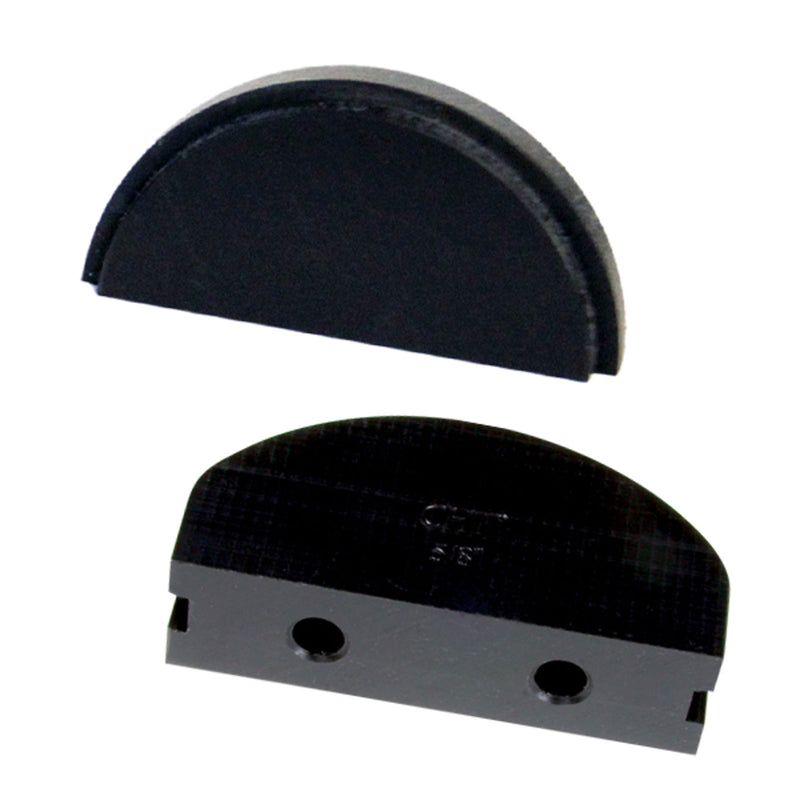

Chiaravalli CHT® Chain Slider Replacement ASGE / ASGO / ASGA — product photo
Chiaravalli

CHT® Chain Slider Replacement ASGE / ASGO / ASGA

Chain Slider - Replacement ASGE - ASGO - ASGA — Chiaravalli CHT® tensioner (catalogue page 41).

  • (1.000.000) UHMW polyethylene sliding block. available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchB1B2B3LHR Weight CAD
94ASGE138SR ASGE 1 - 3/8” Single 3/8 x 7/32” 20 mm 20 mm — 34 mm 70 mm 42 mm 0.1 kg
94ASGE138DR ASGE 1 - 3/8” Double 3/8 x 7/32” 20 mm 20 mm — 34 mm 70 mm 42 mm 0.1 kg
94ASGE138TR ASGE 1 - 3/8” Triple 3/8 x 7/32” — — 25 mm 34 mm 70 mm 42 mm 0.1 kg
94ASGE112SR ASGE 1 - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 42 mm 0.11 kg
94ASGE112SDR ASGE 1 - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 42 mm 0.11 kg
94ASGE112TR ASGE 1 - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 42 mm 0.11 kg
94ASGE158SR ASGE 1 - 5/8” Single 5/8” x 3/8” 20 mm 25 mm — 44 mm 90 mm 54 mm 0.17 kg
94ASGE158DR ASGE 1 - 5/8” Double 5/8” x 3/8” 20 mm 25 mm — 44 mm 90 mm 54 mm 0.17 kg
94ASGE158TR ASGE 1 - 5/8” Triple 5/8” x 3/8” — — 40 mm 44 mm 90 mm 54 mm 0.17 kg
94ASGE258SR ASGE 2 - 5/8” Single 5/8” x 3/8” 20 mm — 40 mm 44 mm 90 mm 54 mm 0.17 kg
94ASGE258DR ASGE 2 - 5/8” Double 5/8” x 3/8” 20 mm — 40 mm 44 mm 90 mm 54 mm 0.17 kg
94ASGE258TR ASGE 2 - 5/8” Triple 5/8” x 3/8” 20 mm — 40 mm 44 mm 90 mm 54 mm 0.17 kg
94ASGE234SR ASGE 2 - 3/4” Single 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 54 mm 0.19 kg
94ASGE234DR ASGE 2 - 3/4” Double 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 54 mm 0.19 kg
94ASGE234TR ASGE 2 - 3/4” Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 54 mm 0.19 kg
94ASGE21SR ASGE 2 - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE21DR ASGE 2 - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE31SR ASGE 3 - 1” Single 1” x 17 mm — 45 mm 78 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE31DR ASGE 3 - 1” Double 1” x 17 mm — 45 mm 78 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE31TR ASGE 3 - 1” Triple 1” x 17 mm — 45 mm 78 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3114SR ASGE 3 - 1” 1/4 Single 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3114DR ASGE 3 - 1” 1/4 Double 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3114TR ASGE 3 - 1” 1/4 Triple 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3112SR ASGE 3 - 1” 1/2 Single 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3112DR ASGE 3 - 1” 1/2 Double 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3112TR ASGE 3 - 1” 1/2 Triple 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 66 mm 0.28 kg
94ASGE3134SR ASGE 3 - 1” 3/4 Single 1” 3/4 x 1” 1/4 25 mm — — 54 mm 110 mm 66 mm 0.28 kg
94ASGE32SR ASGE 3 - 2” Single 2” x 1” 1/4 30 mm — — 54 mm 110 mm 66 mm 0.28 kg
94ASGO138SR ASGO 1 - 3/8” Single 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm 70 mm 35 mm 0.1 kg
94ASGO138DR ASGO 1 - 3/8” Double 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm 70 mm 35 mm 0.1 kg
94ASGO138TR ASGO 1 - 3/8” Triple 3/8 x 7/32” 20 mm 20 mm 25 mm 34 mm 70 mm 35 mm 0.1 kg
94ASGO112SR ASGO 1 - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 35 mm 0.11 kg
94ASGO112DR ASGO 1 - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 35 mm 0.11 kg
94ASGO112TR ASGO 1 - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 34 mm 70 mm 35 mm 0.11 kg
94ASGO158SR ASGO 1 - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO158DR ASGO 1 - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO158TR ASGO 1 - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO258SR ASGO 2 - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO258DR ASGO 2 - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO258TR ASGO 2 - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 44 mm 90 mm 45 mm 0.17 kg
94ASGO234SR ASGO 2 - 3/4” Single 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 45 mm 0.19 kg
94ASGO234DR ASGO 2 - 3/4” Double 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 45 mm 0.19 kg
94ASGO234TR ASGO 2 - 3/4” Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 44 mm 90 mm 45 mm 0.19 kg
94ASGO21SR ASGO 2 - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO21DR ASGO 2 - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO31SR ASGO 3 - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO31DR ASGO 3 - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO31TR ASGO 3 - 1” Triple 1” x 17 mm 25 mm 45 mm 78 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3114SR ASGO 3 - 1” 1/4” Single 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3114DR ASGO 3 - 1” 1/4” Double 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3114TR ASGO 3 - 1” 1/4” Triple 1” x 1/4 x 3/4” 25 mm 54 mm 90 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3112SR ASGO 3 - 1” 1/2” Single 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3112DR ASGO 3 - 1” 1/2” Double 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3112TR ASGO 3 - 1” 1/2” Triple 1” x 1/2 x 1” 25 mm 71 mm 119 mm 54 mm 110 mm 55 mm 0.28 kg
94ASGO3134SR ASGO 3 - 1” 3/4” Single 1” 3/4 x 1” 1/4 20 mm — — 44 mm 90 mm 45 mm 0.19 kg
94ASGO32SR ASGO 3 - 2” Single 2” x 1” 1/4 30 mm — — 15 mm 88 mm 54 mm 0.19 kg
94ASGA138SR ASGA 1 - 3/8” Single 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA138DR ASGA 1 - 3/8” Double 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA138TR ASGA 1 - 3/8” Triple 3/8 x 7/32” 20 mm 20 mm 25 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA112SR ASGA 1 - 1/2” Single 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA112DR ASGA 1 - 1/2” Double 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA112TR ASGA 1 - 1/2” Triple 1/2” x 5/16” 20 mm 20 mm 35 mm 39 mm 140 mm 120 mm 0.16 kg
94ASGA158SR ASGA 1 - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA158DR ASGA 1 - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA158TR ASGA 1 - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA258SR ASGA 2 - 5/8” Single 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA258DR ASGA 2 - 5/8” Double 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA258TR ASGA 2 - 5/8” Triple 5/8” x 3/8” 20 mm 25 mm 40 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA234SR ASGA 2 - 3/4” Single 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA234DR ASGA 2 - 3/4” Double 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA234TR ASGA 2 - 3/4” Triple 3/4” x 7/16” 20 mm 30 mm 49 mm 39 mm 140 mm 140 mm 0.23 kg
94ASGA31SR ASGA 3 - 1” Single 1” x 17 mm 25 mm 45 mm 78 mm 39 mm 140 mm 160 mm 0.3 kg
94ASGA31DR ASGA 3 - 1” Double 1” x 17 mm 25 mm 45 mm 78 mm 39 mm 140 mm 160 mm 0.3 kg
94ASGA31TR ASGA 3 - 1” Triple 1” x 17 mm 25 mm 45 mm 78 mm 39 mm 140 mm 160 mm 0.3 kg
94ASGA3114SR ASGA 3 - 1” 1/4” Single 1” 1/4 x 3/4 25 mm 54 mm 90 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA3114DR ASGA 3 - 1” 1/4” Double 1” 1/4 x 3/4 25 mm 54 mm 90 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA3114TR ASGA 3 - 1” 1/4” Triple 1” 1/4 x 3/4 25 mm 54 mm 90 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA3112SR ASGA 3 - 1” 1/2” Single 1” x 1/2 x 1” 25 mm 71 mm 119 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA3112DR ASGA 3 - 1” 1/2” Double 1” x 1/2 x 1” 25 mm 71 mm 119 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA3112TR ASGA 3 - 1” 1/2” Triple 1” x 1/2 x 1” 25 mm 71 mm 119 mm 17.5 mm 108 mm 66 mm 0.28 kg
94ASGA32SR ASGA 3 - 2” Single 2” x 1” 1/4 30 mm — — 44 mm 90 mm 45 mm 0.19 kg
