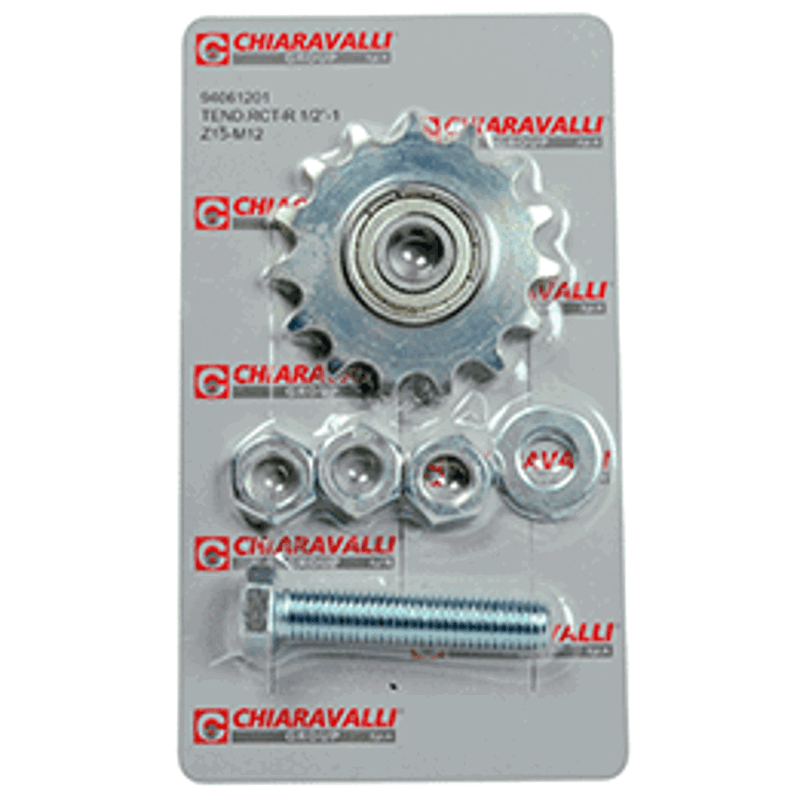

Chiaravalli CHT® Chain Tensioner Sprocket CHT-R — product photo
Chiaravalli

CHT® Chain Tensioner Sprocket CHT-R

Chain Tensioner Sprocket CHT-R — Chiaravalli CHT® tensioner (catalogue page 42).

  • Galvanized chain tensioner sprockets complete with self-lubricating 2Z ball bearings and accessories for mounting on CHT-L, CHT-T, CHT- AS, and CHT-E tensioners

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchZ teethABCD h14MGEF Weight CAD
94060911 R 3/8” M10 Single 3/8” 15 10 mm 8 mm 26 mm 5.3 mm M10 55 mm 55 mm — 0.15 kg
94060912 R 3/8” M10 Double 3/8” 15 10 mm 8 mm 26 mm 5.3 mm M10 55 mm 55 mm — 0.23 kg
94060901 R 3/8” M12 Single 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.13 kg
94060903 R 3/8” M12 Triple 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.26 kg
94060902 R 3/8” M12 Double 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.21 kg
94061201 R 1/2” M12 Single 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.18 kg
94061203 R 1/2” M12 Triple 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.5 kg
94061202 R 1/2” M12 Double 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.35 kg
94061211 R 1/2” M10 Single 1/2” 15 10 mm 9 mm 30 mm 7.2 mm M10 55 mm 60 mm — 0.2 kg
94061212 R 1/2” M10 Double 1/2” 15 10 mm 9 mm 30 mm 7.2 mm M10 55 mm 60 mm — 0.37 kg
94061501 R 5/8” M12 Single 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.35 kg
94061503 R 5/8” M12 Triple 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.95 kg
94061502 R 5/8” M12 Double 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.6 kg
94061523 R 5/8” M20 Triple 5/8” 15 20 mm 12 mm 42 mm 9.1 mm M20 — — 120 mm 1.3 kg
94061901 R 3/4” M12 Single 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 0.55 kg
94061903 R 3/4” M12 Triple 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 1.4 kg
94061902 R 3/4” M12 Double 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 1.0 kg
94061921 R 3/4” M20 Single 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 0.85 kg
94061923 R 3/4” M20 Triple 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 1.6 kg
94061922 R 3/4” M20 Double 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 1.35 kg
94062501 R 1” M12 Single 1” 12 12 mm 12 mm 37 mm 16.2 mm M12 100 mm 100 mm — 0.9 kg
94062502 R 1” M12 Double 1” 12 12 mm 12 mm 37 mm 16.2 mm M12 100 mm 100 mm — 1.7 kg
94062521 R 1” M20 Single 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 1.0 kg
94062523 R 1” M20 Triple 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 2.7 kg
94062522 R 1” M20 Double 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 1.9 kg
94063121 R 1” 1/4 Single 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 2.0 kg
94063123 R 1” 1/4 Triple 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 5.2 kg
94063122 R 1” 1/4 Double 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 3.6 kg
94063821 R 1” 1/2 Single 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 2.35 kg
94063823 R 1” 1/2 Triple 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 5.8 kg
94063822 R 1” 1/2 Double 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 4.0 kg
