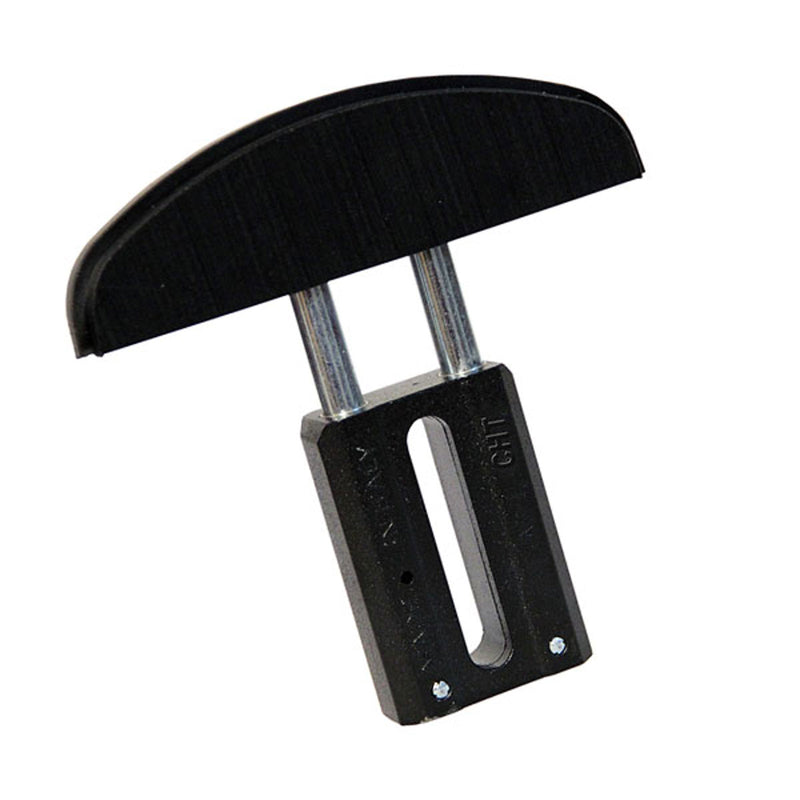

CHT® Linear Belt Tensioner CHT-ASGA

Linear Belt Tensioner CHT-ASGA — Chiaravalli CHT® tensioner (catalogue page 18).

  • AS with high molecular weight ylene UHMW sliding block (1.000.000). profile for long stretches of chain. standard self-lubricating bushes with PTFE. force (N) is calculated through pressure tests in the laboratory, with a tollerance +/- with Stainless Steel springs, studs, plugs washers. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainNewtonChain pitchABB1B2B3CDE minE maxFGHILMR Weight CAD
94200901N ASGA1 - 3/8” Single 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94200903N ASGA1 - 3/8” Triple 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94200902N ASGA1 - 3/8” Double 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201201N ASGA1 - 1/2” Single 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201203N ASGA1 - 1/2” Triple 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201202N ASGA1 - 1/2” Double 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201501N ASGA1 - 5/8” Single 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201503N ASGA1 - 5/8” Triple 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201502N ASGA1 - 5/8” Double 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 140 mm 20 mm 12.5 mm 22 mm 120 mm 0.26 kg
94201511N ASGA2 - 5/8” Single 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.48 kg
94201513N ASGA2 - 5/8” Triple 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.48 kg
94201512N ASGA2 - 5/8” Double 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.48 kg
94201901N ASGA2 - 3/4” Single 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.5 kg
94201903N ASGA2 - 3/4” Triple 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.5 kg
94201902N ASGA2 - 3/4” Double 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 132 mm 164 mm 7 mm 12.5 mm 140 mm 25 mm 15 mm 25.5 mm 140 mm 0.5 kg
94202511N ASGA3 - 1” Single 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94202513N ASGA3 - 1” Triple 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94202512N ASGA3 - 1” Double 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203101N ASGA3 - 1”1/4 Single 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203103N ASGA3 - 1”1/4 Triple 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203102N ASGA3 - 1”1/4 Double 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203801N ASGA3 - 1”1/2 Single 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203803N ASGA3 - 1”1/2 Triple 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94203802N ASGA3 - 1”1/2 Double 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.74 kg
94204401N ASGA3 - 1”3/4 Single 690 1”3/4x1”1/4 80 mm 32.5 mm 31 mm — — 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.79 kg
94205001N ASGA3 - 2” Single 690 2”x1”1/4 80 mm 32.5 mm 30 mm — — 88 mm 104 mm 152 mm 187 mm 8 mm 14.5 mm 140 mm 29.5 mm 17.5 mm 28.5 mm 160 mm 0.79 kg
View supplier page (CAD)
