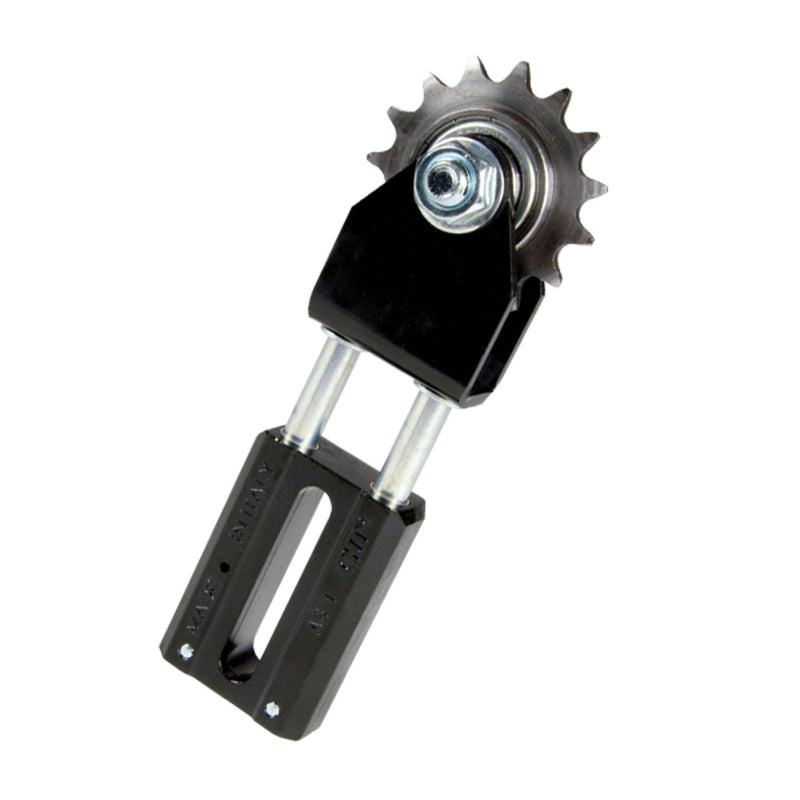

Chiaravalli CHT® Linear Chain Tensioner CHT-ASFR TN — product photo
Chiaravalli

CHT® Linear Chain Tensioner CHT-ASFR TN

Linear Chain Tensioner CHT-ASFR TN — Chiaravalli CHT® tensioner (catalogue page 13).

  • ASFR with chain tensioner sprocket TN standard self-lubricating bushings with PTFE with Stainless S teel springs, studs, plugs washers. with bolts for mounting chain tensioner TN. any obstruction on the mounting surface ASFR-SV versions, which come with flared drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeNewtonABCDE minE maxFGILMORT Weight CAD
94ASFR1SV ASFR1 10 SV 280 50 mm 23 mm 61 mm 74 mm 133 mm 157 mm 6.5 mm 10.5 mm 20 mm 12.5 mm 22 mm 22 mm 13 mm 35 mm 0.39 kg
94ASFR112 ASFR1 12 280 50 mm 23 mm 61 mm 74 mm 133 mm 157 mm 6.5 mm 10.5 mm 20 mm 12.5 mm 22 mm 27 mm 21 mm 48 mm 0.39 kg
94ASFR2SV ASFR2 10 SV 460 67 mm 28 mm 73 mm 87 mm 161 mm 193 mm 7 mm 12.5 mm 25 mm 15 mm 25.5 mm 22 mm 13 mm 35 mm 0.63 kg
94ASFR212 ASFR2 12 460 67 mm 28 mm 73 mm 87 mm 161 mm 193 mm 7 mm 12.5 mm 25 mm 15 mm 25.5 mm 27 mm 21 mm 48 mm 0.63 kg
94ASFR3SV ASFR3 12 SV 690 80 mm 32.5 mm 88 mm 104 mm 188 mm 225 mm 8 mm 14.5 mm 29.5 mm 17.5 mm 28.5 mm 28.7 mm 16.3 mm 45 mm 1.07 kg
94ASFR312 ASFR3 12 690 80 mm 32.5 mm 88 mm 104 mm 188 mm 225 mm 8 mm 14.5 mm 29.5 mm 17.5 mm 28.5 mm 33 mm 17 mm 52 mm 1.07 kg
View supplier page (CAD)
