CHT® Linear Chain Tensioner CHT-ASGE

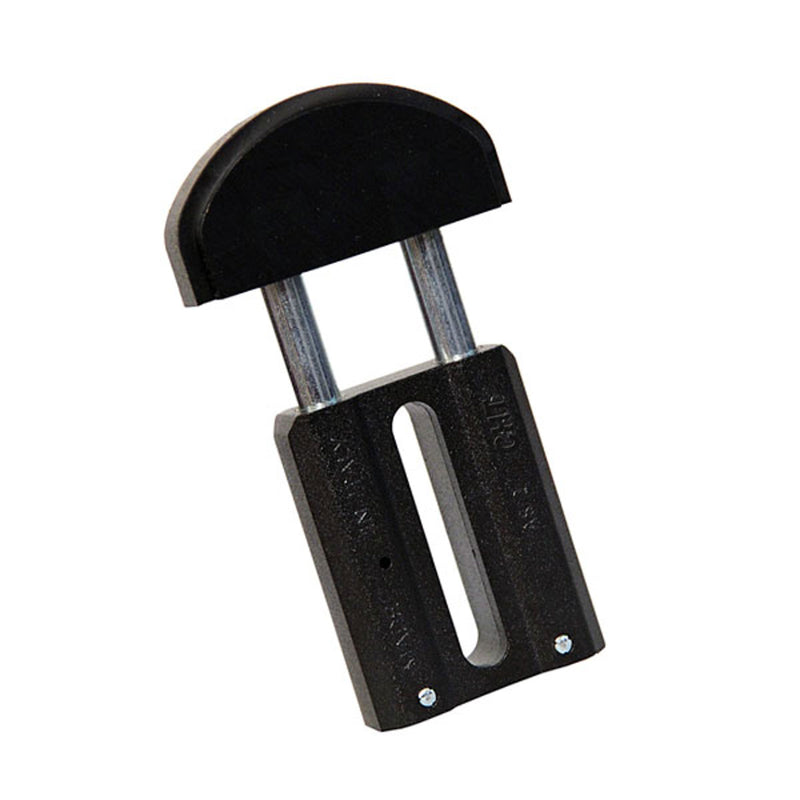

Linear Chain Tensioner CHT-ASGE — Chiaravalli CHT® tensioner (catalogue page 16).

  • Tensioner AS with high molecular weight polyeth ylene UHMW sliding block (1.000.000). Elliptical profile for increased contact surface area on the chain. Dry standard self-lubricating bushes with PTFE. The force (N) is calculated through pressure tests performed in the laboratory, with a tollerance +/- 5%. Available with Stainless Steel springs, studs, plugs and washers. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainNewtonChain pitchABB1B2B3CDE minE maxFGHILMR Weight CAD
94000901N ASGE1 - 3/8” Single 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94000903N ASGE1 - 3/8” Triple 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94000902N ASGE1 - 3/8” Double 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001201N ASGE1 - 1/2 Single 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001203N ASGE1 - 1/2 Triple 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001202N ASGE1 - 1/2 Double 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001501N ASGE1 - 5/8” Single 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001503N ASGE1 - 5/8” Triple 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001502N ASGE1 - 5/8” Double 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94001511N ASGE2 - 5/8” Single 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.44 kg
94001513N ASGE2 - 5/8” Triple 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.44 kg
94001512N ASGE2 - 5/8” Double 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.44 kg
94001911N ASGE2 - 3/4” Single 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.45 kg
94001913N ASGE2 - 3/4” Triple 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.45 kg
94001912N ASGE2 - 3/4” Double 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.45 kg
94002501N ASGE2 - 1” Single 460 1”x17mm 67 mm 28 mm 25 mm 45 mm — 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.46 kg
94002502N ASGE2 - 1” Double 460 1”x17mm 67 mm 28 mm 25 mm 45 mm — 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 +2/-0 mm 25 mm 15 mm 25.5 mm 54 mm 0.46 kg
94002511N ASGE3 - 1” Single 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94002513N ASGE3 - 1” Triple 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94002512N ASGE3 - 1” Double 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003101N ASGE3 - 1”1/4 Single 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003103N ASGE3 - 1”1/4 Triple 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003102N ASGE3 - 1”1/4 Double 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003801N ASGE3-1”1/2 Single 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003803N ASGE3-1”1/2 Triple 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94003802N ASGE3-1”1/2 Double 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.75 kg
94004401N ASGE3 - 1”3/4 Single 690 1”3/4x1”1/4 80 mm 32.5 mm 31 mm — — 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.8 kg
94005001N ASGE3 - 2” Single 690 2”x1”1/4 80 mm 32.5 mm 30 mm — — 88 mm 104 mm 166 mm 202 mm 8 mm 14.5 mm 110 +2/-0 mm 29.5 mm 17.5 mm 28.5 mm 66 mm 0.8 kg
