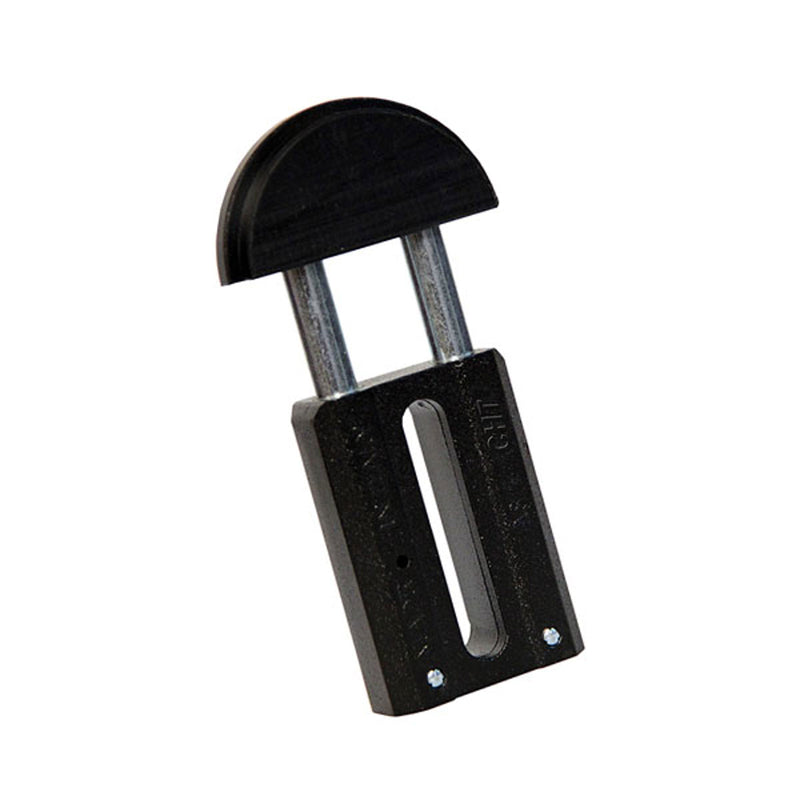

Chiaravalli CHT® Linear Chain Tensioner CHT-ASGO — product photo
Chiaravalli

CHT® Linear Chain Tensioner CHT-ASGO

Linear Chain Tensioner CHT-ASGO — Chiaravalli CHT® tensioner (catalogue page 17).

  • AS with high molecular weight ylene UHMW sliding block (1.000.000).. profile for 180° redirection. standard self-lubricating bushes with PTFE. force (N) is calculated through pressure tests in the laboratory, with a tollerance +/- with Stainless Steel springs, studs, plugs washers. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainNewtonChain pitchABB1B2B3CDE minE maxFGHILMR Weight CAD
94100901N ASGO1 - 3/8” Single 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94100903N ASGO1 - 3/8” Triple 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94100902N ASGO1 - 3/8” Double 280 3/8x7/32” 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101201N ASGO1 - 1/2” Single 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101203N ASGO1 - 1/2” Triple 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101202N ASGO1 - 1/2” Double 280 1/2”x5/16” 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101501N ASGO1 - 5/8” Single 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101503N ASGO1 - 5/8” Triple 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101502N ASGO1 - 5/8” Double 280 5/8”x3/8” 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 74 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 mm 20 mm 12.5 mm 22 mm 35 mm 0.24 kg
94101511N ASGO2 - 5/8” Single 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94101513N ASGO2 - 5/8” Triple 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94101512N ASGO2 - 5/8” Double 460 5/8”x3/8” 67 mm 28 mm 20 mm 25 mm 40 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94101901N ASGO2 - 3/4” Single 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94101903N ASGO2 - 3/4” Triple 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94101902N ASGO2 - 3/4” Double 460 3/4”x7/16” 67 mm 28 mm 20 mm 30 mm 49 mm 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94102501N ASGO2 - 1” Single 460 1”x17mm 67 mm 28 mm 25 mm 45 mm — 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94102503N ASGO2 - 1” Triple 460 1”x17mm 67 mm 28 mm 25 mm 45 mm — 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94102502N ASGO2 - 1” Double 460 1”x17mm 67 mm 28 mm 25 mm 45 mm — 73 mm 87 mm 138 mm 170 mm 7 mm 12.5 mm 90 mm 25 mm 15 mm 25.5 mm 45 mm 0.42 kg
94102511N ASGO3 - 1” Single 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94102513N ASGO3 - 1” Triple 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94102512N ASGO3 - 1” Double 690 1”x17 mm 80 mm 32.5 mm 25 mm 45 mm 78 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103101N ASGO3 - 1”1/4 Single 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103103N ASGO3 - 1”1/4 Triple 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103102N ASGO3 - 1”1/4 Double 690 1”1/4x3/4” 80 mm 32.5 mm 25 mm 54 mm 90 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103801N ASGO3 - 1”1/2 Single 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103803N ASGO3 - 1”1/2 Triple 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94103802N ASGO3 - 1”1/2 Double 690 1”1/2x1” 80 mm 32.5 mm 25 mm 71 mm 119 mm 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.74 kg
94104401N ASGO3 - 1”3/4 Single 690 1”3/4x1”1/4 80 mm 32.5 mm 31 mm — — 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.79 kg
94105001N ASGO3 - 2” Single 690 2”x1”1/4 80 mm 32.5 mm 30 mm — — 88 mm 104 mm 168 mm 202 mm 8 mm 14.5 mm 110 mm 29.5 mm 17.5 mm 28.5 mm 55 mm 0.79 kg
