CHT® Linear Chain Tensioner CHT-ASTN

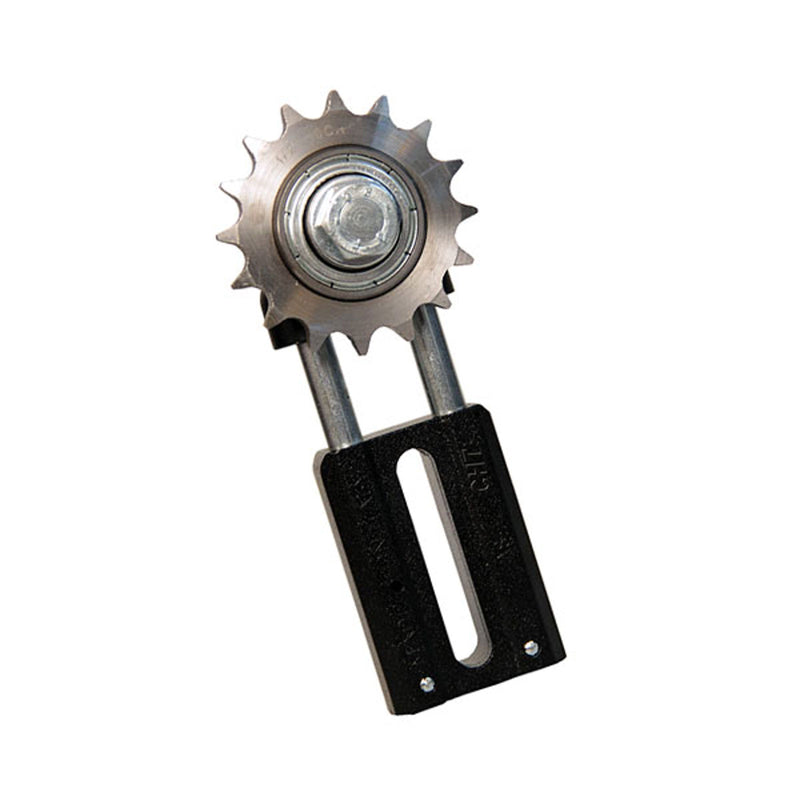

Linear Chain Tensioner CHT-ASTN — Chiaravalli CHT® tensioner (catalogue page 12).

Tensioner AS with tensioner chain sprocket TN Dry standard self-lubricating bushings with PTFE The force (N) is calculated through pressure tests performend in the laboratory. Available with Stainless Steel springs, studs, plugs and washers. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Select a row to add it to your quote

Code	Type	Newton	Chain pitch	Z teeth	A	B	C	D	E min	E max	F	G	I	L	M	N	O	R	Weight
`940210921`	`ASTN1-3/8”21`	`280`	`3/8”x 7/32”`	`21`	`50` mm	`23` mm	`61` mm	`74` mm	`105` mm	`129` mm	`6.5` mm	`10.5` mm	`20` mm	`12.5` mm	`22` mm	`20` mm	`19.2` mm	`9.1` mm	`0.47` kg
`940211216`	`ASTN1-1/2”16`	`280`	`1/2”x 5/16”`	`16`	`50` mm	`23` mm	`61` mm	`74` mm	`105` mm	`129` mm	`6.5` mm	`10.5` mm	`20` mm	`12.5` mm	`22` mm	`20` mm	`19.2` mm	`9.1` mm	`0.49` kg
`940211517`	`ASTN1-5/8”17`	`280`	`5/8”x 3/8”`	`17`	`50` mm	`23` mm	`61` mm	`74` mm	`105` mm	`129` mm	`6.5` mm	`10.5` mm	`20` mm	`12.5` mm	`22` mm	`20` mm	`19.2` mm	`9.1` mm	`0.68` kg

CAD / datasheet for selected variant
