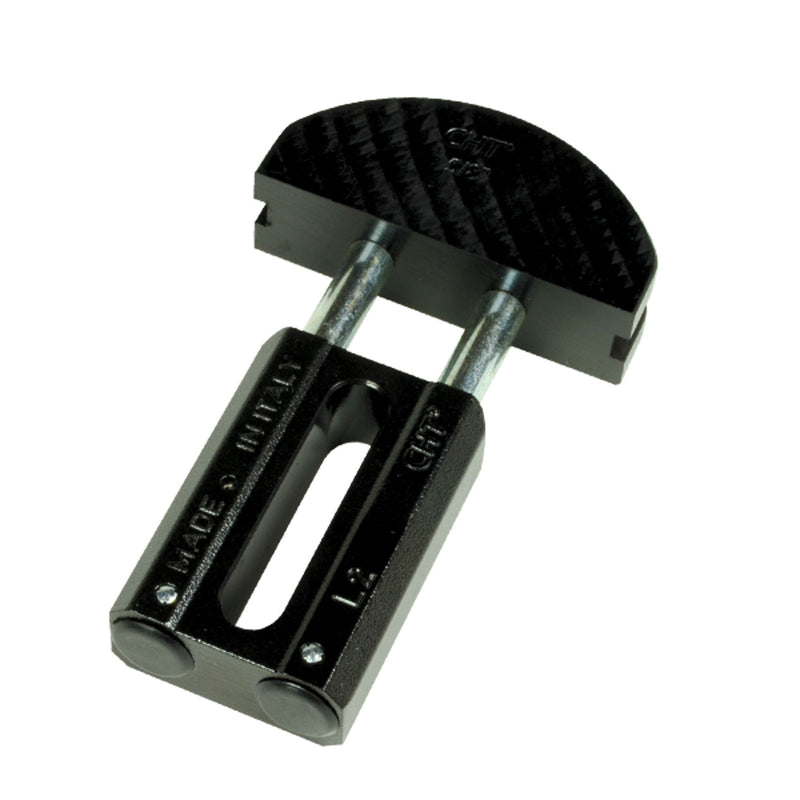

Chiaravalli CHT® Linear Chain Tensioner CHT-LP — product photo
Chiaravalli

CHT® Linear Chain Tensioner CHT-LP

Linear Chain Tensioner CHT-LP — Chiaravalli CHT® tensioner (catalogue page 15).

  • LP: this compact version allows, on the base, the use of different springs and tensioner up to 24B3 molecular weight polyethylene UHMW sliding (1.000.000). profile for increased contact surface area chain. standard self-lubricating bushes with PTFE with stainless steel springs, studs, plugs washers. with the closing caps . drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainNewtonABB1B2B3CE minE maxFGHILMR Weight CAD
94010901 LP 1 3/8” Single 240 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94010902 LP 1 3/8” Double 240 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94010903 LP 1 3/8” Triple 240 50 mm 23 mm 20 mm 20 mm 25 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94011201 LP 1 1/2” Single 240 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94011202 LP 1 1/2” Double 240 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94011203 LP 1 1/2” Triple 240 50 mm 23 mm 20 mm 20 mm 35 mm 61 mm 114 mm 138 mm 6.5 mm 10.5 mm 70 +2/-0 mm 20 mm 12.5 mm 22 mm 42 mm 0.24 kg
94011501 LP 2 5/8” Single 350 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94011502 LP 2 5/8” Double 350 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94011503 LP 2 5/8” Triple 350 50 mm 23 mm 20 mm 25 mm 40 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94011901 LP 2 3/4” Single 350 50 mm 23 mm 20 mm 30 mm 49 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94011902 LP 2 3/4” Double 350 50 mm 23 mm 20 mm 30 mm 49 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94011903 LP 2 3/4” Triple 350 50 mm 23 mm 20 mm 30 mm 49 mm 61 mm 120 mm 142 mm 6.5 mm 12 mm 85 +2/-0 mm 20 mm 12.5 mm 22 mm 50 mm 0.25 kg
94012501 LP 3 1” Single 450 50 mm 23 mm 20 mm 45 mm 78 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94012502 LP 3 1” Double 450 50 mm 23 mm 20 mm 45 mm 78 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94012503 LP 3 1” Triple 450 50 mm 23 mm 20 mm 45 mm 78 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013101 LP 3 1”1/4 Single 450 50 mm 23 mm 20 mm 54 mm 90 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013102 LP 3 1”1/4 Double 450 50 mm 23 mm 20 mm 54 mm 90 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013103 LP 3 1”1/4 Triple 450 50 mm 23 mm 20 mm 54 mm 90 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013801 LP 3 1”1/2 Single 450 50 mm 23 mm 20 mm 70 mm 119 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013802 LP 3 1”1/2 Double 450 50 mm 23 mm 20 mm 70 mm 119 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
94013803 LP 3 1”1/2 Triple 450 50 mm 23 mm 20 mm 70 mm 119 mm 61 mm 118 mm 148 mm 6.5 mm 12 mm 100 +2/-0 mm 20 mm 12.5 mm 22 mm 58 mm 0.27 kg
