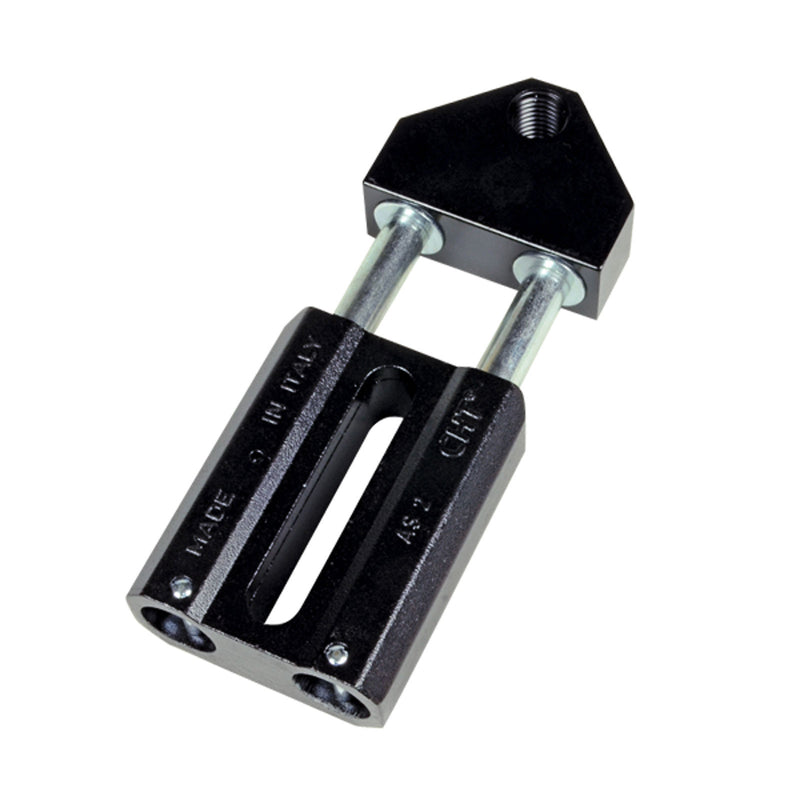

Chiaravalli CHT® Linear Tensioner CHT-AS — product photo
Chiaravalli

CHT® Linear Tensioner CHT-AS

Linear Tensioner CHT-AS — Chiaravalli CHT® tensioner (catalogue page 10).

  • Tensioner AS with aluminium head for accessories mounting
  • Dry standard self-lubricating bushings with PTFE
  • The force (N) is calculated through pressure tests performend in the laboratory
  • Available with Stainless Steel springs, studs, plugs and washers

Product Configuration

Select a row to add it to your quote

Code TypeNewtonABCDE minE maxFGHILMNOPQ Weight CAD
94021008N AS1 M8 280 50 mm 23 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 52 mm 20 mm 12.5 mm 22 mm 20 mm 14 mm 40 mm M8 0.28 kg
94021010N AS1 M10 280 50 mm 23 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 52 mm 20 mm 12.5 mm 22 mm 20 mm 14 mm 40 mm M10 0.27 kg
94021012N AS1 M12 280 50 mm 23 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 52 mm 20 mm 12.5 mm 22 mm 20 mm 14 mm 40 mm M12 0.26 kg
94021016N AS1 M16 280 50 mm 23 mm 61 mm 74 mm 119 mm 143 mm 6.5 mm 10.5 mm 52 mm 20 mm 12.5 mm 22 mm 20 mm 14 mm 40 mm M16 0.25 kg
94022012N AS2 M12 460 67 mm 28 mm 73 mm 87 mm 144 mm 176 mm 7 mm 12.5 mm 67 mm 25 mm 15 mm 25.5 mm 25 mm 11 mm 50 mm M12 0.52 kg
94022016N AS2 M16 460 67 mm 28 mm 73 mm 87 mm 144 mm 176 mm 7 mm 12.5 mm 67 mm 25 mm 15 mm 25.5 mm 25 mm 11 mm 50 mm M16 0.51 kg
94023012N AS3 M12 690 80 mm 32.5 mm 88 mm 104 mm 172 mm 209 mm 8 mm 14.5 mm 80 mm 29.5 mm 17.5 mm 28.5 mm 30 mm 11 mm 60 mm M12 0.89 kg
94023014N AS3 M14 690 80 mm 32.5 mm 88 mm 104 mm 172 mm 209 mm 8 mm 14.5 mm 80 mm 29.5 mm 17.5 mm 28.5 mm 30 mm 11 mm 60 mm M14 0.88 kg
94023016N AS3 M16 690 80 mm 32.5 mm 88 mm 104 mm 172 mm 209 mm 8 mm 14.5 mm 80 mm 29.5 mm 17.5 mm 28.5 mm 30 mm 11 mm 60 mm M16 0.88 kg
94AS3M20 AS3 M20 690 80 mm 32.5 mm 88 mm 104 mm 172 mm 209 mm 8 mm 14.5 mm 80 mm 29.5 mm 17.5 mm 28.5 mm 30 mm 11 mm 60 mm M20 0.88 kg
View supplier page (CAD)
