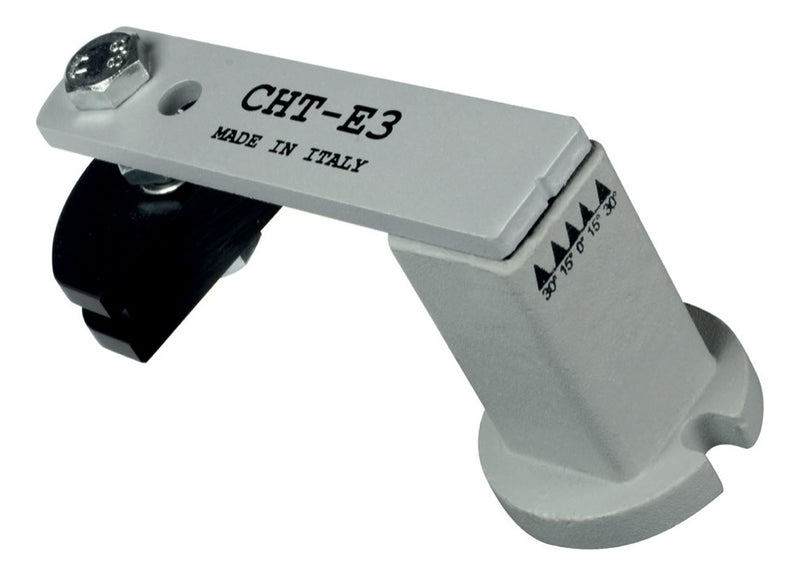

Chiaravalli CHT® Rotating Chain Tensioner CHT-EGE — product photo
Chiaravalli

CHT® Rotating Chain Tensioner CHT-EGE

Rotating Chain Tensioner CHT-EGE — Chiaravalli CHT® tensioner (catalogue page 36).

  • Tensioner E with high molecular weight (1,000,000) UHMW polyethylene chain tensioner sliding block
  • Provided with a bushing kit that allows free movement of the sliding
  • Rubber elastic elements
  • Also available with GA and GO shoes, sizes indicated on page 38
  • Supplied with assembly bolt. FRONT MOUNTED VERSION AVAILABLE UPON REQUEST

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton A2Newton A1ABCDHILM Weight
94070901 EGE 1 - 3/8 Single 3/8 x 7/32” 0-90 0-110 20 mm 20 mm — 68 +2/-0 mm 45 mm 45 mm — M8 0.3 kg
94070902 EGE 1 - 3/8 Double 3/8 x 7/32” 0-90 0-110 20 mm 20 mm — 68 +2/-0 mm 45 mm 45 mm — M8 0.3 kg
94070903 EGE 2 - 3/8 Triple 3/8 x 7/32” 0-130 0-160 — — 25 mm 68 +2/-0 mm — — 45 mm M10 0.5 kg
94071201 EGE 2 - 1/2 Single 1/2” x 5/16” 0-130 0-160 20 mm 20 mm — 68 +2/-0 mm 55 mm 55 mm — M10 0.5 kg
94071202 EGE 2 - 1/2 Double 1/2” x 5/16” 0-130 0-160 20 mm 20 mm — 68 +2/-0 mm 55 mm 55 mm — M10 0.5 kg
94071211 EGE 3 - 1/2 Single 1/2” x 5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +2/-0 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071213 EGE 3 - 1/2 Triple 1/2” x 5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +2/-0 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071212 EGE 3 - 1/2 Double 1/2” x 5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +2/-0 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071501 EGE 3 - 5/8 Single 5/8” x 3/8” 0-330 0-410 20 mm 25 mm — 88 +2/-0 mm 55 mm 70 mm — M10 0.78 kg
94071502 EGE 3 - 5/8 Double 5/8” x 3/8” 0-330 0-410 20 mm 25 mm — 88 +2/-0 mm 55 mm 70 mm — M10 0.78 kg
94071901 EGE 3 - 3/4 Single 3/4” x 7/16” 0-330 0-410 20 mm 30 mm — 88 +2/-0 mm 60 mm 70 mm — M10 0.8 kg
94071902 EGE 3 - 3/4 Double 3/4” x 7/16” 0-330 0-410 20 mm 30 mm — 88 +2/-0 mm 60 mm 70 mm — M10 0.8 kg
94071503 EGE 4 - 5/8 Triple 5/8” x 3/8” 0-800 0-1000 — — 40 mm 88 +2/-0 mm — — 100 mm M12 2.1 kg
94071911 EGE 4 - 3/4 Single 3/4” x 7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +2/-0 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071913 EGE 4 - 3/4 Triple 3/4” x 7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +2/-0 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071912 EGE 4 - 3/4 Double 3/4” x 7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +2/-0 mm 80 mm 80 mm 100 mm M12 2.1 kg
94072501 EGE 4 -1 Single 1” x 17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +2/-0 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072503 EGE 4 -1 Triple 1” x 17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +2/-0 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072502 EGE 4 -1 Double 1” x 17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +2/-0 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072513 EGE 5 -1 Triple 1” x 17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +2/-0 mm — 100 mm 120 mm M20 4.0 kg
94072512 EGE 5 -1 Double 1” x 17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +2/-0 mm — 100 mm 120 mm M20 4.0 kg
94073101 EGE 5 -1 1/4 Single 1”1/4 x 3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +2/-0 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073103 EGE 5 -1 1/4 Triple 1”1/4 x 3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +2/-0 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073102 EGE 5 -1 1/4 Double 1”1/4 x 3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +2/-0 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073801 EGE 5 -1 1/2 Single 1”1/2 x 1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 -0 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073803 EGE 5 -1 1/2 Triple 1”1/2 x 1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 -0 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073802 EGE 5 -1 1/2 Double 1”1/2 x 1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 -0 mm 100 mm 120 mm 130 mm M20 4.2 kg
