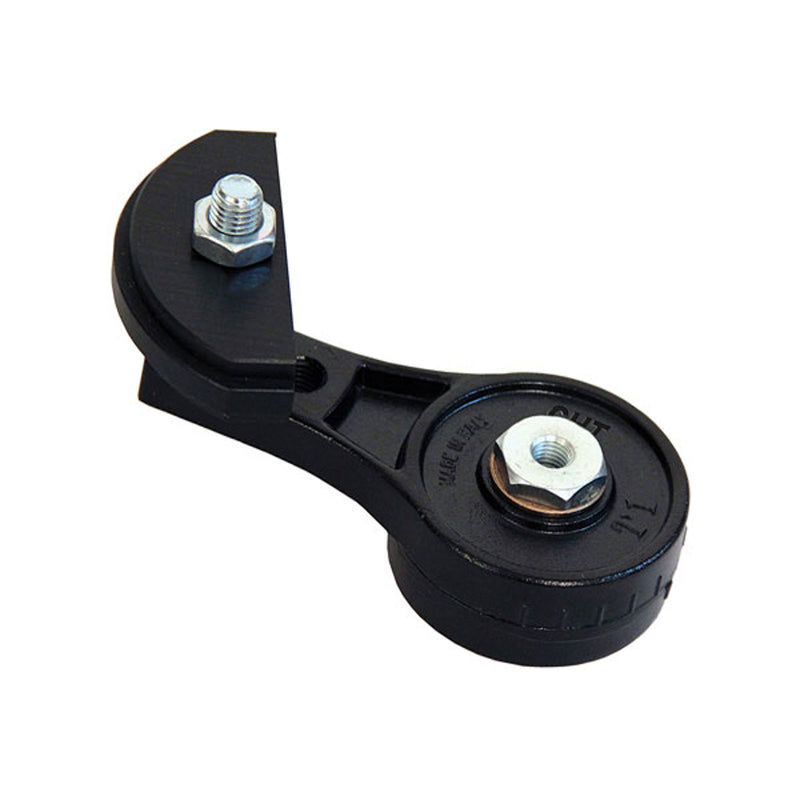

Chiaravalli CHT® Rotating Chain Tensioner CHT-TGE — product photo
Chiaravalli

CHT® Rotating Chain Tensioner CHT-TGE

Rotating Chain Tensioner CHT-TGE — Chiaravalli CHT® tensioner (catalogue page 26).

  • Rotating chain tensioner CHT- TGE
  • Tensioner AS with high molecular weight polyeth ylene UHMW sliding block (1.000.000)
  • Provided with a bushing kit that allows free movement of the slider
  • Standard sintered bronze self-lubricating bushes
  • Available version with Stainless Steel pin and springs

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton H1Newton H2ABCDEFGHIN kg. Weight CAD
94030901P TGE1-3/8 Single 3/8”x 7/32” 180 250 68 +2/-0 mm 20 mm 20 mm 25 mm 60 mm 80 mm 40-58 mm 40-58 mm 43-75 mm M12 0.47 kg
94030903P TGE1-3/8 Triple 3/8”x 7/32” 180 250 68 +2/-0 mm 20 mm 20 mm 25 mm 60 mm 80 mm 40-58 mm 40-58 mm 43-75 mm M12 0.47 kg
94030902P TGE1-3/8 Double 3/8”x 7/32” 180 250 68 +2/-0 mm 20 mm 20 mm 25 mm 60 mm 80 mm 40-58 mm 40-58 mm 43-75 mm M12 0.47 kg
94031201P TGE1-1/2 Single 1/2”x5/16” 180 250 68 +2/-0 mm 20 mm 20 mm 35 mm 60 mm 80 mm 40-58 mm 40-58 mm 48-70 mm M12 0.47 kg
94031203P TGE1-1/2 Triple 1/2”x5/16” 180 250 68 +2/-0 mm 20 mm 20 mm 35 mm 60 mm 80 mm 40-58 mm 40-58 mm 48-70 mm M12 0.47 kg
94031202P TGE1-1/2 Double 1/2”x5/16” 180 250 68 +2/-0 mm 20 mm 20 mm 35 mm 60 mm 80 mm 40-58 mm 40-58 mm 48-70 mm M12 0.47 kg
94031501P TGE1-5/8 Single 5/8”x3/8” 180 250 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 40-78 mm 43-75 mm 50-68 mm M12 0.47 kg
94031503P TGE1-5/8 Triple 5/8”x3/8” 180 250 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 40-78 mm 43-75 mm 50-68 mm M12 0.47 kg
94031502P TGE1-5/8 Double 5/8”x3/8” 180 250 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 40-78 mm 43-75 mm 50-68 mm M12 0.47 kg
94031511P TGE2-5/8 Single 5/8”x3/8” 340 440 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 46-81 mm 49-78 mm 57-90 mm M12 0.76 kg
94031513P TGE2-5/8 Triple 5/8”x3/8” 340 440 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 46-81 mm 49-78 mm 57-90 mm M12 0.76 kg
94031512P TGE2-5/8 Double 5/8”x3/8” 340 440 88 +2/-0 mm 20 mm 25 mm 40 mm 80 mm 80 mm 46-81 mm 49-78 mm 57-90 mm M12 0.76 kg
94031901P TGE2-3/4 Single 3/4”x7/16” 340 440 108 +2/-0 mm 20 mm 30 mm 49 mm 80 mm 100 mm 46-81 mm 51-76 mm 61-86 mm M12 0.76 kg
94031903P TGE2-3/4 Triple 3/4”x7/16” 340 440 108 +2/-0 mm 20 mm 30 mm 49 mm 80 mm 100 mm 46-81 mm 51-76 mm 61-86 mm M12 0.76 kg
94031902P TGE2-3/4 Double 3/4”x7/16” 340 440 108 +2/-0 mm 20 mm 30 mm 49 mm 80 mm 100 mm 46-81 mm 51-76 mm 61-86 mm M12 0.76 kg
94032501P TGE2-1 Single 1”x17mm 340 440 108 +2/-0 mm 25 mm 45 mm — 100 mm — 46-100 mm 59-88 mm — M12 0.76 kg
94032503P TGE2-1 Triple 1”x17mm 340 440 108 +2/-0 mm 25 mm 45 mm — 100 mm — 46-100 mm 59-88 mm — M12 0.76 kg
94032502P TGE2-1 Double 1”x17mm 340 440 108 +2/-0 mm 25 mm 45 mm — 100 mm — 46-100 mm 59-88 mm — M12 0.76 kg
View supplier page (CAD)
