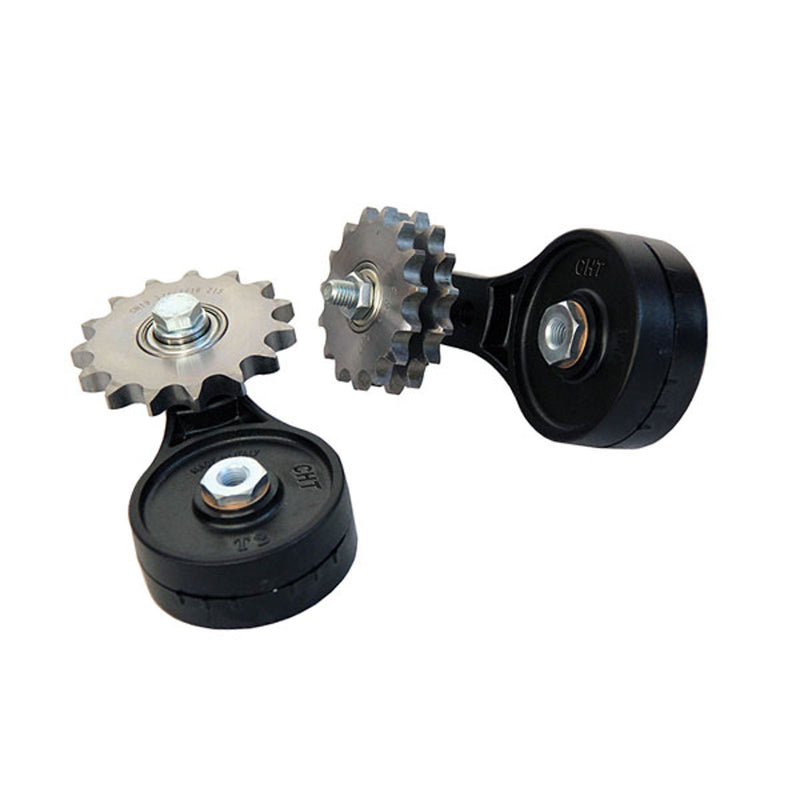

Chiaravalli CHT® Rotating Chain Tensioner CHT-TR — product photo
Chiaravalli

CHT® Rotating Chain Tensioner CHT-TR

Rotating Chain Tensioner CHT-TR — Chiaravalli CHT® tensioner (catalogue page 25).

  • T with chain tensioner sprocket R double, triple). sintered bronze self-lubricating bushing. version with Stainless Steel pin and available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton H1Newton H2Z teethILMNOP Weight CAD
94030901 TR1-3/8 Single 3/8”x 7/32” 180 250 15 60 mm 80 mm M10 40-63 mm 48-57 mm 53-72 mm 0.5 kg
94030903 TR1-3/8 Triple 3/8”x 7/32” 180 250 15 60 mm 80 mm M10 40-63 mm 48-57 mm 53-72 mm 0.5 kg
94030902 TR1-3/8 Double 3/8”x 7/32” 180 250 15 60 mm 80 mm M10 40-63 mm 48-57 mm 53-72 mm 0.5 kg
94031201 TR1 -1/2 Single 1/2”x 5/16” 180 250 15 60 mm 80 mm M12 40-63 mm 50-55 mm 57-68 mm 0.55 kg
94031203 TR1 -1/2 Triple 1/2”x 5/16” 180 250 15 60 mm 80 mm M12 40-63 mm 50-55 mm 57-68 mm 0.55 kg
94031202 TR1 -1/2 Double 1/2”x 5/16” 180 250 15 60 mm 80 mm M12 40-63 mm 50-55 mm 57-68 mm 0.55 kg
94031501 TR1-5/8 Single 5/8”x 3/8” 180 250 15 80 mm 80 mm M12 40-80 mm 54-71 mm 60-65 mm 0.7 kg
94031503 TR1-5/8 Triple 5/8”x 3/8” 180 250 15 80 mm 80 mm M12 40-80 mm 54-71 mm 60-65 mm 0.7 kg
94031502 TR1-5/8 Double 5/8”x 3/8” 180 250 15 80 mm 80 mm M12 40-80 mm 54-71 mm 60-65 mm 0.7 kg
94031511 TR2 -5/8 Single 5/8”x 3/8” 340 440 15 80 mm 80 mm M12 46-84 mm 59-82 mm 68-84 mm 0.97 kg
94031513 TR2 -5/8 Triple 5/8”x 3/8” 340 440 15 80 mm 80 mm M12 46-84 mm 59-82 mm 68-84 mm 0.97 kg
94031512 TR2 -5/8 Double 5/8”x 3/8” 340 440 15 80 mm 80 mm M12 46-84 mm 59-82 mm 68-84 mm 0.97 kg
94031901 TR2 -3/4 Single 3/4”x 7/16” 340 440 15 80 mm 100 mm M12 48-84 mm 59-82 mm 68-84 mm 1.25 kg
94031903 TR2 -3/4 Triple 3/4”x 7/16” 340 440 15 80 mm 100 mm M12 48-84 mm 59-82 mm 68-84 mm 1.25 kg
94031902 TR2 -3/4 Double 3/4”x 7/16” 340 440 15 80 mm 100 mm M12 48-84 mm 59-82 mm 68-84 mm 1.25 kg
94032501 TR2-1 Single 1”x 17mm 340 440 12 100 mm — M12 51-98 mm 65-98 mm — 1.55 kg
94032502 TR2-1 Double 1”x 17mm 340 440 12 100 mm — M12 51-98 mm 65-98 mm — 1.55 kg
View supplier page (CAD)
