Chiaravalli

CHT® Rotating Chain Tensioner CHT-TTN

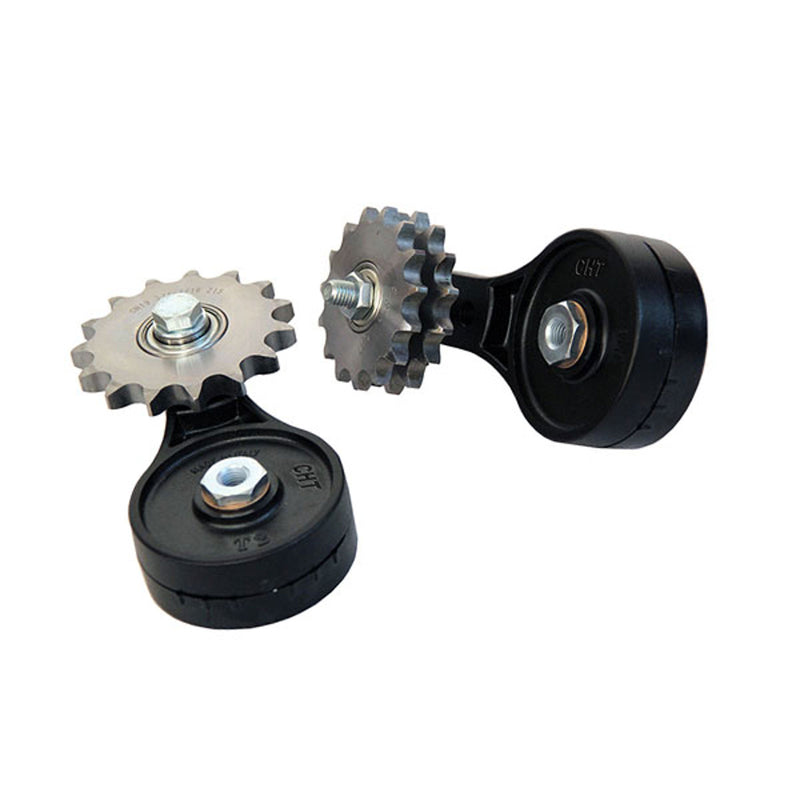

Name: Chiaravalli CHT® Rotating Chain Tensioner CHT-TTN
Brand: Chiaravalli

Rotating Chain Tensioners CHT-TTN — Chiaravalli CHT® tensioner (catalogue page 24).

Select a row to add it to your quote

Type

Code	Type	Chain pitch	Newton H1	Newton H2	Z teeth	F	G	M	Weight
`94030921`	`TTN1-3/8`	`3/8”x 7/32”`	`180`	`250`	`21`	`9.2` mm	`19.2` mm	`M12`	`0.55` kg
`94031216`	`TTN1 -1/2`	`1/2”x 5/16”`	`180`	`250`	`16`	`9.2` mm	`19.2` mm	`M12`	`0.57` kg
`94031517`	`TTN1-5/8`	`5/8”x 3/8”`	`180`	`250`	`17`	`9.2` mm	`19.2` mm	`M12`	`0.76` kg
`94031918`	`TTN2 -5/8`	`5/8”x 3/8”`	`340`	`440`	`17`	`9.2` mm	`19.2` mm	`M12`	`1.04` kg
`94031915`	`TTN2 -3/4`	`3/4”x 7/16”`	`340`	`440`	`15`	`9.2` mm	`19.2` mm	`M12`	`1.15` kg
`94032512`	`TTN2-1`	`1”x 17mm`	`340`	`440`	`12`	`8.9` mm	`19` mm	`M12`	`1.45` kg

CAD / datasheet for selected variant
