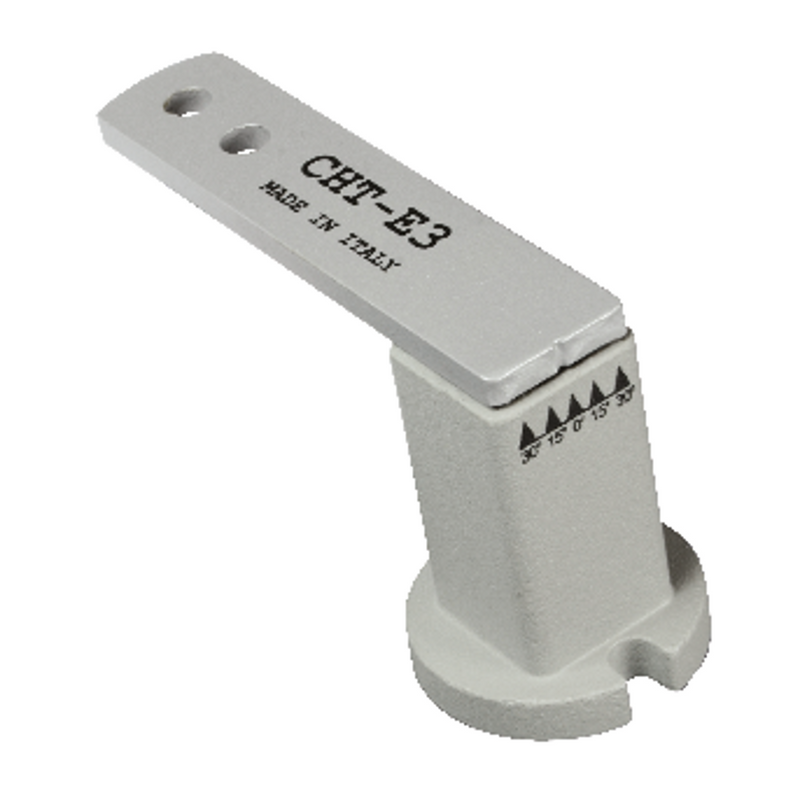

Chiaravalli CHT® Rotating Tensioner CHT-E — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-E

Rotating Tensioner CHT-E — Chiaravalli CHT® tensioner (catalogue page 30).

  • Tensioner E with two holes for accessory fastening
  • Rubber elastic elements
  • Supplied with assembly bolt
  • FRONT MOUNTED VERSION AVAILABLE UPON REQUEST

Product Configuration

Select a row to add it to your quote

Code TypeNewton A2Newton A1A1A2BCD ØEFGHILM Weight CAD
94070001 E1 0 - 90 0 - 110 60 mm 80 mm 5 mm 50 mm 35 mm 90 mm 25 mm M6 8.5 mm 7 mm 31 mm 6 mm 0.18 kg
94070002 E2 0 - 130 0 - 160 80 mm 100 mm 5 mm 63 mm 45 mm 112.5 mm 30 mm M8 10.5 mm 9 mm 41 mm 8 mm 0.35 kg
94070003 E3 0 - 330 0 - 410 80 mm 100 mm 6 mm 77 mm 59 mm 115 mm 35 mm M10 10.5 mm 9 mm 48 mm 10 mm 0.6 kg
94070004 E4 0 - 800 0 - 1000 100 mm 130 mm 8 mm 107 mm 79 mm 155 mm 50 mm M12 12.5 mm 11 mm 63 mm 15 mm 1.9 kg
94070005 E5 0 - 1500 0 - 1850 140 mm 175 mm 10 mm 139 mm 98 mm 205 mm 60 mm M16 20.5 mm 13 mm 84 mm 15 mm 3.8 kg
94070006 E6 0 - 2500 0 - 3100 180 mm 225 mm 12 mm 199 mm 118 mm 260 mm 70 mm M20 20.5 mm 13 mm 100 mm 18 mm 6.5 kg
94070007 E7 0 - 3800 0 - 4800 200 mm 250 mm 20 mm 210 mm 128 mm 290 mm 80 mm M24 20.5 mm 17 mm 107 mm 20 mm 9.0 kg
View supplier page (CAD)
