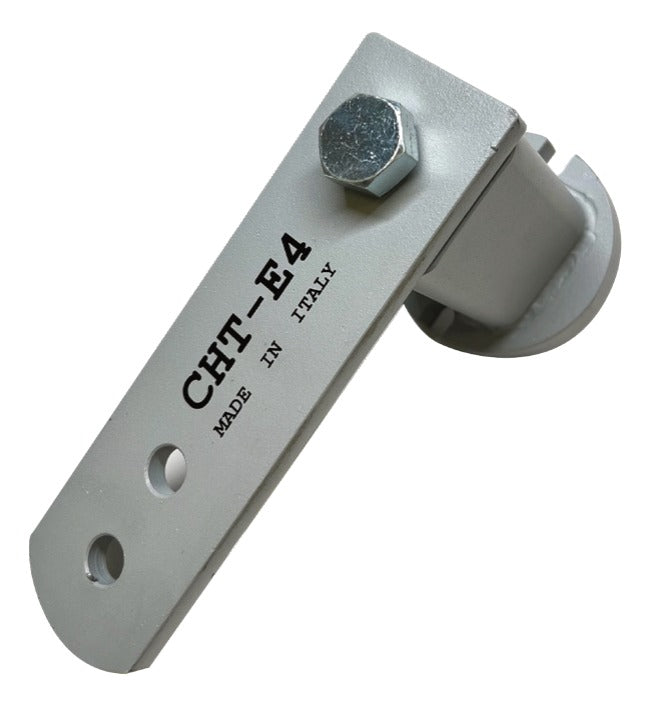

CHT® Rotating Tensioner CHT-E Front-Mounted

Rotating Tensioner CHT-E Front-Mounted — Chiaravalli CHT® tensioner (catalogue page 31).

E with tho holes for accessory fastening elastic elements. with assembly bolt. MOUNTED VERSION AVAILABLE REQUEST drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Select a row to add it to your quote

Code	Type	Newton A2	Newton A1	A1	A2	B	C	D Ø	E	F	G	H	I	L	M	Weight
`94070001MF`	`E1`	`0 - 90`	`0 - 110`	`60` mm	`80` mm	`5` mm	`50` mm	`35` mm	`90` mm	`20` mm	`M5`	`8.5` mm	`7` mm	`31` mm	`6` mm	`0.18` kg
`94070002MF`	`E2`	`0 - 130`	`0 - 160`	`80` mm	`100` mm	`5` mm	`63` mm	`45` mm	`112.5` mm	`30` mm	`M6`	`10.5` mm	`9` mm	`41` mm	`8` mm	`0.35` kg
`94070003MF`	`E3`	`0 - 330`	`0 - 410`	`80` mm	`100` mm	`6` mm	`77` mm	`59` mm	`115` mm	`35` mm	`M8`	`10.5` mm	`9` mm	`48` mm	`10` mm	`0.6` kg
`94070004MF`	`E4`	`0 - 800`	`0 - 1000`	`100` mm	`130` mm	`8` mm	`107` mm	`79` mm	`155` mm	`50` mm	`M10`	`12.5` mm	`11` mm	`63` mm	`15` mm	`1.9` kg
`94070005MF`	`E5`	`0 - 1500`	`0 - 1850`	`140` mm	`175` mm	`10` mm	`139` mm	`98` mm	`205` mm	`60` mm	`M12`	`20.5` mm	`13` mm	`84` mm	`15` mm	`3.8` kg
`94070006MF`	`E6`	`0 - 2500`	`0 - 3100`	`180` mm	`225` mm	`12` mm	`199` mm	`118` mm	`260` mm	`70` mm	`M16`	`20.5` mm	`13` mm	`100` mm	`18` mm	`6.5` kg
`94070007MF`	`E7`	`0 - 3800`	`0 - 4800`	`200` mm	`250` mm	`20` mm	`210` mm	`128` mm	`290` mm	`80` mm	`M20`	`20.5` mm	`17` mm	`117` mm	`20` mm	`9.0` kg
