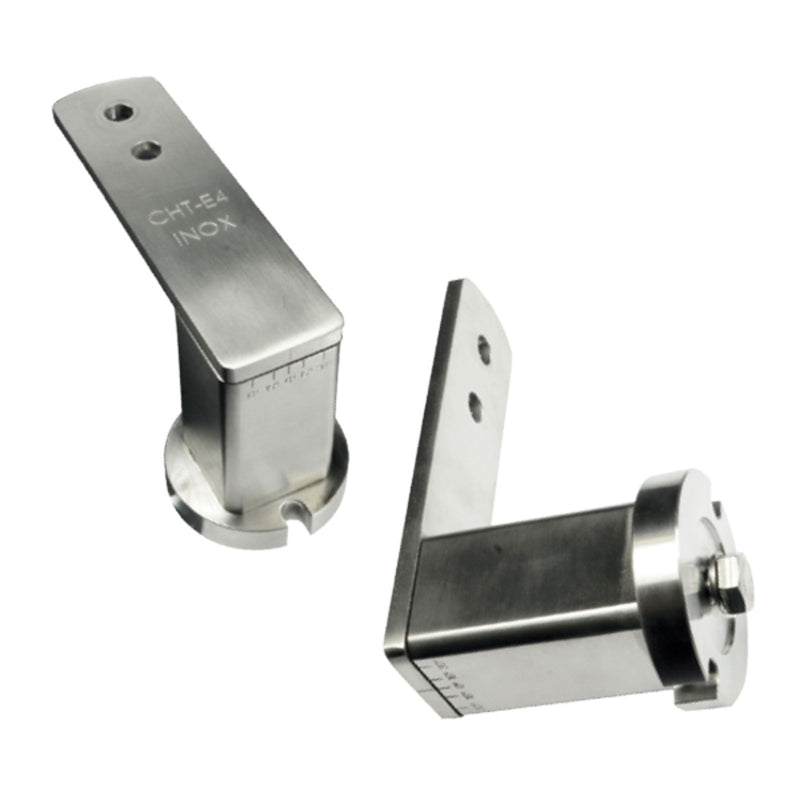

Chiaravalli CHT® Rotating Tensioner CHT-E SS — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-E SS

Rotating Tensioners CHT-E SS — Chiaravalli CHT® tensioner (catalogue page 46).

  • Tensioner E with two holes for accessory fastening in AISI 304 stainless steel
  • Rubber elastic elements
  • Supplied with AISI 304 Stainless Steel assembly bolt
  • Mirror finish. FRONT MOUNTED VERSION AVAILABLE UPON REQUEST

Product Configuration

Select a row to add it to your quote

Code TypeNewton A2Newton A1A1A2BCD ØEFGHILM Weight CAD
94070001SS E1 0 - 90 0 - 110 60 mm 80 mm 5 mm 50 mm 35 mm 90 mm 20 mm M6 8.5 mm 7 mm 31 mm 6 mm 0.18 kg
94070002SS E2 0 - 130 0 - 160 80 mm 100 mm 5 mm 63 mm 45 mm 112.5 mm 30 mm M8 10.5 mm 9 mm 41 mm 8 mm 0.35 kg
94070003SS E3 0 - 330 0 - 410 80 mm 100 mm 6 mm 77 mm 59 mm 115 mm 35 mm M10 10.5 mm 9 mm 48 mm 10 mm 0.6 kg
94070004SS E4 0 - 800 0 - 1000 100 mm 130 mm 8 mm 107 mm 79 mm 155 mm 50 mm M12 12.5 mm 11 mm 63 mm 15 mm 1.9 kg
94070005SS E5 0 - 1500 0 - 1850 140 mm 175 mm 10 mm 139 mm 98 mm 205 mm 60 mm M16 20.5 mm 13 mm 84 mm 15 mm 3.8 kg
94070006SS E6 0 - 2500 0 - 3100 180 mm 225 mm 12 mm 199 mm 118 mm 260 mm 70 mm M20 20.5 mm 13 mm 100 mm 18 mm 6.5 kg
94070007SS E7 0 - 3800 0 - 4800 200 mm 250 mm 20 mm 210 mm 128 mm 290 mm 80 mm M24 20.5 mm 17 mm 107 mm 20 mm 9.0 kg

Product Information

Material
AISI 304 stainless steel
