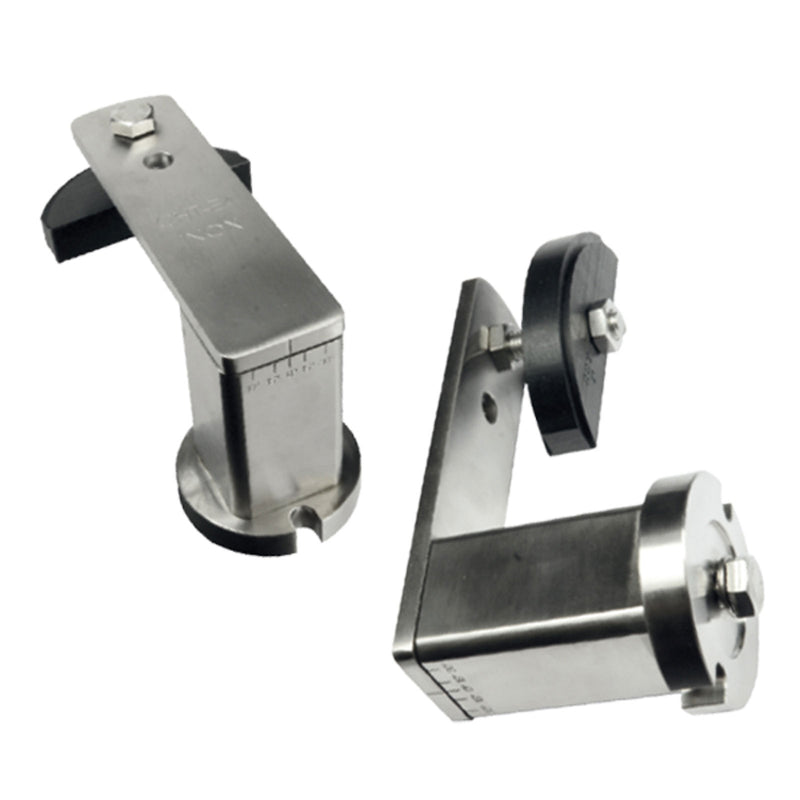

Chiaravalli CHT® Rotating Tensioner CHT-EGE SS — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-EGE SS

Rotating Tensioner CHT-EGE SS — Chiaravalli CHT® tensioner (catalogue page 52).

  • Tensioner E with high molecular weight (1,000,000) UHMW polyethylene chain tensioner sliding block
  • Provided with a bushing kit that allows free move ment of the sliding block
  • Rubber elastic elements
  • Also available with GA and GO profile, sizes indicated on page 38
  • Supplied with AISI 304 Stainless Steel assembly bolt
  • Mirror finish. FRONT MOUNTED VERSION AVAILABLE UPON REQUEST

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton A2Newton A1ABCDHILM Weight CAD
94070901SS EGE 1 - 3/8 Single 3/8x7/32” 0-90 0-110 20 mm 20 mm — 68 +0/+0,2 mm 45 mm 45 mm — M8 0.3 kg
94070902SS EGE 1 - 3/8 Double 3/8x7/32” 0-90 0-110 20 mm 20 mm — 68 +0/+0,2 mm 45 mm 45 mm — M8 0.3 kg
94070903SS EGE 2 - 3/8 Triple 3/8x7/32” 0-130 0-160 — — 25 mm 68 +0/+0,2 mm — — 45 mm M10 0.5 kg
94071201SS EGE 2 - 1/2 Single 1/2”x5/16” 0-130 0-160 20 mm 20 mm — 68 +0/+0,2 mm 55 mm 55 mm — M10 0.5 kg
94071202SS EGE 2 - 1/2 Double 1/2”x5/16” 0-130 0-160 20 mm 20 mm — 68 +0/+0,2 mm 55 mm 55 mm — M10 0.5 kg
94071211SS EGE 3 - 1/2 Single 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071213SS EGE 3 - 1/2 Triple 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071212SS EGE 3 - 1/2 Double 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071501SS EGE 3 - 5/8 Single 5/8”x3/8” 0-330 0-410 20 mm 25 mm — 88 +0/+0,2 mm 55 mm 70 mm — M10 0.78 kg
94071502SS EGE 3 - 5/8 Double 5/8”x3/8” 0-330 0-410 20 mm 25 mm — 88 +0/+0,2 mm 55 mm 70 mm — M10 0.78 kg
94071901SS EGE 3 - 3/4 Single 3/4”x7/16” 0-330 0-410 20 mm 30 mm — 88 +0/+0,2 mm 60 mm 70 mm — M10 0.8 kg
94071902SS EGE 3 - 3/4 Double 3/4”x7/16” 0-330 0-410 20 mm 30 mm — 88 +0/+0,2 mm 60 mm 70 mm — M10 0.8 kg
94071503SS EGE 4 - 5/8 Triple 5/8”x3/8” 0-800 0-1000 — — 40 mm 88 +0/+0,2 mm — — 100 mm M12 2.1 kg
94071911SS EGE 4 - 3/4 Single 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071913SS EGE 4 - 3/4 Triple 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071912SS EGE 4 - 3/4 Double 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94072501SS EGE 4 - 1 Single 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072503SS EGE 4 - 1 Triple 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072502SS EGE 4 - 1 Double 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072513SS EGE 5 - 1 Triple 1”x17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +0/+0,2 mm — 100 mm 120 mm M20 4.0 kg
94072512SS EGE 5 - 1 Double 1”x17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +0/+0,2 mm — 100 mm 120 mm M20 4.0 kg
94073101SS EGE 5 - 1 1/4 Single 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073103SS EGE 5 - 1 1/4 Triple 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073102SS EGE 5 - 1 1/4 Double 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073801SS EGE 5 - 1 1/2 Single 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073803SS EGE 5 - 1 1/2 Triple 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073802SS EGE 5 - 1 1/2 Double 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg

Product Information

Material
AISI 304 stainless steel
