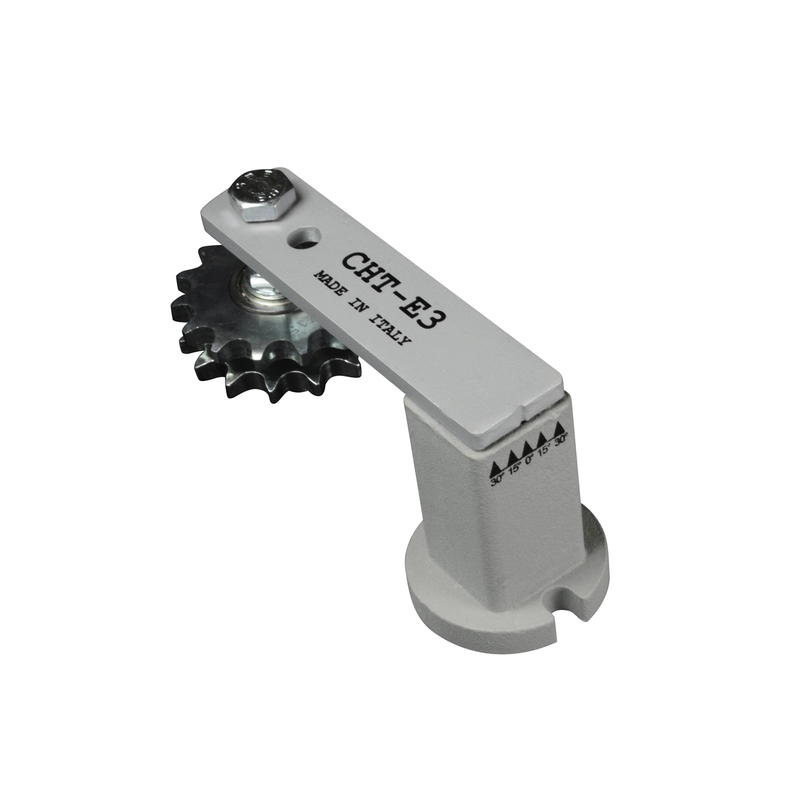

Chiaravalli CHT® Rotating Tensioner CHT-ER — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-ER

Rotating Tensioner CHT-ER — Chiaravalli CHT® tensioner (catalogue page 32).

  • Tensioner E with chain tensioner sprocket R (simple, double or triple)
  • Rubber elastic elements
  • Supplied with assembly bolt. FRONT MOUNTED VERSION AVAILABLE UPON REQUEST

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchZ teethNewton A2Newton A1HILMNOP Weight CAD
94070921 ER 2 - 3/8” Single 3/8x7/32” Z15 0-130 0-160 55 mm 55 mm — M10 22-43 mm 27-39 mm — 0.48 kg
94070922 ER 2 - 3/8” Double 3/8x7/32” Z15 0-130 0-160 55 mm 55 mm — M10 22-43 mm 27-39 mm — 0.48 kg
94070931 ER 3 - 3/8” Single 3/8x7/32” Z15 0-330 0-410 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm 0.73 kg
94070933 ER 3 - 3/8” Triple 3/8x7/32” Z15 0-330 0-410 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm 0.73 kg
94070932 ER 3 - 3/8” Double 3/8x7/32” Z15 0-330 0-410 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm 0.73 kg
94071231 ER 3 - 1/2” Single 1/2”x5/16” Z15 0-330 0-410 55 mm 60 mm — M10 23-44 mm 30-37 mm — 0.81 kg
94071232 ER 3 - 1/2” Double 1/2”x5/16” Z15 0-330 0-410 55 mm 60 mm — M10 23-44 mm 30-37 mm — 0.81 kg
94071243 ER 4 - 1/2” Triple 1/2”x5/16” — 0-800 0-1000 — — 80 mm M12 — — 41-51 mm 2.5 kg
94071541 ER 4 - 5/8” Single 5/8”x3/8” Z15 0-800 0-1000 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm 2.28 kg
94071543 ER 4 - 5/8” Triple 5/8”x3/8” Z15 0-800 0-1000 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm 2.28 kg
94071542 ER 4 - 5/8” Double 5/8”x3/8” Z15 0-800 0-1000 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm 2.28 kg
94071941 ER 4 - 3/4” Single 3/4”x7/16” Z15 0-800 0-1000 80 mm 80 mm — M12 27-65 mm 37-56 mm — 2.46 kg
94071942 ER 4 - 3/4” Double 3/4”x7/16” Z15 0-800 0-1000 80 mm 80 mm — M12 27-65 mm 37-56 mm — 2.46 kg
94071553 ER 5 - 5/8” Triple 5/8”x3/8” — 0-1500 0-1850 — — 120 mm M20 — — 56-84 mm 5.0 kg
94071951 ER 5 - 3/4” Single 3/4”x7/16” Z15 0-1500 0-1850 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm 4.61 kg
94071953 ER 5 - 3/4” Triple 3/4”x7/16” Z15 0-1500 0-1850 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm 4.61 kg
94071952 ER 5 - 3/4” Double 3/4”x7/16” Z15 0-1500 0-1850 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm 4.61 kg
94072551 ER 5 - 1” Single 1”x17 mm Z12 0-1500 0-1850 100 mm 120 mm — M20 40-80 mm 55-84 mm — 5.43 kg
94072552 ER 5 - 1” Double 1”x17 mm Z12 0-1500 0-1850 100 mm 120 mm — M20 40-80 mm 55-84 mm — 5.43 kg
94072563 ER 6 - 1” Triple 1”x17 mm — 0-2500 0-3100 — — 160 mm M20 — — 74-108 mm 9.5 kg
94073161 ER 6 - 1 1/4” Single 1”1/4x3/4” Z13 0-2500 0-3100 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm 9.28 kg
94073163 ER 6 - 1 1/4” Triple 1”1/4x3/4” Z13 0-2500 0-3100 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm 9.28 kg
94073162 ER 6 - 1 1/4” Double 1”1/4x3/4” Z13 0-2500 0-3100 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm 9.28 kg
94073861 ER 6 - 1 1/2” Single 1”1/2x1” Z11 0-2500 0-3100 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm 9.33 kg
94073863 ER 6 - 1 1/2” Triple 1”1/2x1” Z11 0-2500 0-3100 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm 9.33 kg
94073862 ER 6 - 1 1/2” Double 1”1/2x1” Z11 0-2500 0-3100 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm 9.33 kg
94072573 ER 7 - 1” Triple 1”x17 mm Z12 0-3800 0-4800 — — — — — — — 12.0 kg
94071141 ER 7 - 1 1/4” Single 1”1/4x3/4” Z13 0-3800 0-4800 — — — — — — — 12.0 kg
94071143 ER 7 - 1 1/4” Triple 1”1/4x3/4” Z13 0-3800 0-4800 — — — — — — — 12.0 kg
94071142 ER 7 - 1 1/4” Double 1”1/4x3/4” Z13 0-3800 0-4800 — — — — — — — 12.0 kg
94071121 ER 7 - 1 1/2” Single 1”1/2x1” Z11 0-3800 0-4800 — — — — — — — 12.0 kg
94071123 ER 7 - 1 1/2” Triple 1”1/2x1” Z11 0-3800 0-4800 — — — — — — — 12.0 kg
94071122 ER 7 - 1 1/2” Double 1”1/2x1” Z11 0-3800 0-4800 — — — — — — — 12.0 kg
