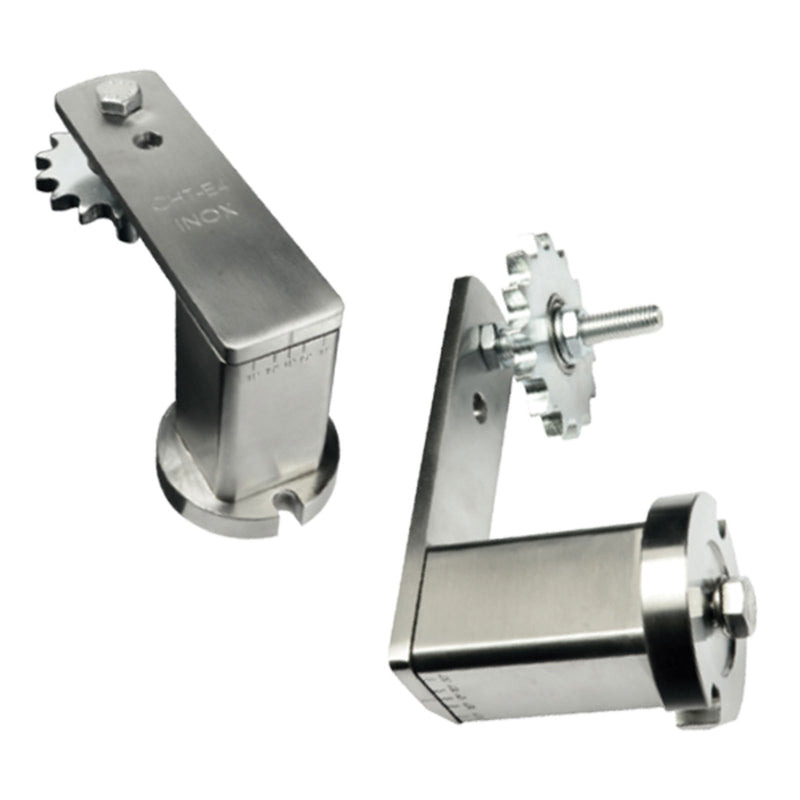

Chiaravalli CHT® Rotating Tensioner CHT-ER SS — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-ER SS

Rotating Tensioner CHT-ER SS — Chiaravalli CHT® tensioner (catalogue page 48).

  • Tensioner E with chain tensioner sprocket in AISI 304 Stainless Steel Rubber elastic elements. Supplied with AISI 304 Stainless Steel assembly bolt. Mirror finish. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton A2Newton A1Z teethHILMNOP CAD
94070921SS CHT-ER2-3/8” Single 3/8” x 7/32” 0-130 0-160 15 55 mm 55 mm — M10 22-43 mm 27-39 mm —
94070922SS CHT-ER2-3/8” Double 3/8” x 7/32” 0-130 0-160 15 55 mm 55 mm — M10 22-43 mm 27-39 mm —
94070931SS CHT-ER3-3/8” Single 3/8” x 7/32” 0-330 0-410 15 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm
94070933SS CHT-ER3-3/8” Triple 3/8” x 7/32” 0-330 0-410 15 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm
94070932SS CHT-ER3-3/8” Double 3/8” x 7/32” 0-330 0-410 15 55 mm 60 mm 70 mm M10 23-43 mm 28-39 mm 33-48 mm
94071231SS CHT-ER3-1/2” Single 1/2”x 5/16” 0-330 0-410 15 55 mm 60 mm — M10 23-44 mm 30-37 mm —
94071232SS CHT-ER3-1/2” Double 1/2”x 5/16” 0-330 0-410 15 55 mm 60 mm — M10 23-44 mm 30-37 mm —
94071243SS CHT-ER4-1/2” Triple 1/2”x 5/16” 0-800 0-1000 15 — — 80 mm M12 — — 41-51 mm
94071541SS CHT-ER4-5/8” Single 5/8” x 3/8” 0-800 0-1000 15 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm
94071543SS CHT-ER4-5/8” Triple 5/8” x 3/8” 0-800 0-1000 15 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm
94071542SS CHT-ER4-5/8” Double 5/8” x 3/8” 0-800 0-1000 15 80 mm 80 mm 80 mm M12 27-65 mm 36-57 mm 43-50 mm
94071941SS CHT-ER4- 3/4” Single 3/4” x 7/16” 0-800 0-1000 15 80 mm 80 mm — M12 27-65 mm 37-56 mm —
94071942SS CHT-ER4- 3/4” Double 3/4” x 7/16” 0-800 0-1000 15 80 mm 80 mm — M12 27-65 mm 37-56 mm —
94071553SS CHT-ER5- 5/8” Triple 5/8” x 3/8” 0-1500 0-1850 15 — — 120 mm M20 — — 56-84 mm
94071951SS CHT-ER5- 3/4” Single 3/4” x 7/16” 0-1500 0-1850 15 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm
94071953SS CHT-ER5- 3/4” Triple 3/4” x 7/16” 0-1500 0-1850 15 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm
94071952SS CHT-ER5- 3/4” Double 3/4” x 7/16” 0-1500 0-1850 15 100 mm 120 mm 120 mm M20 40-80 mm 50-90 mm 59-80 mm
94072551SS CHT-ER5- 1” Single 1” x 17mm 0-1500 0-1850 12 100 mm 120 mm — M20 40-80 mm 55-84 mm —
94072552SS CHT-ER5- 1” Double 1” x 17mm 0-1500 0-1850 12 100 mm 120 mm — M20 40-80 mm 55-84 mm —
94072563SS CHT-ER6 1” Triple 1” x 17mm 0-2500 0-3100 12 — — 160 mm M20 — — 74-108 mm
94073161SS CHT-ER6 1-1/4” Single 1”1/4 x 3/4” 0-2500 0-3100 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
94073163SS CHT-ER6 1-1/4” Triple 1”1/4 x 3/4” 0-2500 0-3100 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
94073162SS CHT-ER6 1-1/4” Double 1”1/4 x 3/4” 0-2500 0-3100 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
94073861SS CHT-ER6 1-1/2” Single 1”1/2 x 1” 0-2500 0-3100 11 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm
94073863SS CHT-ER6 1-1/2” Triple 1”1/2 x 1” 0-2500 0-3100 11 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm
94073862SS CHT-ER6 1-1/2” Double 1”1/2 x 1” 0-2500 0-3100 11 140 mm 140 mm 180 mm M20 40-120 mm 65-97 mm 90-111 mm
94071141SS CHT-ER7 1-1/4” Single 1”1/4 x 3/4” 0-3800 0-4800 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
94071143SS CHT-ER7 1-1/4” Triple 1”1/4 x 3/4” 0-3800 0-4800 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
94071142SS CHT-ER7 1-1/4” Double 1”1/4 x 3/4” 0-3800 0-4800 13 100 mm 140 mm 160 mm M20 40-80 mm 60-120 mm 78-105 mm
9407112SSS CHT-ER7 1-1/2” Single 1”1/2 x 1” 0-3800 0-4800 11 140 mm 140 mm 180 mm M20 40-120 mm 95-97 mm 90-11 mm
9407112TSS CHT-ER7 1-1/2” Triple 1”1/2 x 1” 0-3800 0-4800 11 140 mm 140 mm 180 mm M20 40-120 mm 95-97 mm 90-11 mm
9407112DSS CHT-ER7 1-1/2” Double 1”1/2 x 1” 0-3800 0-4800 11 140 mm 140 mm 180 mm M20 40-120 mm 95-97 mm 90-11 mm

Product Information

Material
AISI 304 stainless steel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
