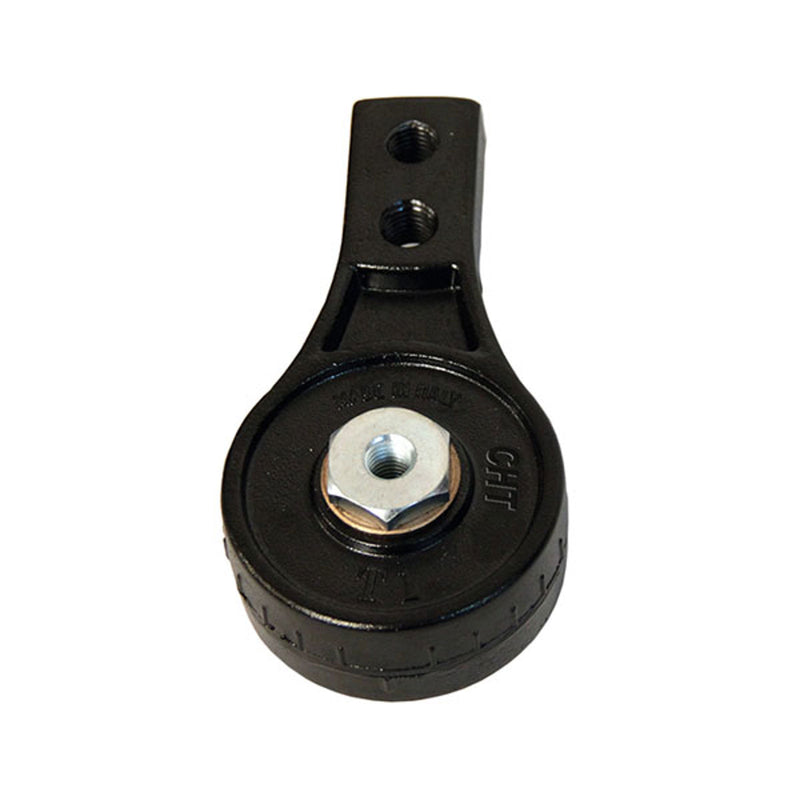

Chiaravalli CHT® Rotating Tensioner CHT-T — product photo
Chiaravalli

CHT® Rotating Tensioner CHT-T

Rotating Tensioner CHT-T — Chiaravalli CHT® tensioner (catalogue page 23).

  • T with two holes for accessory sintered bronze self-lubricating bushing. version with Stainless Steel pin and T1 drawings available on www.chiaravalli.com T2 quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeNewton H1Newton H2A1A2BCDEFGH1H2ILMN Weight CAD
94030108N T1 8.5 180 250 86 mm 22 mm 7 mm 15 mm 70 mm 135 mm 30 mm M10 8.5 8.5 6 mm 3 mm 29.5 mm 8 mm 0.36 kg
94030110N T1 10 180 250 86 mm 22 mm 7 mm 15 mm 70 mm 135 mm 30 mm M10 M10 M10 6 mm 3 mm 29.5 mm 8 mm 0.36 kg
94030111N T1 10.5 180 250 86 mm 22 mm 7 mm 15 mm 70 mm 135 mm 30 mm M10 10.5 10.5 6 mm 3 mm 29.5 mm 8 mm 0.36 kg
94030112N T1 12 180 250 86 mm 22 mm 7 mm 15 mm 70 mm 135 mm 30 mm M10 M12 M12 6 mm 3 mm 29.5 mm 8 mm 0.34 kg
94030116N T1 16 180 250 86 mm 22 mm 7 mm 15 mm 70 mm 135 mm 30 mm M10 M16 M16 6 mm 3 mm 29.5 mm 8 mm 0.3 kg
94030208N T2 8.5 340 440 100 mm 22 mm 7 mm 18 mm 90 mm 160 mm 39 mm M12 8.5 8.5 8 mm — 37.5 mm 10 mm 0.62 kg
94030211N T2 10.5 340 440 100 mm 22 mm 7 mm 18 mm 90 mm 160 mm 39 mm M12 10.5 10.5 8 mm — 37.5 mm 10 mm 0.62 kg
94030212N T2 12 340 440 100 mm 22 mm 7 mm 18 mm 90 mm 160 mm 39 mm M12 M12 M12 8 mm — 37.5 mm 10 mm 0.62 kg
94030216N T2 16 340 440 100 mm 22 mm 7 mm 18 mm 90 mm 160 mm 39 mm M12 M16 M16 8 mm — 37.5 mm 10 mm 0.6 kg
94030220N T2 20 340 440 100 mm 22 mm 7 mm 18 mm 90 mm 160 mm 39 mm M12 M20 M20 8 mm — 37.5 mm 10 mm 0.58 kg
