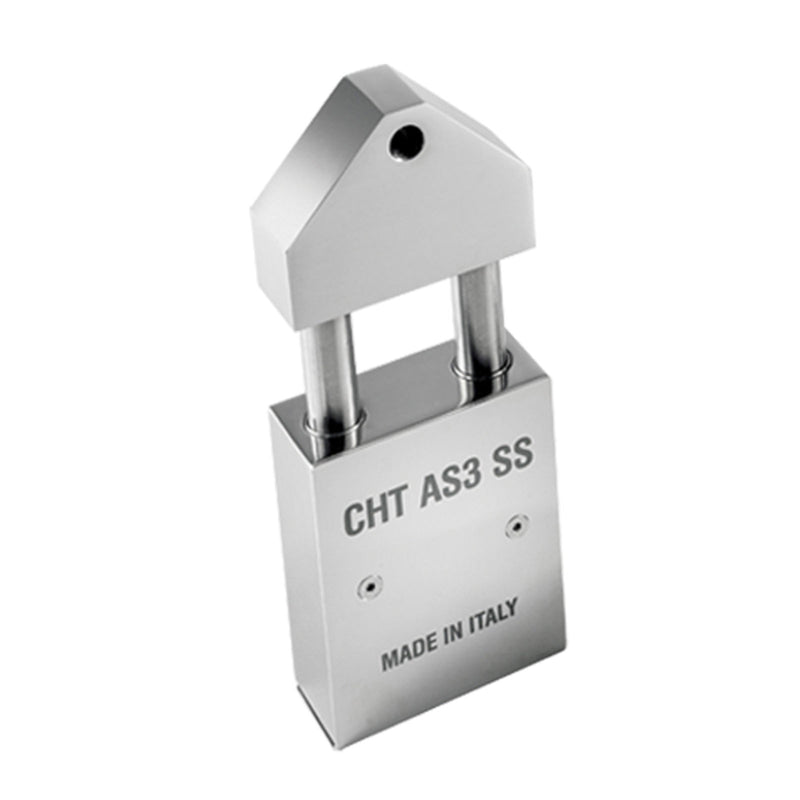

Chiaravalli CHT® Tensioner CHT-AS SS — product photo
Chiaravalli

CHT® Tensioner CHT-AS SS

Tensioner CHT-AS SS — Chiaravalli CHT® tensioner (catalogue page 57).

  • AS SS with head for accessory Stainless Steel bushings. expressed in N is obtained through “pressure” performed in the laboratory. loop cover plate. AISI 304 Stainless Steel, available in AISI 316 request. finish. available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeNewtonABC with metal sheetC without metal sheetD MAX without metal sheetD MIN with metal sheetD MAX with metal sheetEFGHILM with metal sheetM without metal sheetNOP Weight CAD
94AS18TSS AS1 M8 SS 280 50 mm 26.5 mm 76 mm 74 mm 117 mm 119 mm 148 mm 34 mm 39.75 mm 13.9 mm M8 12.2 mm 20 mm 8.5 mm 6.5 mm 50 mm M 10x45 52 mm 0.82 kg
94AS110TSS AS1 M10 SS 280 50 mm 26.5 mm 76 mm 74 mm 117 mm 119 mm 148 mm 34 mm 39.75 mm 13.9 mm M10 12.2 mm 20 mm 8.5 mm 6.5 mm 50 mm M 10x45 52 mm 0.82 kg
94AS112TSS AS1 M12 SS 280 50 mm 26.5 mm 76 mm 74 mm 117 mm 119 mm 148 mm 34 mm 39.75 mm 13.9 mm M12 12.2 mm 20 mm 8.5 mm 6.5 mm 50 mm M 10x45 52 mm 0.82 kg
94AS212TSS AS2 M12 SS 460 65 mm 31.5 mm 89 mm 87 mm 141 mm 143 mm 177 mm 45 mm 50 mm 11 mm M12 14.7 mm 25 mm 8 mm 6 mm 60.5 mm M 12x55 67 mm 1.5 kg
94AS312TSS AS3 M12 SS 690 80 mm 36.5 mm 106 mm 104 mm 173 mm 175 mm 211 mm 56 mm 60 mm 11.3 mm M12 17.5 mm 30 mm 9 mm 7 mm 73 mm M 14x60 80 mm 2.7 kg

Product Information

Material
AISI 304 stainless steel
