CHT® Tensioner CHT-E SS Front-Mounted

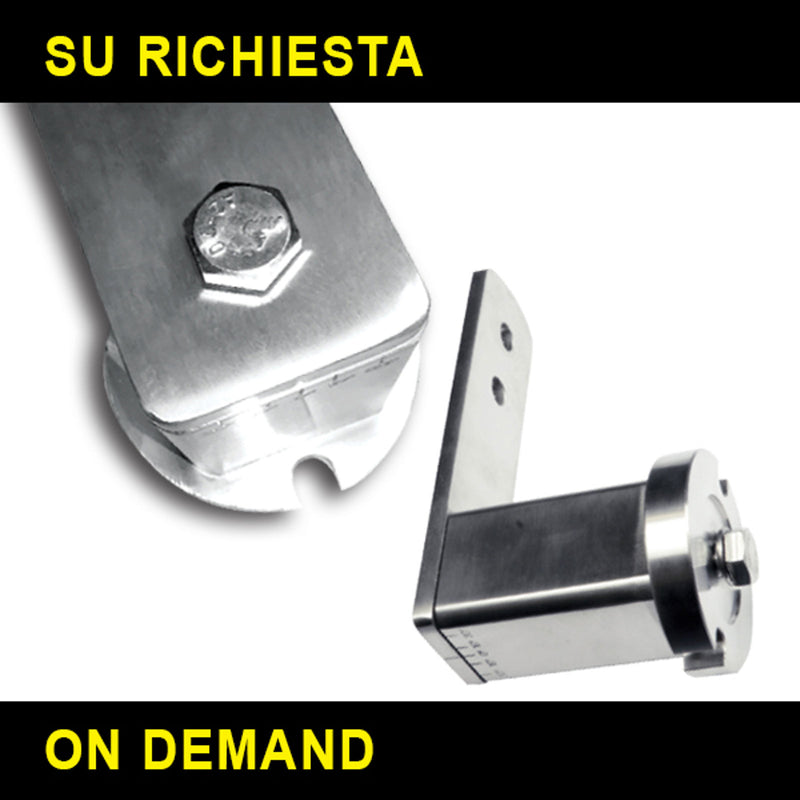

Tensioner CHT-E SS Front-Mounted — Chiaravalli CHT® tensioner (catalogue page 47).

E with two holes for accessory fastening 304 Stainless Steel elastic elements. with AISI 304 Stainless Steel assembly finish. MOUNTED VERSION AVAILABLE REQUEST available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Select a row to add it to your quote

Code	Type	Newton A2	Newton A1	A1	A2	B	C	D Ø	E	F	G	H	I	L	M	Weight
`94070001MFSS`	`E 1`	`0-090`	`0-110`	`60` mm	`80` mm	`5` mm	`50` mm	`35` mm	`90` mm	`20` mm	`M5`	`8.5` mm	`7` mm	`31` mm	`6` mm	`0.18` kg
`94070002MFSS`	`E 2`	`0-130`	`0-160`	`80` mm	`100` mm	`5` mm	`63` mm	`45` mm	`112.5` mm	`30` mm	`M6`	`10.5` mm	`9` mm	`41` mm	`8` mm	`0.35` kg
`94070003MFSS`	`E 3`	`0-330`	`0-410`	`80` mm	`100` mm	`6` mm	`77` mm	`59` mm	`115` mm	`35` mm	`M8`	`10.5` mm	`9` mm	`48` mm	`10` mm	`0.6` kg
`94070004MFSS`	`E 4`	`0-800`	`0-1000`	`100` mm	`130` mm	`8` mm	`107` mm	`79` mm	`155` mm	`50` mm	`M10`	`12.5` mm	`11` mm	`63` mm	`15` mm	`1.9` kg
`94070005MFSS`	`E 5`	`0-1500`	`0-1850`	`140` mm	`175` mm	`10` mm	`139` mm	`98` mm	`205` mm	`60` mm	`M12`	`20.5` mm	`13` mm	`84` mm	`15` mm	`3.8` kg
`94070006MFSS`	`E 6`	`0-2500`	`0-3100`	`180` mm	`225` mm	`12` mm	`199` mm	`118` mm	`260` mm	`70` mm	`M16`	`20.5` mm	`13` mm	`100` mm	`18` mm	`6.5` kg
`94070007MFSS`	`E 7`	`0-3800`	`0-4800`	`200` mm	`250` mm	`20` mm	`210` mm	`128` mm	`290` mm	`80` mm	`M20`	`20.5` mm	`17` mm	`107` mm	`20` mm	`9.0` kg
