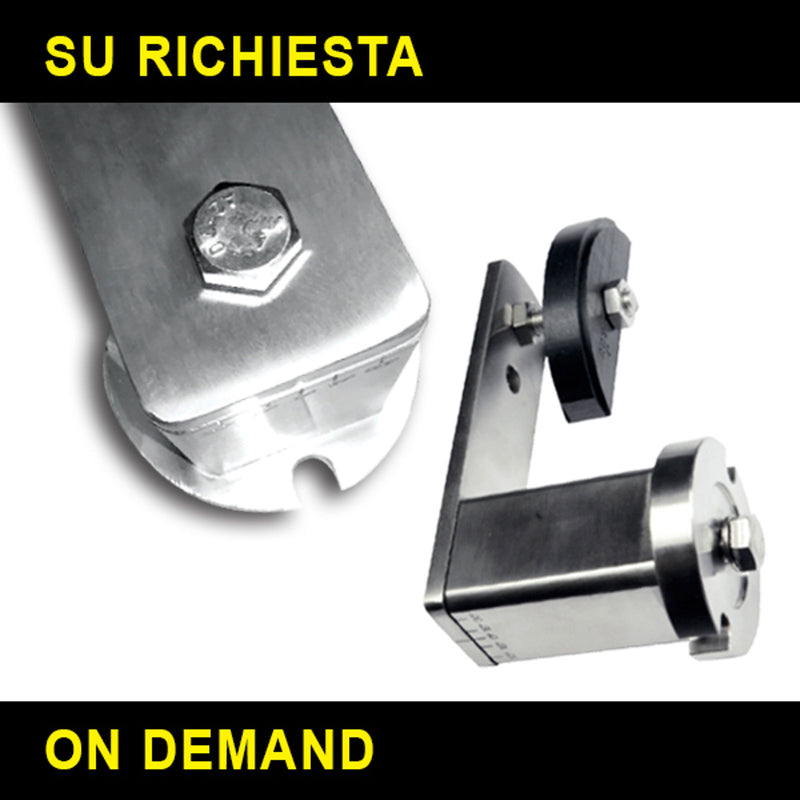

Chiaravalli CHT® Tensioner CHT-EGE SS Front-Mounted — product photo
Chiaravalli

CHT® Tensioner CHT-EGE SS Front-Mounted

Tensioner CHT-EGE SS Front-Mounted — Chiaravalli CHT® tensioner (catalogue page 53).

  • E with high molecular weight (1,000,000) polyethylene chain tensioner sliding block. with a bushing kit that allows free move the sliding block. elastic elements. available with GA and GO profile, sizes on page 38. with AISI 304 Stainless Steel assembly finish. MOUNTED VERSION AVAILABLE REQUEST available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchNewton A2Newton A1ABCDHILM Weight CAD
94070901MFSS EGE 1 - 3/8 Single 3/8x7/32” 0-90 0-110 20 mm 20 mm — 68 +0/+0,2 mm 45 mm 45 mm — M8 0.3 kg
94070902MFSS EGE 1 - 3/8 Double 3/8x7/32” 0-90 0-110 20 mm 20 mm — 68 +0/+0,2 mm 45 mm 45 mm — M8 0.3 kg
94070903MFSS EGE 2 - 3/8 Triple 3/8x7/32” 0-130 0-160 — — 25 mm 68 +0/+0,2 mm — — 45 mm M10 0.5 kg
94071201MFSS EGE 2 - 1/2 Single 1/2”x5/16” 0-130 0-160 20 mm 20 mm — 68 +0/+0,2 mm 55 mm 55 mm — M10 0.5 kg
94071202MFSS EGE 2 - 1/2 Double 1/2”x5/16” 0-130 0-160 20 mm 20 mm — 68 +0/+0,2 mm 55 mm 55 mm — M10 0.5 kg
94071211MFSS EGE 3 - 1/2 Single 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071213MFSS EGE 3 - 1/2 Triple 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071212MFSS EGE 3 - 1/2 Double 1/2”x5/16” 0-330 0-410 20 mm 20 mm 35 mm 68 +0/+0,2 mm 55 mm 60 mm 70 mm M10 0.75 kg
94071501MFSS EGE 3 - 5/8 Single 5/8”x3/8” 0-330 0-410 20 mm 25 mm — 88 +0/+0,2 mm 55 mm 70 mm — M10 0.78 kg
94071502MFSS EGE 3 - 5/8 Double 5/8”x3/8” 0-330 0-410 20 mm 25 mm — 88 +0/+0,2 mm 55 mm 70 mm — M10 0.78 kg
94071901MFSS EGE 3 - 3/4 Single 3/4”x7/16” 0-330 0-410 20 mm 30 mm — 88 +0/+0,2 mm 60 mm 70 mm — M10 0.8 kg
94071902MFSS EGE 3 - 3/4 Double 3/4”x7/16” 0-330 0-410 20 mm 30 mm — 88 +0/+0,2 mm 60 mm 70 mm — M10 0.8 kg
94071503MFSS EGE 4 - 5/8 Triple 5/8”x3/8” 0-800 0-1000 — — 40 mm 88 +0/+0,2 mm — — 100 mm M12 2.1 kg
94071911MFSS EGE 4 - 3/4 Single 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071913MFSS EGE 4 - 3/4 Triple 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94071912MFSS EGE 4 - 3/4 Double 3/4”x7/16” 0-800 0-1000 20 mm 30 mm 49 mm 88 +0/+0,2 mm 80 mm 80 mm 100 mm M12 2.1 kg
94072501MFSS EGE 4 - 1 Single 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072503MFSS EGE 4 - 1 Triple 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072502MFSS EGE 4 - 1 Double 1”x17 mm 0-800 0-1000 20 mm 45 mm 78 mm 108 +0/+0,2 mm 80 mm 90 mm 100 mm M12 2.2 kg
94072513MFSS EGE 5 - 1 Triple 1”x17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +0/+0,2 mm — 100 mm 120 mm M20 4.0 kg
94072512MFSS EGE 5 - 1 Double 1”x17 mm 0-1500 0-1850 — 45 mm 78 mm 108 +0/+0,2 mm — 100 mm 120 mm M20 4.0 kg
94073101MFSS EGE 5 - 1 1/4 Single 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073103MFSS EGE 5 - 1 1/4 Triple 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073102MFSS EGE 5 - 1 1/4 Double 1”1/4x3/4” 0-1500 0-1850 20 mm 54 mm 90 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073801MFSS EGE 5 - 1 1/2 Single 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073803MFSS EGE 5 - 1 1/2 Triple 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg
94073802MFSS EGE 5 - 1 1/2 Double 1”1/2x1” 0-1500 0-1850 20 mm 71 mm 119 mm 108 +0/+0,2 mm 100 mm 120 mm 130 mm M20 4.2 kg

Product Information

Material
AISI 304 stainless steel
