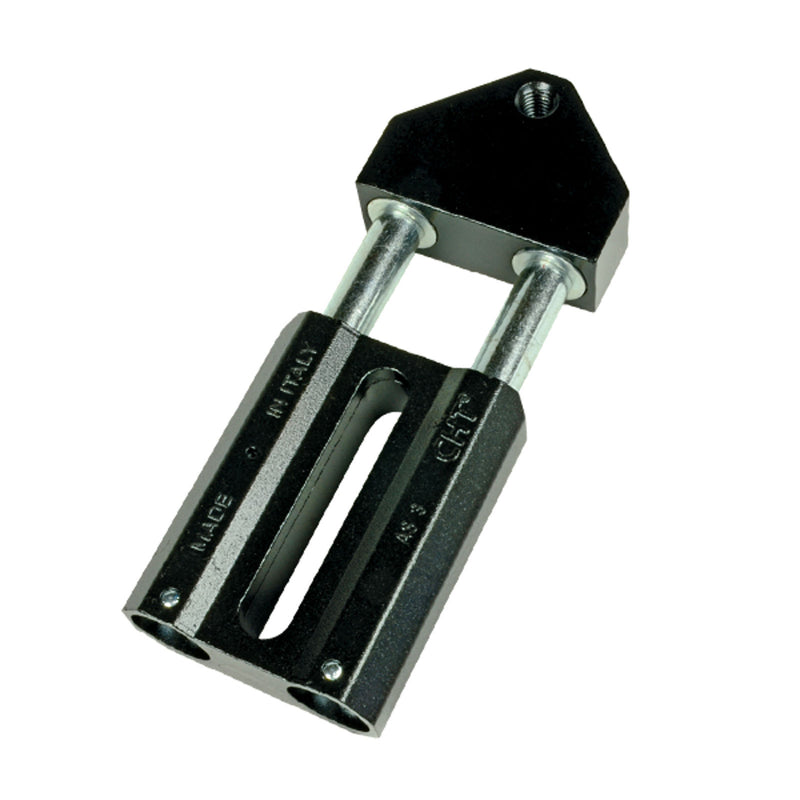

CHT® Tensioner CHT-L

Tensioner CHT-L — Chiaravalli CHT® tensioner (catalogue page 9).

Type L: the compact version allows for choice of tension force while keeping small footprint. By changing the springs and head on the same frame, it is possible chain tensioner sprockets R or TN or RU. The base structure is made of high die-cast aluminium. self-lubricating bushings with PTFE with Stainless Steel springs, studs, plugs bottom closure caps for the tensioner. available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Select a row to add it to your quote

Code	Type	Newton	A	B	C	D	E min	E max	F	G	H	I	J	L	M	Weight
`94020001`	`L 1`	`240`	`50` mm	`23` mm	`61` mm	`74` mm	`119` mm	`143` mm	`14` mm	`10.5` mm	`M 12`	`20` mm	`20` mm	`12.5` mm	`22` mm	`0.26` kg
`94020002`	`L 2`	`350`	`50` mm	`23` mm	`61` mm	`74` mm	`129` mm	`153` mm	`14` mm	`12` mm	`M 12`	`20` mm	`20` mm	`12.5` mm	`22` mm	`0.28` kg
`94020003`	`L 3`	`450`	`50` mm	`23` mm	`61` mm	`74` mm	`139` mm	`163` mm	`14` mm	`12` mm	`M 12`	`20` mm	`20` mm	`12.5` mm	`22` mm	`0.32` kg

CAD / datasheet for selected variant
