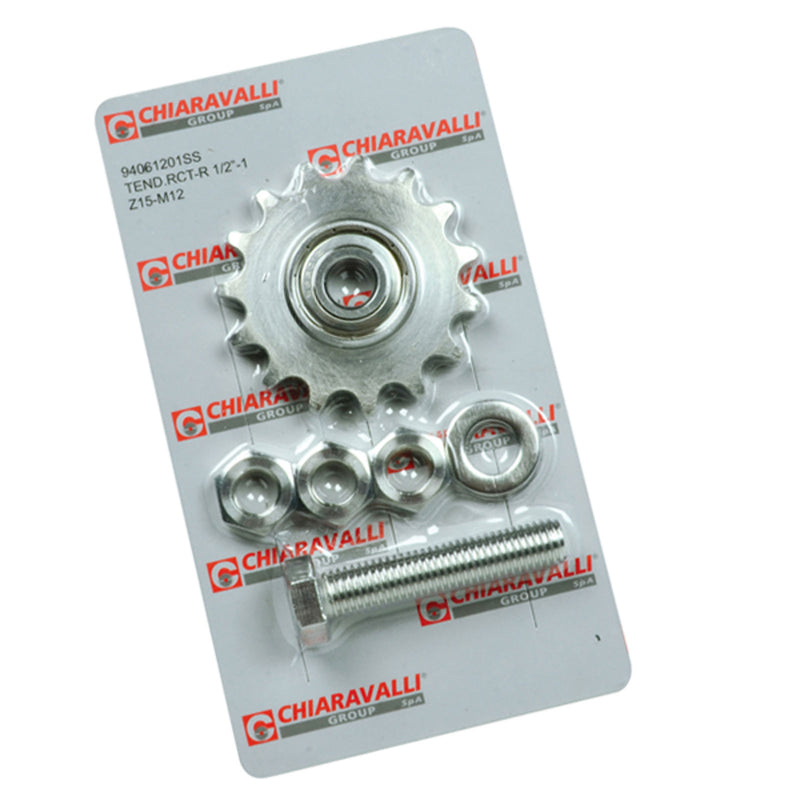

Chiaravalli CHT® Tensioner Sprocket CHT-R SS — product photo
Chiaravalli

CHT® Tensioner Sprocket CHT-R SS

Tensioner Sprocket CHT-R SS — Chiaravalli CHT® tensioner (catalogue page 60).

  • chain tensioner sprockets SS complete self-lubricating 2Z ball bearings and for mounting on CHT-L, CHT-T, CHT- CHT-E tensioners. available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainChain pitchZ teethABCD h14MGEF Weight CAD
94060911SS R 3/8” M10 Single 3/8” 15 10 mm 8 mm 26 mm 5.3 mm M10 55 mm 55 mm — 0.15 kg
94060912SS R 3/8” M10 Double 3/8” 15 10 mm 8 mm 26 mm 5.3 mm M10 55 mm 55 mm — 0.23 kg
94060901SS R 3/8” M12 Single 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.13 kg
94060903SS R 3/8” M12 Triple 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.26 kg
94060902SS R 3/8” M12 Double 3/8” 15 12 mm 8 mm 28 mm 5.3 mm M12 60 mm 60 mm 80 mm 0.21 kg
94061201SS R 1/2” M12 Single 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.18 kg
94061203SS R 1/2” M12 Triple 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.5 kg
94061202SS R 1/2” M12 Double 1/2” 15 12 mm 10 mm 32 mm 7.2 mm M12 60 mm 60 mm 80 mm 0.35 kg
94061211SS R 1/2” M10 Single 1/2” 15 10 mm 9 mm 30 mm 7.2 mm M10 55 mm 60 mm — 0.2 kg
94061212SS R 1/2” M10 Double 1/2” 15 10 mm 9 mm 30 mm 7.2 mm M10 55 mm 60 mm — 0.37 kg
94061501SS R 5/8” M12 Single 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.35 kg
94061503SS R 5/8” M12 Triple 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.95 kg
94061502SS R 5/8” M12 Double 5/8” 15 12 mm 10 mm 32 mm 9.1 mm M12 80 mm 80 mm 80 mm 0.6 kg
94061523SS R 5/8” M20 Triple 5/8” 15 20 mm 12 mm 42 mm 9.1 mm M20 — — 120 mm 1.3 kg
94061901SS R 3/4” M12 Single 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 0.55 kg
94061903SS R 3/4” M12 Triple 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 1.4 kg
94061902SS R 3/4” M12 Double 3/4” 15 12 mm 12 mm 37 mm 11.1 mm M12 80 mm 80 mm 100 mm 1.0 kg
94061921SS R 3/4” M20 Single 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 0.85 kg
94061923SS R 3/4” M20 Triple 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 1.6 kg
94061922SS R 3/4” M20 Double 3/4” 15 20 mm 14 mm 47 mm 11.1 mm M20 100 mm 120 mm 120 mm 1.35 kg
94062501SS R 1” M12 Single 1” 12 12 mm 12 mm 37 mm 16.2 mm M12 100 mm 100 mm — 0.9 kg
94062502SS R 1” M12 Double 1” 12 12 mm 12 mm 37 mm 16.2 mm M12 100 mm 100 mm — 1.7 kg
94062521SS R 1” M20 Single 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 1.0 kg
94062523SS R 1” M20 Triple 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 2.7 kg
94062522SS R 1” M20 Double 1” 12 20 mm 15 mm 47 mm 16.2 mm M20 100 mm 120 mm 160 mm 1.9 kg
94063121SS R 1” 1/4 Single 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 2.0 kg
94063123SS R 1” 1/4 Triple 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 5.2 kg
94063122SS R 1” 1/4 Double 1” 1/4 13 20 mm 15 mm 52 mm 18.5 mm M20 100 mm 140 mm 160 mm 3.6 kg
94063821SS R 1” 1/2 Single 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 2.35 kg
94063823SS R 1” 1/2 Triple 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 5.8 kg
94063822SS R 1” 1/2 Double 1” 1/2 11 20 mm 15 mm 52 mm 24.1 mm M20 140 mm 140 mm 180 mm 4.0 kg

Product Information

Material
AISI 304 stainless steel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
