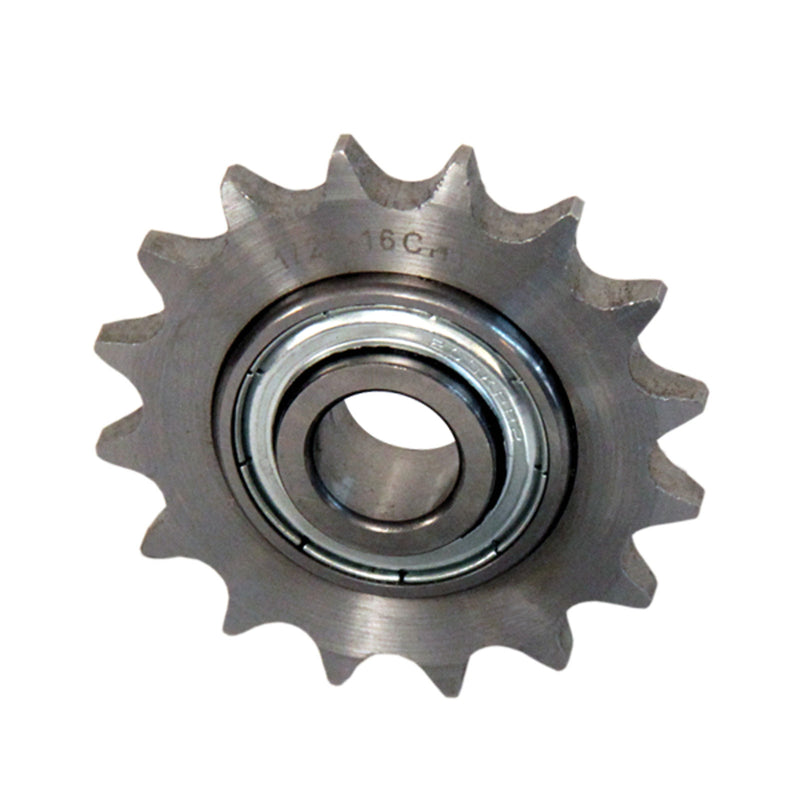

Chiaravalli CHT® Tensioner Sprocket CHT-TN — product photo
Chiaravalli

CHT® Tensioner Sprocket CHT-TN

Tensioner Sprocket CHT-TN — Chiaravalli CHT® tensioner (catalogue page 43).

  • with national bearing. chain tensioners come complete with a ready for installation at specific tension or points. precise manufacturing and stable assembly on ball bearing allow for increased to loads and wear. “extended” central ring of the bearing allows installation on various types of special available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeZ teethChain pitchdedpAD1FBH Weight CAD
30008023 TN Z23 8 x 3 23 8 x 3 62.15 mm 58.75 mm 2.8 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.13 kg
30009021 TN Z21 3/8” x 7/32” 21 3/8” x 7/32” 68 mm 63.9 mm 5.3 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.15 kg
30009022 TN Z22 3/8” x 7/32” 22 3/8” x 7/32” 71 mm 66.93 mm 5.3 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.16 kg
30010018 TN Z18 1/2” x 1/8” 18 1/2” x 1/8” 78.9 mm 73.14 mm 3 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.18 kg
30011015 TN Z15 1/2” x 3/16” 15 1/2” x 3/16” 66.8 mm 61.09 mm 4.5 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.16 kg
30011016 TN Z16 1/2” x 3/16” 16 1/2” x 3/16” 70.9 mm 65.1 mm 4.5 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.17 kg
30011018 TN Z18 1/2” x 3/16” 18 1/2” x 3/16” 78.9 mm 73.13 mm 4.5 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.2 kg
30012014 TN Z14 1/2” x 5/16” 14 1/2” x 5/16” 61.8 mm 57.07 mm 7.2 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.13 kg
30012016 TN Z16 1/2” x 5/16” 16 1/2” x 5/16” 69.5 mm 65.1 mm 7.2 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.17 kg
30012018 TN Z18 1/2” x 5/16” 18 1/2” x 5/16” 77.8 mm 73.14 mm 7.2 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.22 kg
30015014 TN Z14 5/8” x 3/8” 14 5/8” x 3/8” 78 mm 71.34 mm 9.1 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.23 kg
30015015 TN Z15 5/8” x 3/8” 15 5/8” x 3/8” 83 mm 76.36 mm 9.1 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.27 kg
30015017 TN Z17 5/8” x 3/8” 17 5/8” x 3/8” 93 mm 86.39 mm 9.1 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.36 kg
30019013 TN Z13 3/4” x 7/16” 13 3/4” x 7/16” 87.5 mm 79.59 mm 11.1 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.34 kg
30019015 TN Z15 3/4” x 7/16” 15 3/4” x 7/16” 99.8 mm 91.63 mm 11.1 mm 16 +0,26/+0,13 mm 40 mm 12 mm 18.3 mm 0.47 kg
30025012 TN Z12 1” x 17.02 12 1” x 17.02 109 mm 98.14 mm 16.2 mm 20 +0/+0,1 mm 47 mm 14 mm 17.7 mm 0.72 kg
30031013 TN Z13 1”1/4 x 3/4” 13 1”1/4 x 3/4” 147.8 mm 132.65 mm 18.5 mm 25 +0/+0,1 mm 52 mm 15 mm 21 mm 1.64 kg
View supplier page (CAD)
