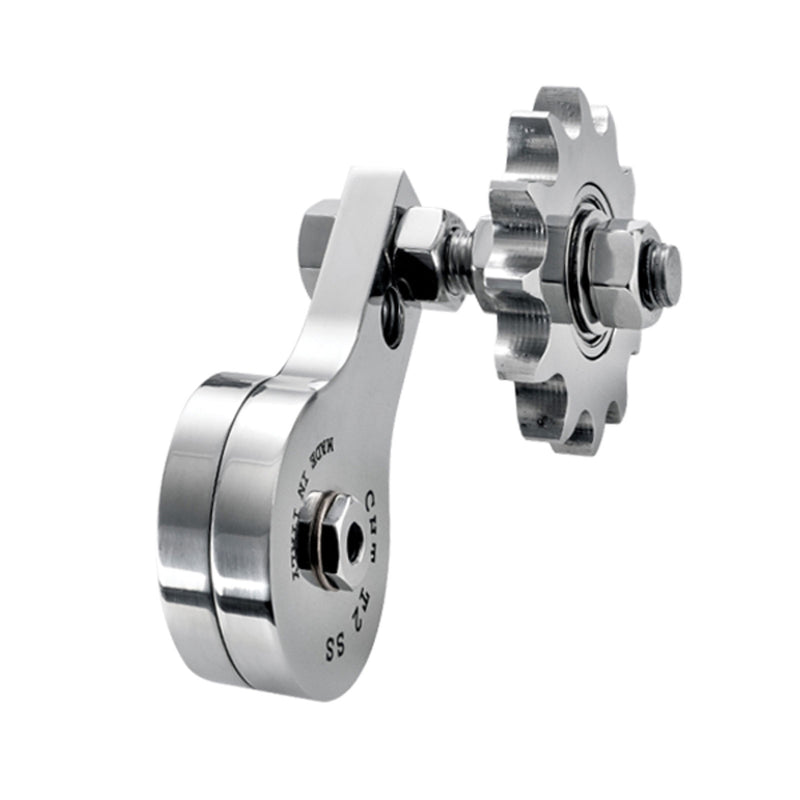

Chiaravalli CHT® Tensioner CHT-TR SS — product photo
Chiaravalli

CHT® Tensioner CHT-TR SS

Tensioner CHT-TR SS — Chiaravalli CHT® tensioner (catalogue page 55).

  • T with two holes for accessory fastening Stainless Steel bushing. with Stainless Steel pin, springs, and fitting. AISI 304 Stainless Steel, available in 316 upon request. finish. drawings available on www.chiaravalli.com quantity and prices on B2B Chiaravalli

Product Configuration

Select a row to add it to your quote

Code TypeChainZ teethNewton H1Newton H2ILMNOP Weight CAD
94TR138STSS CHT-TR1 3/8” SS Single Z15 180 250 60 mm 80 mm 10 mm 40-63 mm 48-57 mm 53-72 mm 1.05 kg
94TR138DTSS CHT-TR1 3/8” SS Double Z15 180 250 60 mm 80 mm 10 mm 40-63 mm 48-57 mm 53-72 mm 1.19 kg
94TR138TTSS CHT-TR1 3/8” SS Triple Z15 180 250 60 mm 80 mm 10 mm 40-63 mm 48-57 mm 53-72 mm 1.33 kg
94TR112STSS CHT-TR1 1/2” SS Single Z15 180 250 60 mm 80 mm 12 mm 40-63 mm 50-55 mm 57-68 mm 1.161 kg
94TR112DTSS CHT-TR1 1/2” SS Double Z15 180 250 60 mm 80 mm 12 mm 40-63 mm 50-55 mm 57-68 mm 1.41 kg
94TR112TTSS CHT-TR1 1/2” SS Triple Z15 180 250 60 mm 80 mm 12 mm 40-63 mm 50-55 mm 57-68 mm 1.66 kg
94TR158STSS CHT-TR1 5/8” SS Single Z15 180 250 80 mm 80 mm 12 mm 40-80 mm 54-71 mm 60-65 mm 1.31 kg
94TR158DTSS CHT-TR1 5/8” SS Double Z15 180 250 80 mm 80 mm 12 mm 40-80 mm 54-71 mm 60-65 mm 1.71 kg
94TR158TTSS CHT-TR1 5/8” SS Triple Z15 180 250 80 mm 80 mm 12 mm 40-80 mm 54-71 mm 60-65 mm 2.122 kg
94TR234STSS CHT-TR2 3/4” SS Single Z15 340 440 80 mm 100 mm 12 mm 46-84 mm 59-82 mm 68-84 mm 2.31 kg
94TR234DTSS CHT-TR2 3/4” SS Double Z15 340 440 80 mm 100 mm 12 mm 46-84 mm 59-82 mm 68-84 mm 2.92 kg
94TR234TTSS CHT-TR2 3/4” SS Triple Z15 340 440 80 mm 100 mm 12 mm 46-84 mm 59-82 mm 68-84 mm 3.53 kg
94TR21STSS CHT-TR2 1” SS Single Z15 340 440 100 mm — 12 mm 51-98 mm 65-98 mm — 2.62 kg
94TR21DTSS CHT-TR2 1” SS Double Z15 340 440 100 mm — 12 mm 51-98 mm 65-98 mm — 3.55 kg
94TR21TTSS CHT-TR2 1” SS Triple Z15 340 440 100 mm — 12 mm 51-98 mm 65-98 mm — 4.48 kg

Product Information

Material
AISI 304 stainless steel
