Sprocket for Conveyor Chains P100 Roller 31 (welded hub)

Name: Chiaravalli Sprocket for Conveyor Chains P100 Roller 31 (welded hub)
Brand: Chiaravalli

Chain Sprockets

Chain sprocket for P100 conveyor/elevator chain, roller Ø 31 mm — realized with welded hub.

Select a row to add it to your quote

Teeth

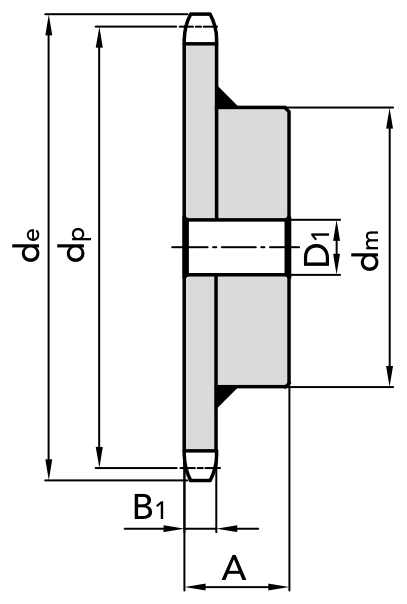

Code	Z	de	dp	D1	dm	A	Weight	CAD
`14993108`	`8`	`282.9` mm	`261.31` mm	`30` mm	`110` mm	`58.7` mm	`9.67` kg
`14993109`	`9`	`314.1` mm	`292.4` mm	`30` mm	`110` mm	`58.7` mm	`10.95` kg
`14993110`	`10`	`345.4` mm	`323.61` mm	`30` mm	`110` mm	`58.7` mm	`12.63` kg
`14993111`	`11`	`376.7` mm	`354.95` mm	`30` mm	`110` mm	`58.7` mm	`12.14` kg	—
`14993112`	`12`	`408.1` mm	`386.4` mm	`30` mm	`110` mm	`58.7` mm	`16.51` kg
`14993113`	`13`	`139.6` mm	`417.9` mm	`30` mm	`110` mm	`58.7` mm	`18.51` kg
`14993116`	`16`	`534.3` mm	`512.6` mm	`30` mm	`133` mm	`64.4` mm	`27.16` kg
`14993117`	`17`	`565.8` mm	`544.1` mm	`30` mm	`133` mm	`64.4` mm	`30.01` kg
`14993118`	`18`	`597.6` mm	`575.9` mm	`30` mm	`133` mm	`64.4` mm	`51.2` kg
