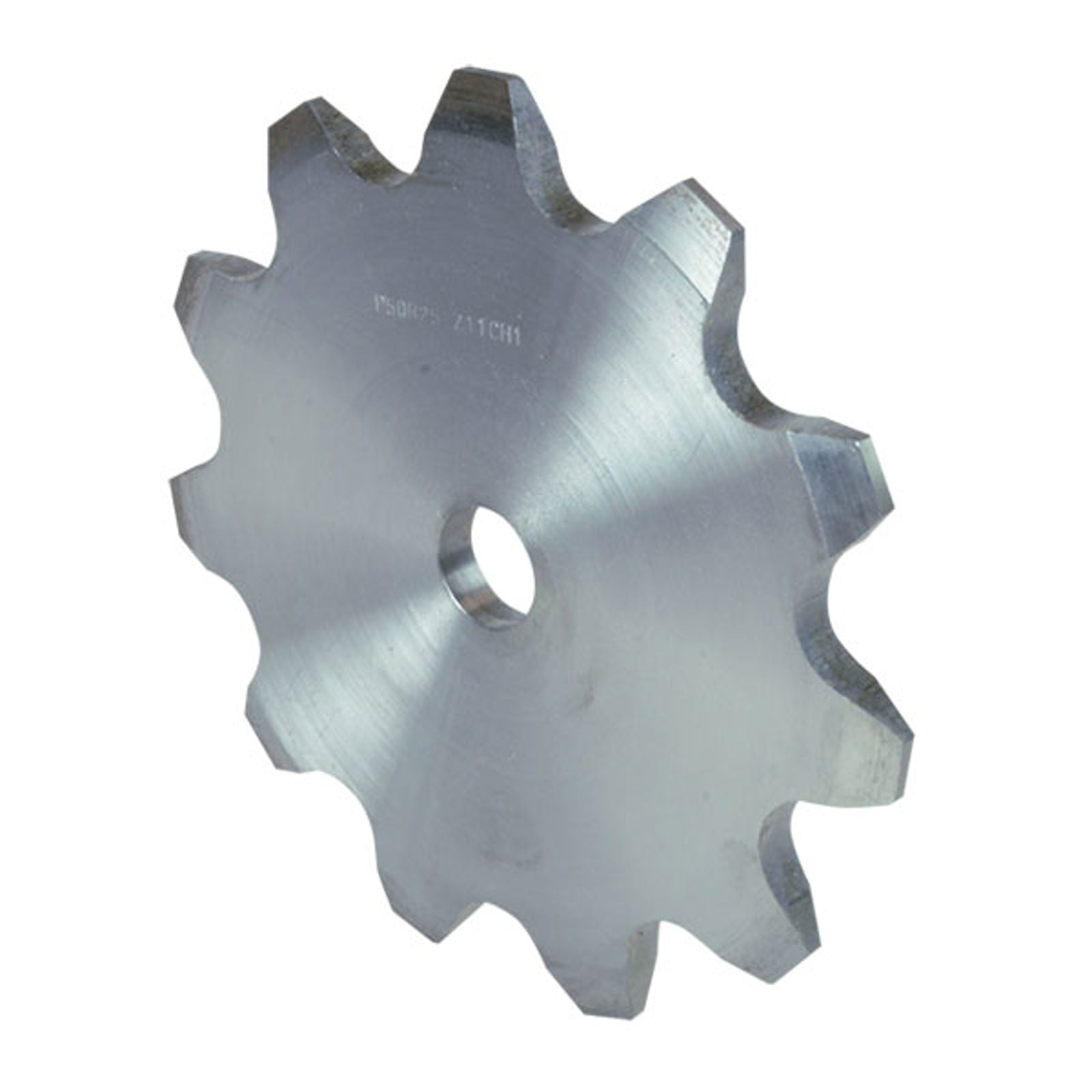

Sprocket for Conveyor Chains P100 Roller 40 (welded hub)

Name: Chiaravalli Sprocket for Conveyor Chains P100 Roller 40 (welded hub)
Brand: Chiaravalli

Chain Sprockets

Chain sprocket for P100 conveyor/elevator chain, roller Ø 40 mm — realized with welded hub.

Select a row to add it to your quote

Teeth

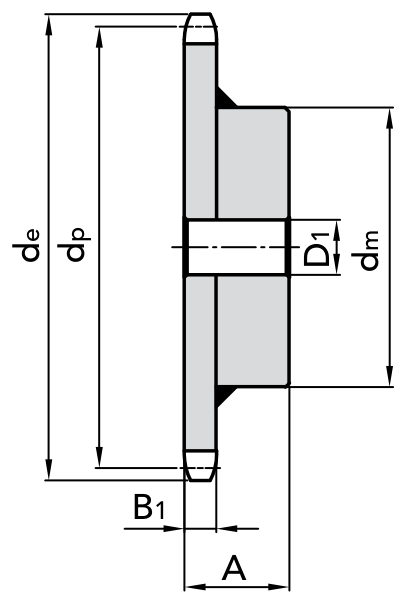

Code	Z	de	dp	D1	dm	A	Weight
`14994008`	`8`	`283` mm	`261.31` mm	`30` mm	`110` mm	`65` mm	`11.97` kg
`14994009`	`9`	`314` mm	`292.4` mm	`30` mm	`110` mm	`65` mm	`14.04` kg
`14994010`	`10`	`345` mm	`323.61` mm	`30` mm	`110` mm	`65` mm	`16.35` kg
`14994011`	`11`	`378` mm	`354.95` mm	`30` mm	`110` mm	`65` mm	`18.82` kg
`14994012`	`12`	`409` mm	`386.4` mm	`30` mm	`110` mm	`65` mm	`21.58` kg
`14994014`	`14`	`473` mm	`449.4` mm	`30` mm	`110` mm	`65` mm	`28.14` kg
`14994016`	`16`	`536` mm	`512.6` mm	`30` mm	`133` mm	`70.6` mm	`33.87` kg
`14994020`	`20`	`663` mm	`639.2` mm	`30` mm	`133` mm	`70.6` mm	`48.5` kg
