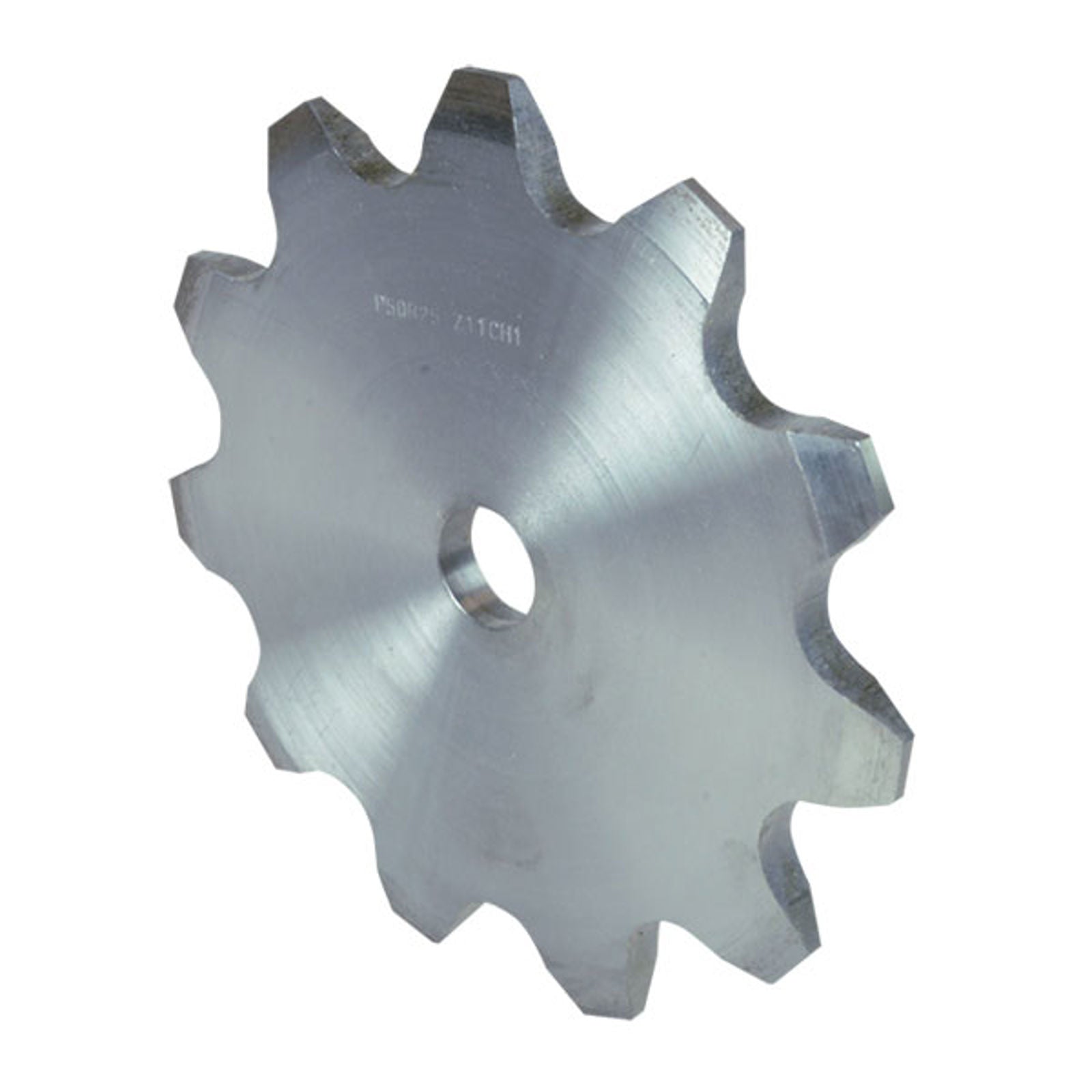

Chiaravalli Sprocket for Conveyor Chains P50 Roller 25 (welded hub)
Chiaravalli

Sprocket for Conveyor Chains P50 Roller 25 (welded hub)

Chain Sprockets

Chain sprocket for P50 conveyor/elevator chain, roller Ø 25 mm — realized with welded hub.

  • Chain pitch: 50 mm
  • Chain inner width: 11.5 mm
  • Roller Ø: 25 mm
  • Plate thickness B1: 10.5 mm

Product Configuration

Select a row to add it to your quote

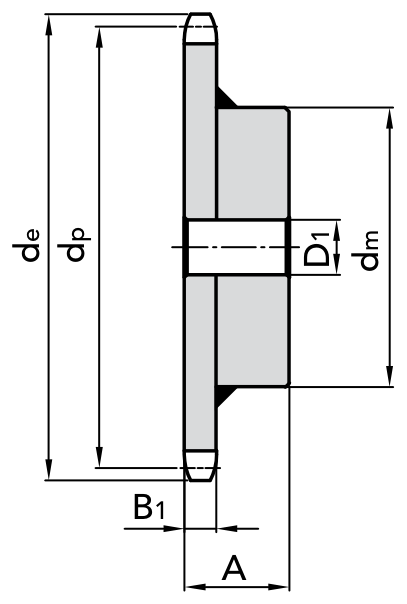

Code ZdedpD1dmA Weight CAD
14502506 6 115 mm 100 mm 20 mm 60 mm 40.5 mm 1.11 kg
14502507 7 132.7 mm 115.24 mm 20 mm 60 mm 40.5 mm 1.37 kg
14502508 8 148.1 mm 130.6 mm 20 mm 60 mm 40.5 mm 1.55 kg
14502509 9 163.7 mm 146.2 mm 20 mm 60 mm 40.5 mm 1.89 kg
14502510 10 179.3 mm 161.85 mm 25 mm 90 mm 43.3 mm 3.1 kg
14502511 11 195 mm 177.5 mm 25 mm 90 mm 43.3 mm 3.44 kg
14502512 12 211 mm 193.2 mm 25 mm 90 mm 43.3 mm 4.79 kg
14502513 13 226.4 mm 208.95 mm 30 mm 90 mm 43.3 mm 4.17 kg
14502514 14 242.2 mm 224.7 mm 30 mm 90 mm 43.3 mm 4.63 kg
14502515 15 257.9 mm 240.45 mm 30 mm 90 mm 43.3 mm 5.09 kg
14502516 16 273.8 mm 456.3 mm 30 mm 110 mm 55.4 mm 8.26 kg
14502517 17 289.5 mm 272.05 mm 30 mm 110 mm 55.4 mm 9.1 kg
14502518 18 305.4 mm 287.95 mm 30 mm 110 mm 55.4 mm 9.26 kg
14502520 20 337.1 mm 319.6 mm 30 mm 110 mm 55.4 mm 10.42 kg
14502521 21 352.9 mm 335.45 mm 30 mm 110 mm 55.4 mm 11.71 kg
14502524 24 400 mm 383.05 mm 30 mm 110 mm 55.4 mm 13.0 kg
14502525 25 416.4 mm 398.95 mm 30 mm 110 mm 55.4 mm 13.98 kg
14502526 26 432.3 mm 414.8 mm 30 mm 133 mm 61.1 mm 15.2 kg
14502527 27 448.2 mm 430.7 mm 30 mm 133 mm 61.1 mm 17.03 kg
14502528 28 464 mm 446.55 mm 30 mm 133 mm 61.1 mm 18.62 kg
14502530 30 495.8 mm 478.35 mm 30 mm 133 mm 61.1 mm 20.29 kg
14502538 38 622.9 mm 605.45 mm 30 mm 133 mm 61.1 mm 26.97 kg
