Chiaravalli Sprocket for Conveyor Chains P50 Roller 31 (welded hub)
Chiaravalli

Sprocket for Conveyor Chains P50 Roller 31 (welded hub)

Chain Sprockets

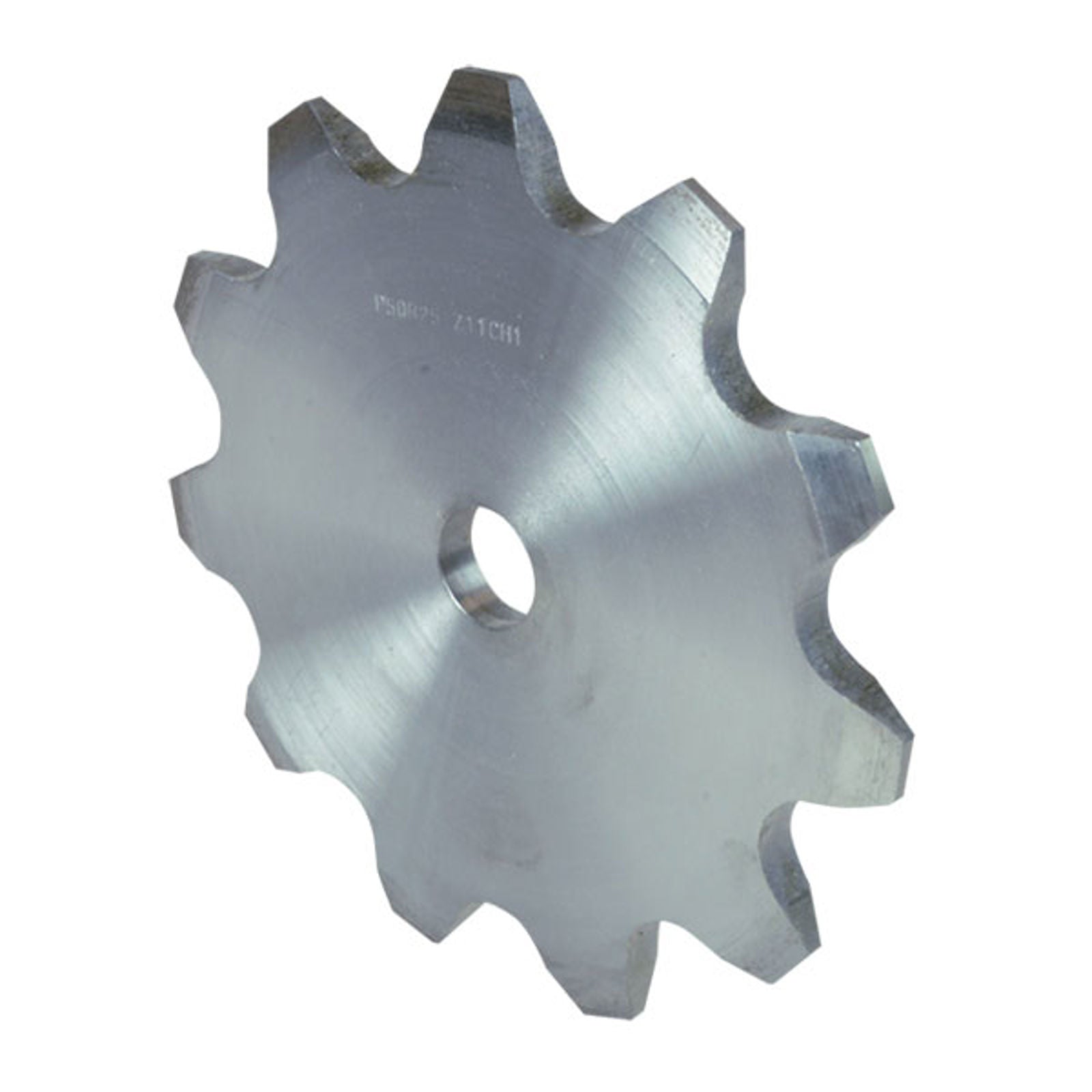

Chain sprocket for P50 conveyor/elevator chain, roller Ø 31 mm — realized with welded hub.

  • Chain pitch: 50 mm
  • Chain inner width: 15 mm
  • Roller Ø: 31 mm
  • Plate thickness B1: 13.8 mm

Product Configuration

Select a row to add it to your quote

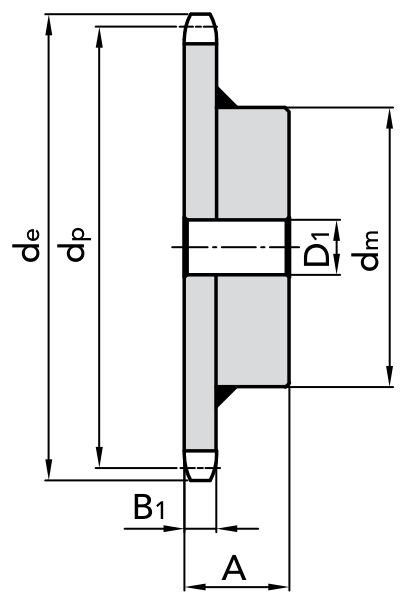

Code ZdedpD1dmA Weight CAD
14503106 6 116.2 mm 100 mm 20 mm 60 mm 43.8 mm 1.18 kg
14503107 7 133.8 mm 115.24 mm 20 mm 60 mm 43.8 mm 1.44 kg
14503108 8 152.3 mm 130.6 mm 20 mm 60 mm 43.8 mm 1.72 kg
14503109 9 167.9 mm 146.2 mm 20 mm 60 mm 43.8 mm 2.05 kg
14503110 10 183.5 mm 161.85 mm 25 mm 90 mm 46.6 mm 4.4 kg
14503111 11 199.2 mm 177.5 mm 25 mm 90 mm 46.6 mm 3.8 kg
14503112 12 212 mm 193.2 mm 25 mm 90 mm 46.6 mm 4.3 kg
14503113 13 230.6 mm 208.95 mm 30 mm 90 mm 46.6 mm 4.78 kg
14503114 14 246.4 mm 224.7 mm 30 mm 90 mm 46.6 mm 5.37 kg
14503115 15 262.1 mm 240.45 mm 30 mm 90 mm 46.6 mm 5.98 kg
14503116 16 278 mm 256.3 mm 30 mm 110 mm 58.7 mm 9.05 kg
14503118 18 309.6 mm 287.95 mm 30 mm 110 mm 58.7 mm 10.3 kg
14503119 19 325.5 mm 303.8 mm 30 mm 110 mm 58.7 mm 11.1 kg
14503120 20 341.3 mm 319.6 mm 30 mm 110 mm 58.7 mm 11.9 kg
14503122 22 373 mm 351.35 mm 30 mm 110 mm 58.7 mm 13.54 kg
14503123 23 388.9 mm 367.2 mm 30 mm 110 mm 58.7 mm 14.38 kg
14503124 24 404.7 mm 383.05 mm 30 mm 110 mm 58.7 mm 15.35 kg
14503125 25 419.7 mm 398.95 mm 30 mm 110 mm 58.7 mm 16.4 kg
14503126 26 436.5 mm 414.8 mm 30 mm 133 mm 64.4 mm 18.81 kg
14503127 27 452.4 mm 430.7 mm 30 mm 133 mm 64.4 mm 19.0 kg
14503128 28 468.2 mm 446.55 mm 30 mm 133 mm 64.4 mm 21.0 kg
14503132 32 531.8 mm 510.1 mm 30 mm 133 mm 64.4 mm 25.93 kg
14503135 35 579.5 mm 557.8 mm 30 mm 133 mm 64.4 mm 28.4 kg
14503138 38 622 mm 605.45 mm 30 mm 133 mm 64.4 mm 32.1 kg
